Test E: Left Front Power Window Does Not Operate/All Other Power Windows Operate

For test procedure, refer to illustration. See Fig 1.

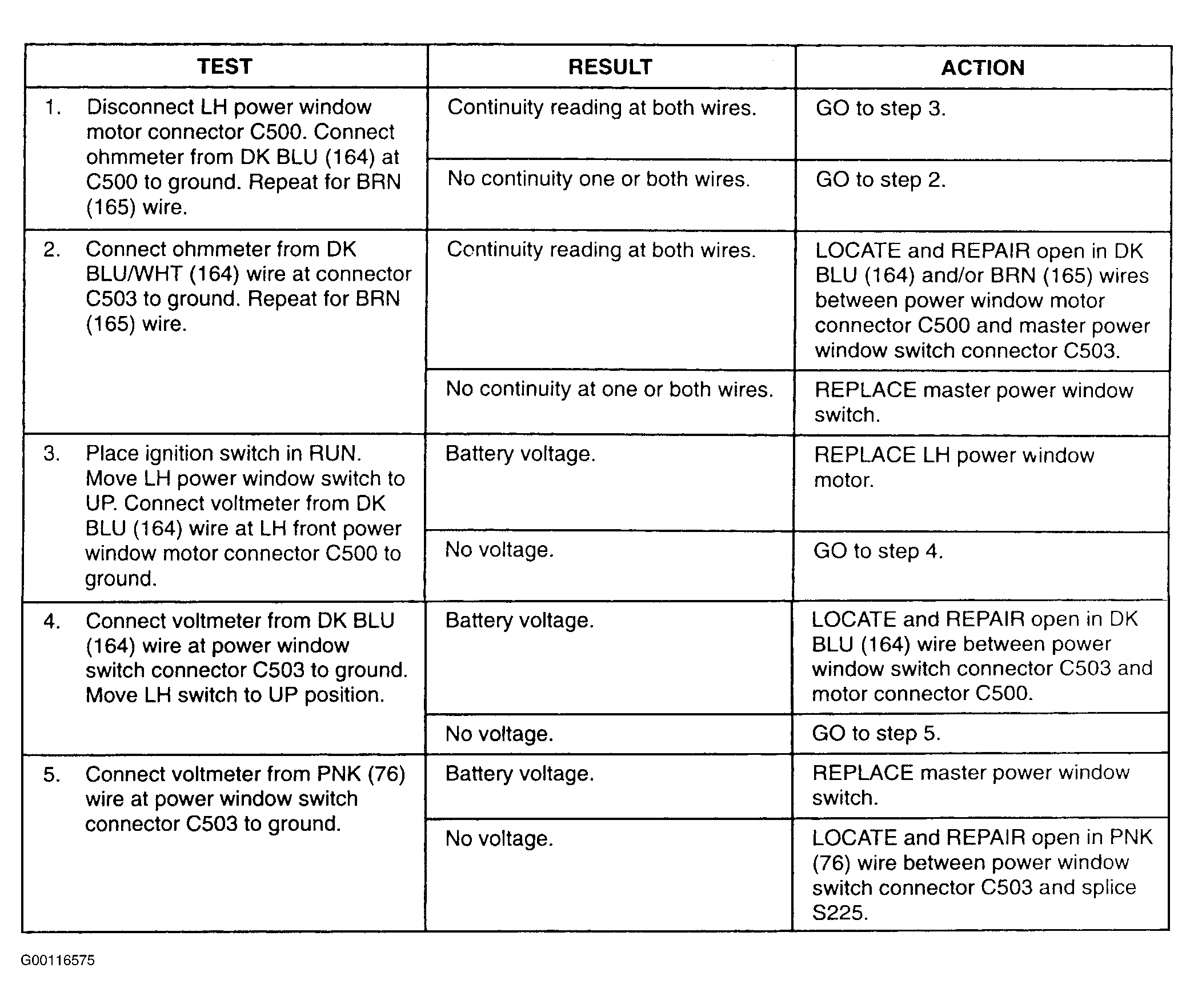

Fig 1: Test E - Left Front Power Window Does Not Operate/All Other Power Windows Operate
G00116575Courtesy of GENERAL MOTORS CORP.
