Home >> Oldsmobile >> 1993 >> Bravada >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test D: Left Rear Power Window Does Not Operate From Either Switch/Left Front Power Window Operates

Test D: Left Rear Power Window Does Not Operate From Either Switch/Left Front Power Window Operates

For test procedure, refer to illustration. See Fig 1.

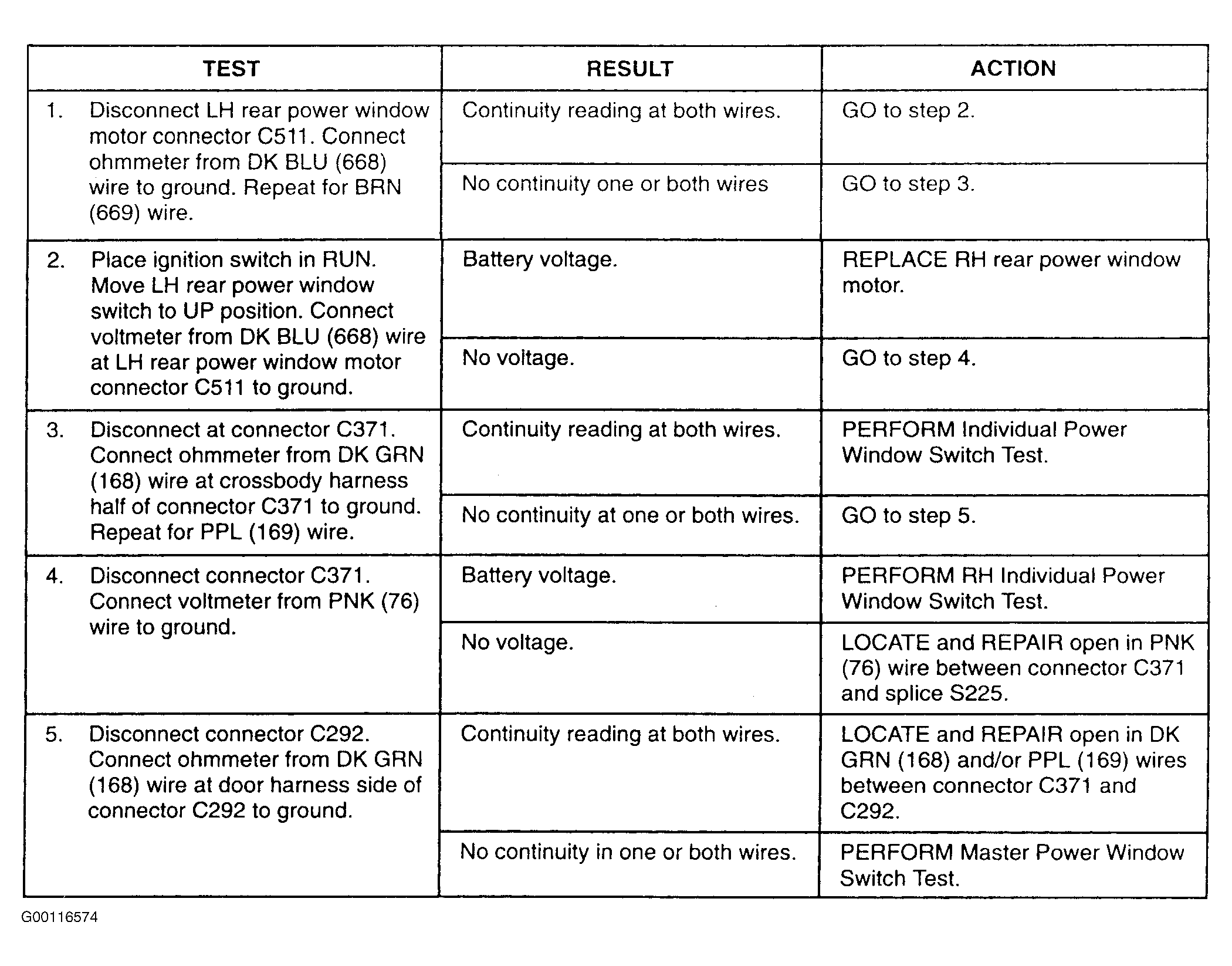

Fig 1: Test D - Left Rear Power Window Does Not Operate From Either Switch/Left Front Power Window Operates
G00116574Courtesy of GENERAL MOTORS CORP.
