Test C: Right Rear Power Window Does Not Operate From Either Switch/Left Front Power Window Operates

For test procedure, refer to illustration. See Fig 1.

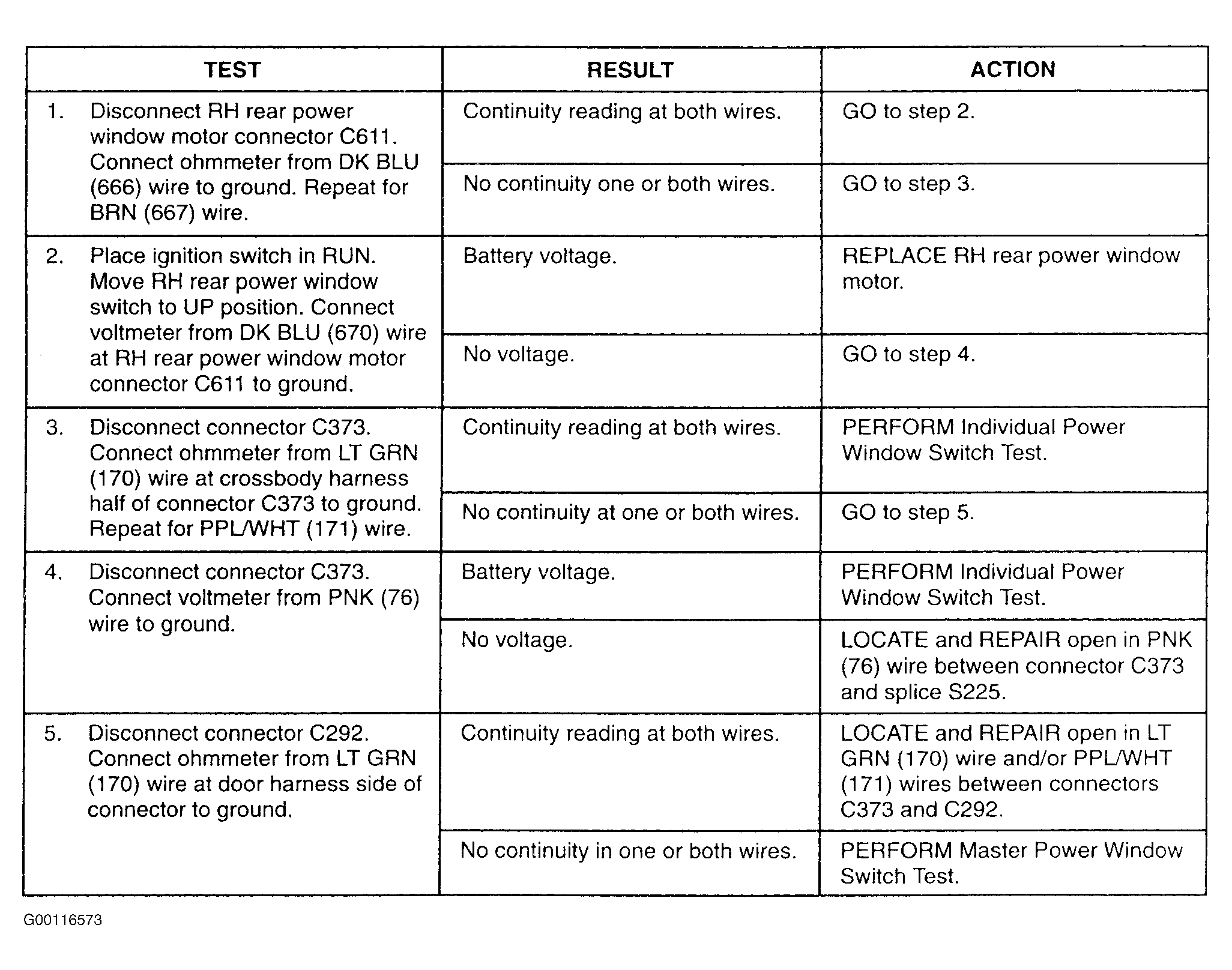

Fig 1: Test C - Right Rear Power Window Does Not Operate From Either Switch/Left Front Power Window Operates
G00116573Courtesy of GENERAL MOTORS CORP.
