Test B: Right Front Power Window Does Not Operate From Either Switch/Left Front Power Window Operates

For test procedure, refer to illustration. See Fig 1.

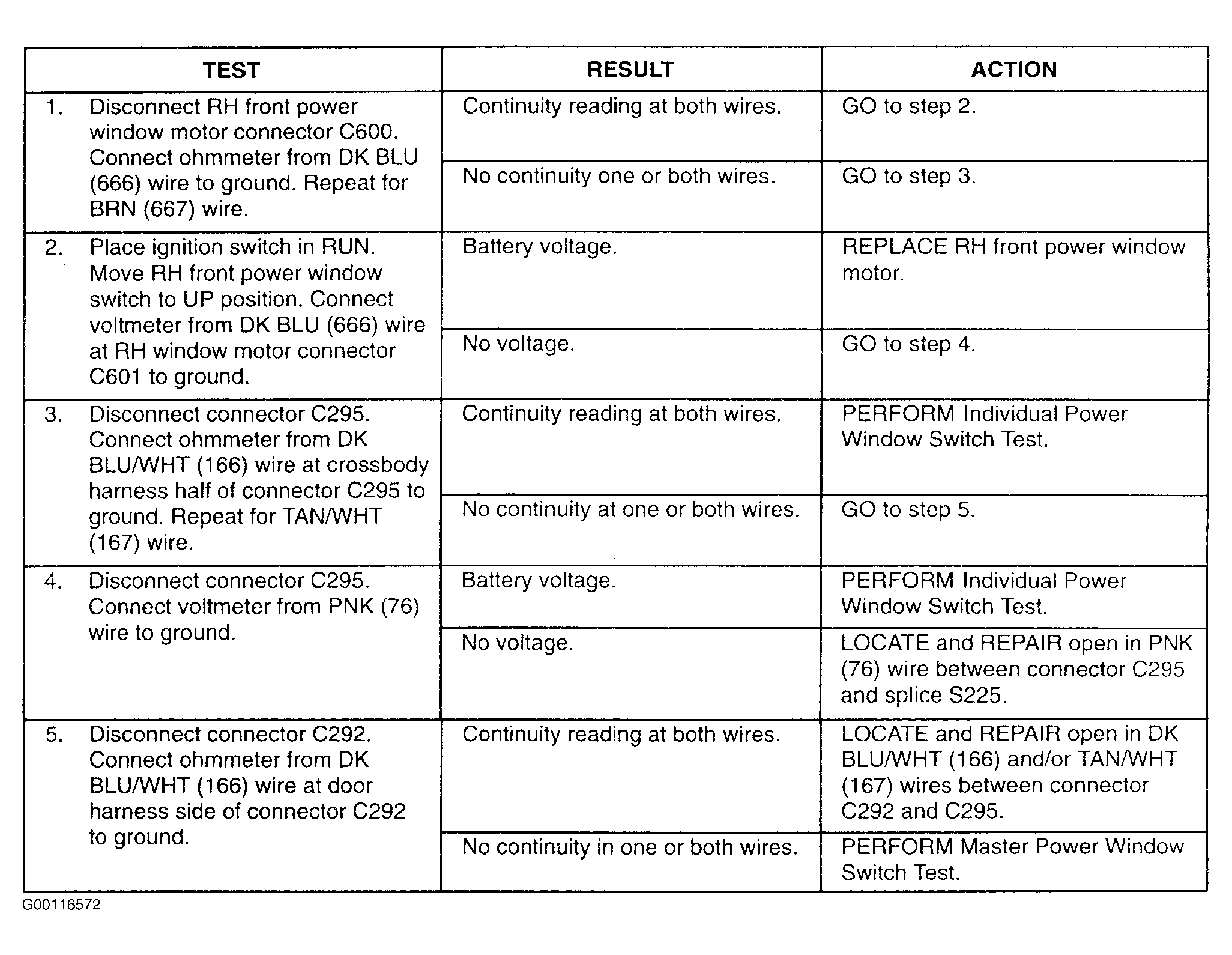

Fig 1: Test B - Right Front Power Window Does Not Operate From Either Switch/Left Front Power Window Operates
G00116572Courtesy of GENERAL MOTORS CORP.
