Home >> Oldsmobile >> 1993 >> Bravada >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test A: Power Windows Do Not Operate

Test A: Power Windows Do Not Operate

For test procedure, refer to illustration. See Fig 1.

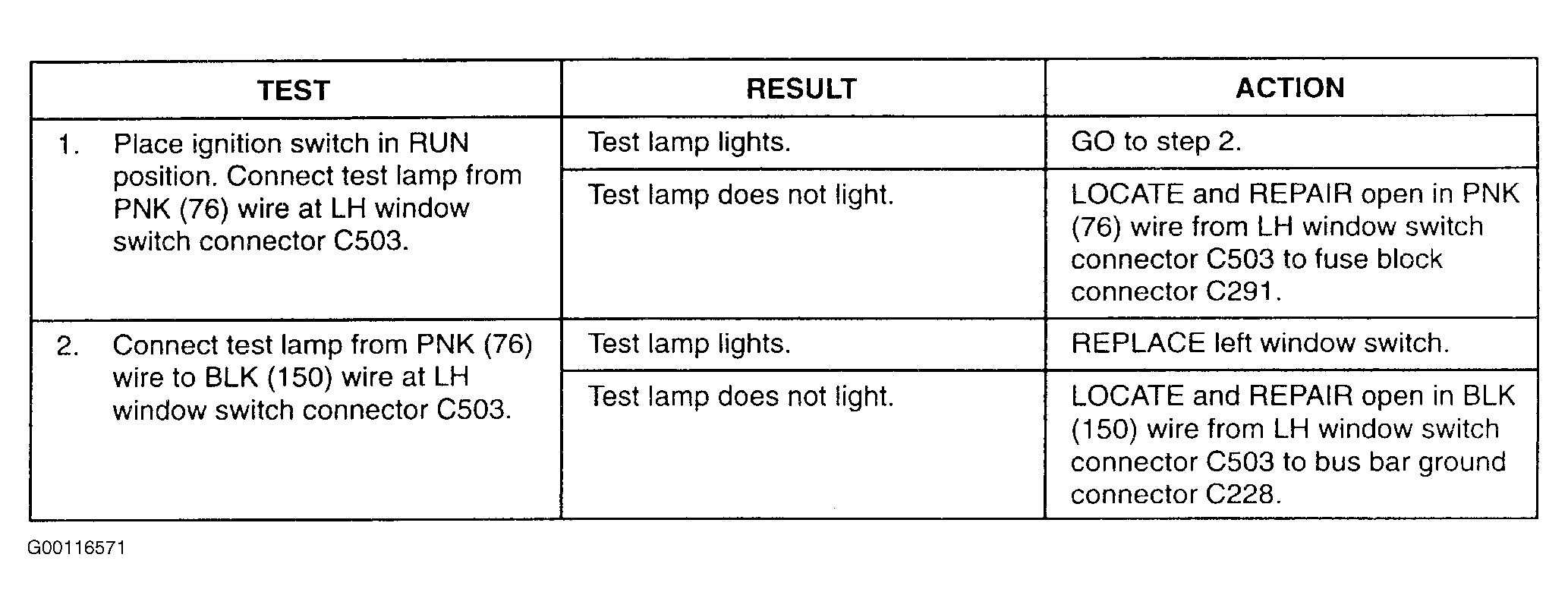

Fig 1: Test A - Power Windows Do Not Operate
G00116571Courtesy of GENERAL MOTORS CORP.
