Removal & Installation: Armrest: Removal

1. Remove screws (58) securing the armrest to the door trim. See Fig 1.
2. Slide the armrest toward the rear of the door, and then lift the armrest from the door. Remove armrest from door trim.

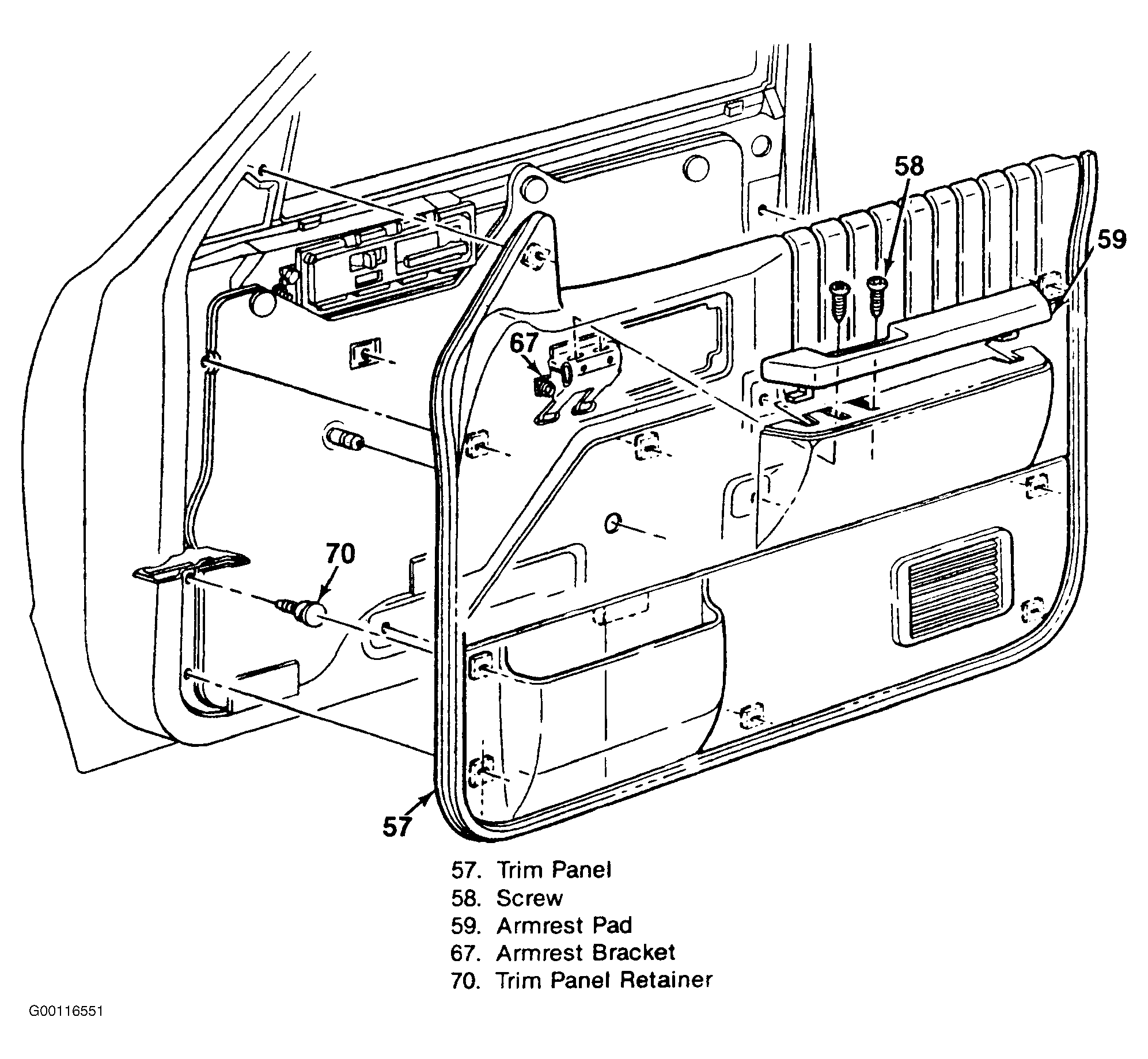

Fig 1: Removing Armrest

Courtesy of GENERAL MOTORS CORP.
