Test C: Only ENDGATE Release Function Does Not Operate

To perform this test, refer to illustration. See Fig 1 .

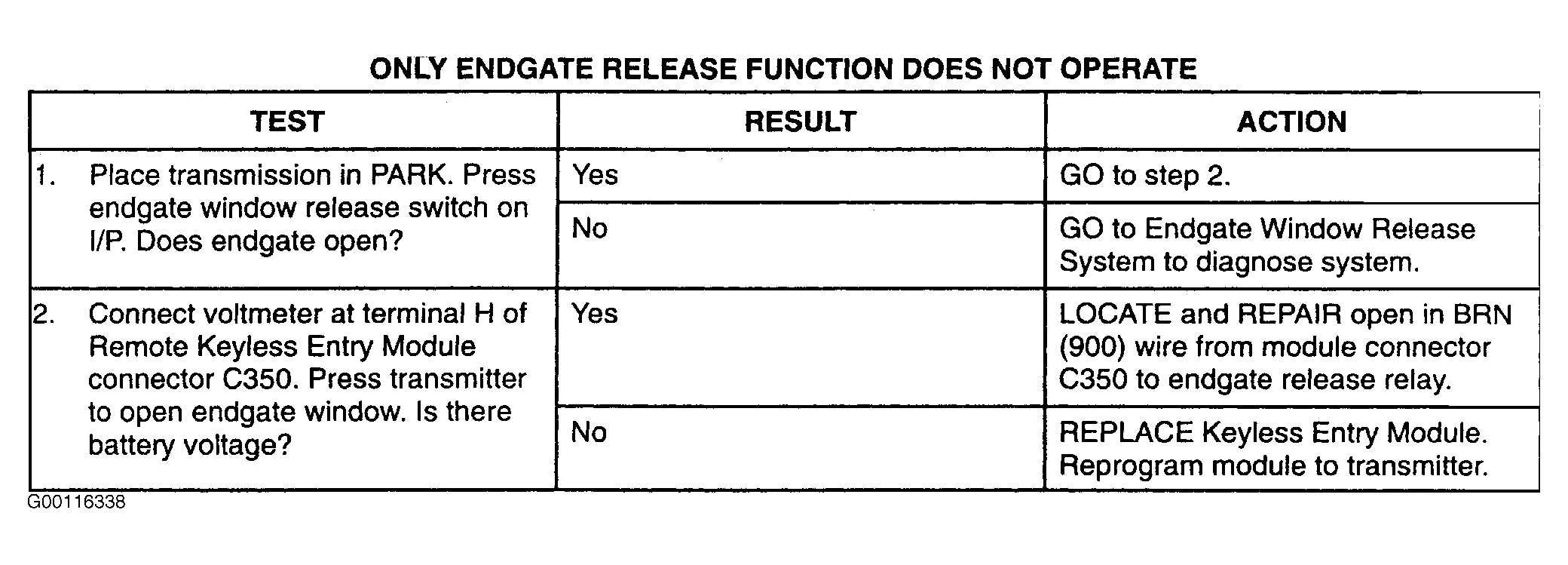

Fig 1: Testing Only Endgate Release Function Does Not Operate
G00116338Courtesy of GENERAL MOTORS CORP.
