Test A: Keyless Entry Does Not Operate

To perform this test, refer to illustration. See Fig 1 .

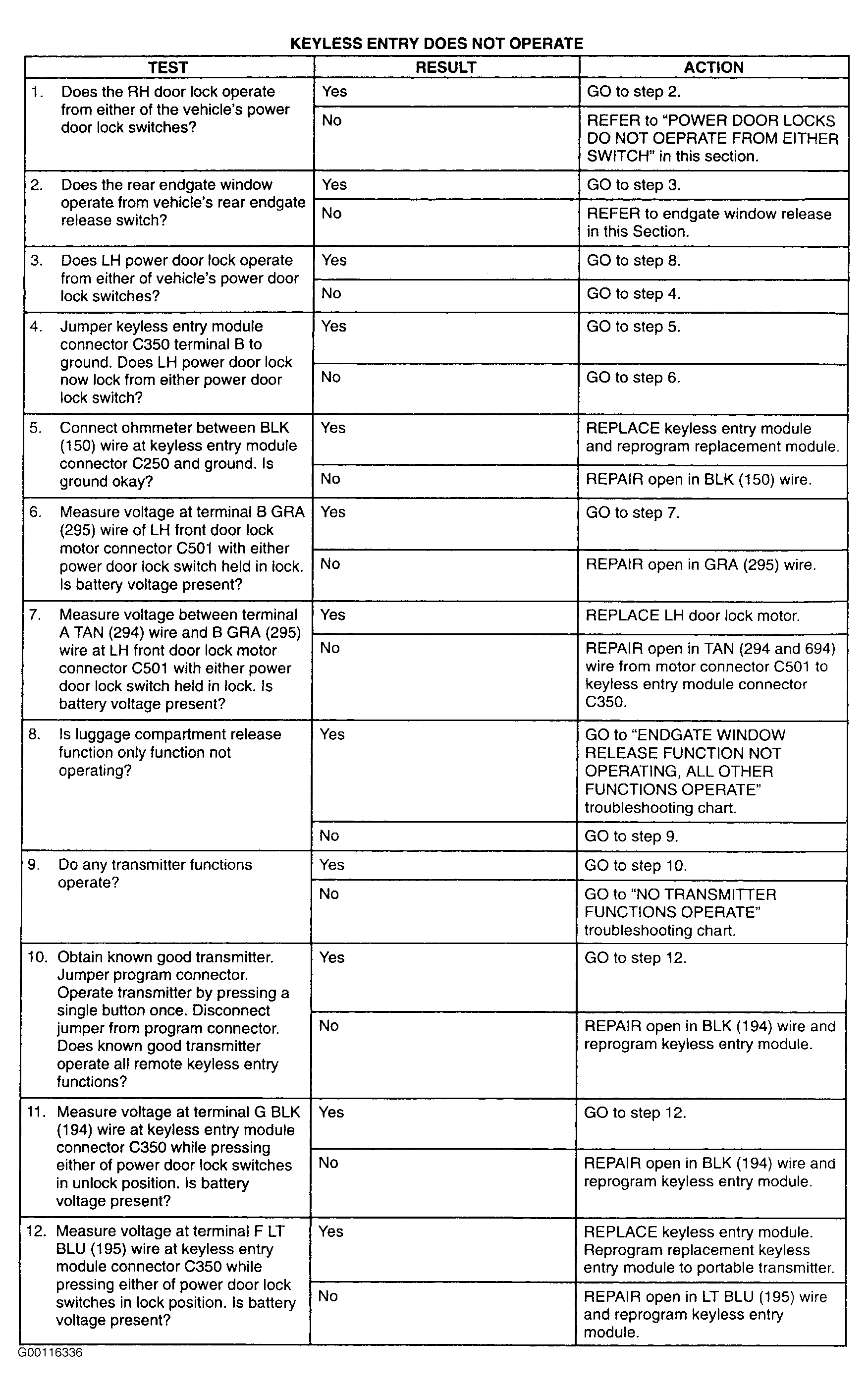

Fig 1: Testing Keyless Entry Does Not Operate

G00116336

Courtesy of GENERAL MOTORS CORP.
