Abs Light Driver Module: Removal

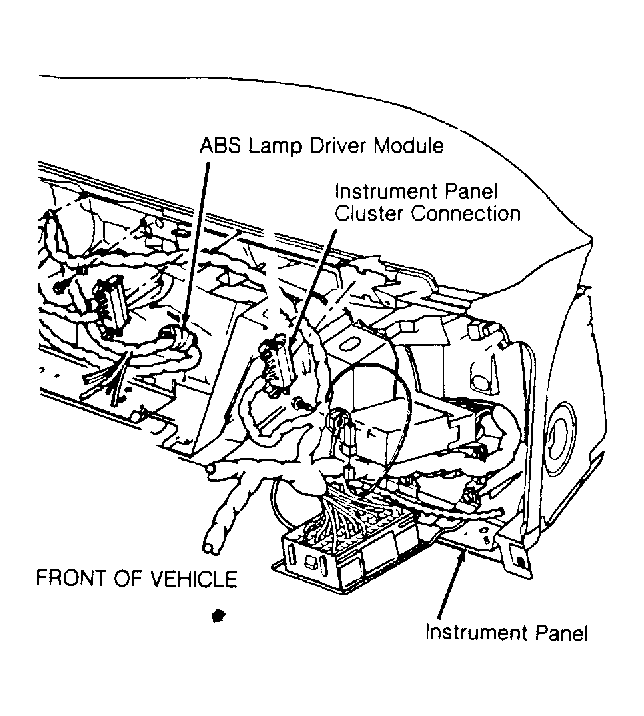

- Turn ignition off. Disconnect negative battery cable. Remove insulator panel below steering column. On Achieva, Grand Am and Skylark, open connector located on left side of instrument panel, and slide light driver circuit board out of connector. See Figure.

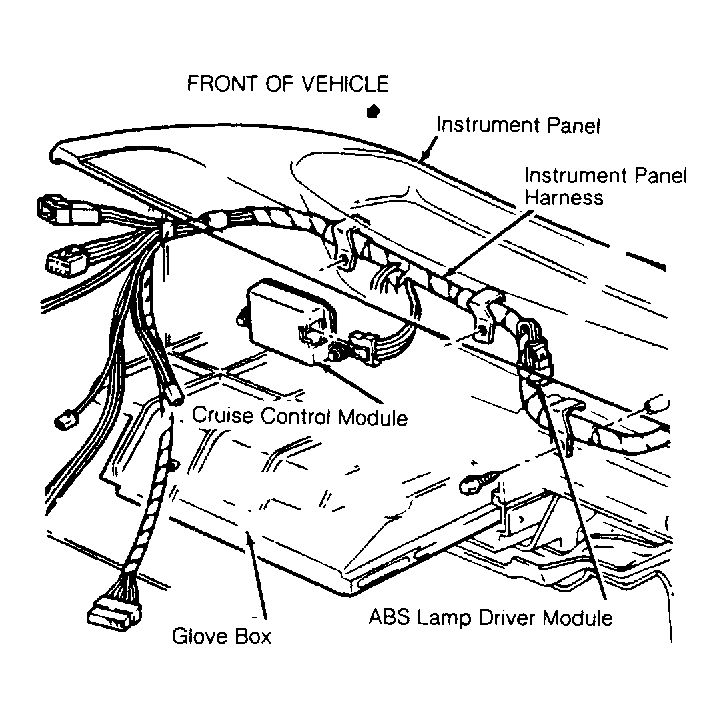

- On Beretta and Corsica, remove glove box. Light driver module is located above cruise control module, on right side of instrument panel. Module is taped to instrument panel harness. See Figure.
- On Cavalier and Sunbird, light driver module is part of instrument panel cluster. If light driver module is to be serviced, instrument panel cluster must be replaced.
