Achieva SL, 4D Sedan, 2.3 D
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Wiring Diagrams
Wiring Diagrams

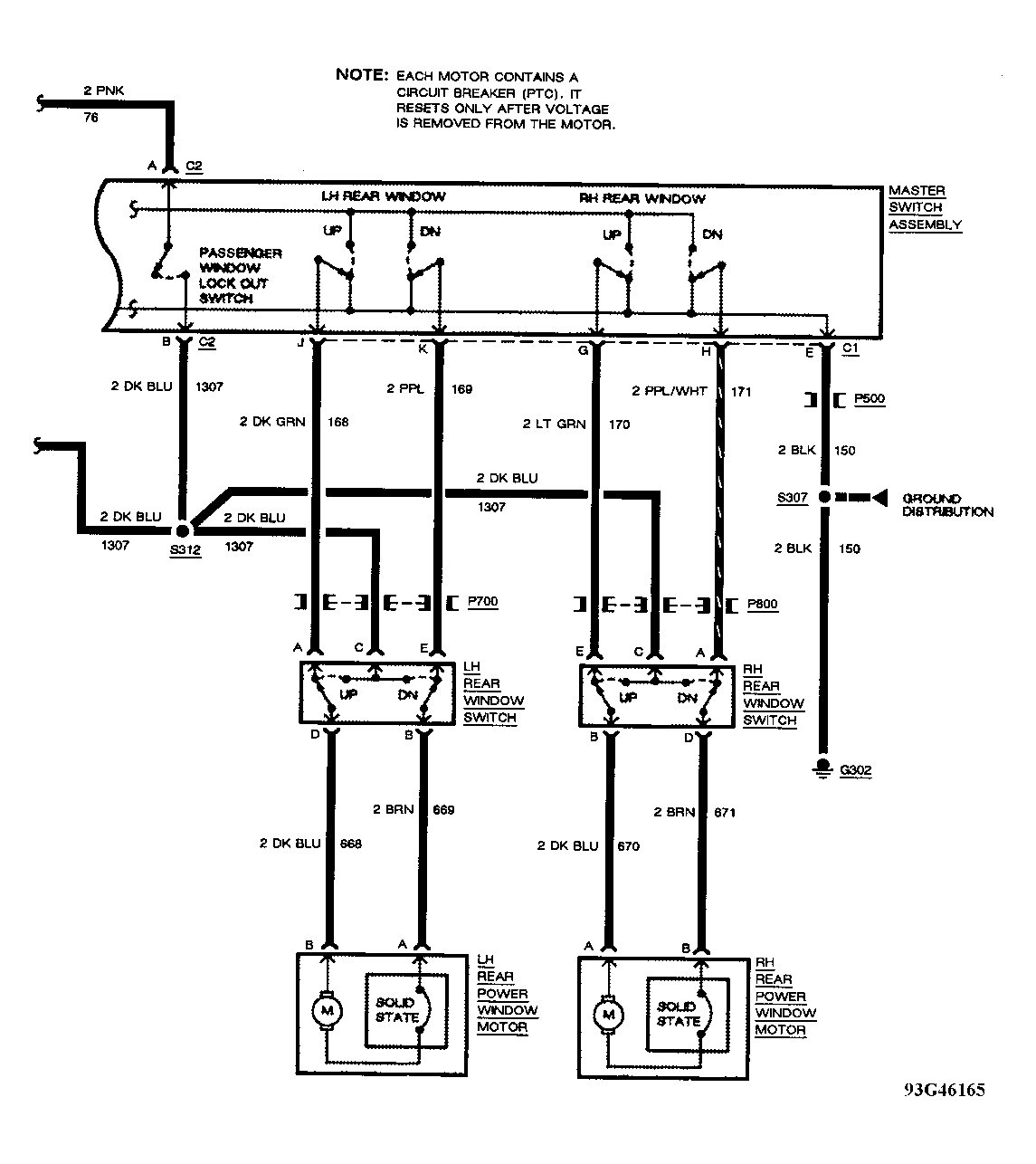

Fig 1: Power Windows Wiring Diagram (Achieva & Skylark - 1 Of 3)
Courtesy of GENERAL MOTORS CORP.

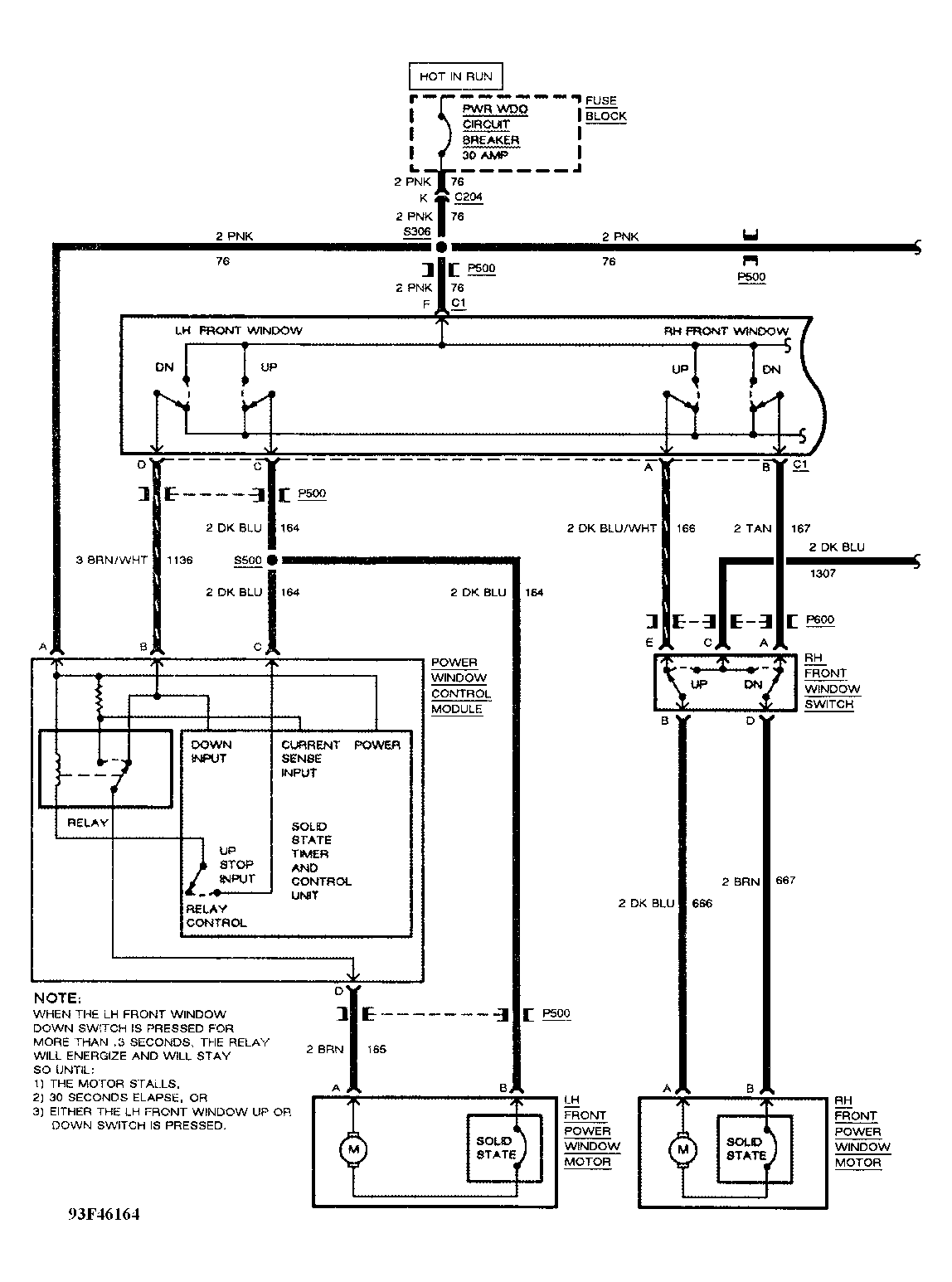

Fig 2: Power Windows Wiring Diagram (Achieva & Skylark - 2 Of 3)
Courtesy of GENERAL MOTORS CORP.

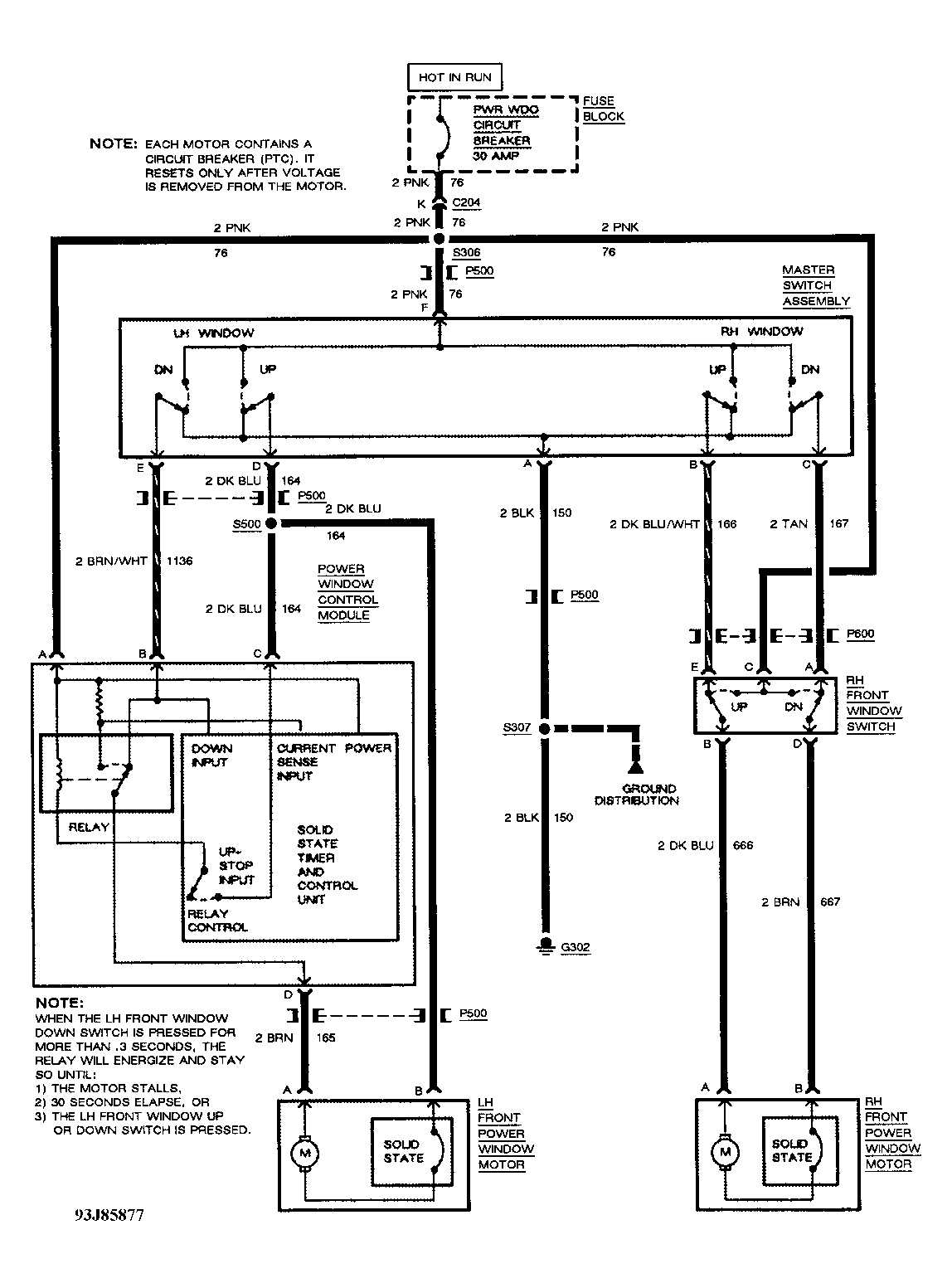

Fig 3: Power Windows Wiring Diagram (Achieva & Skylark - 3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
