BCM Connector Pin Identification

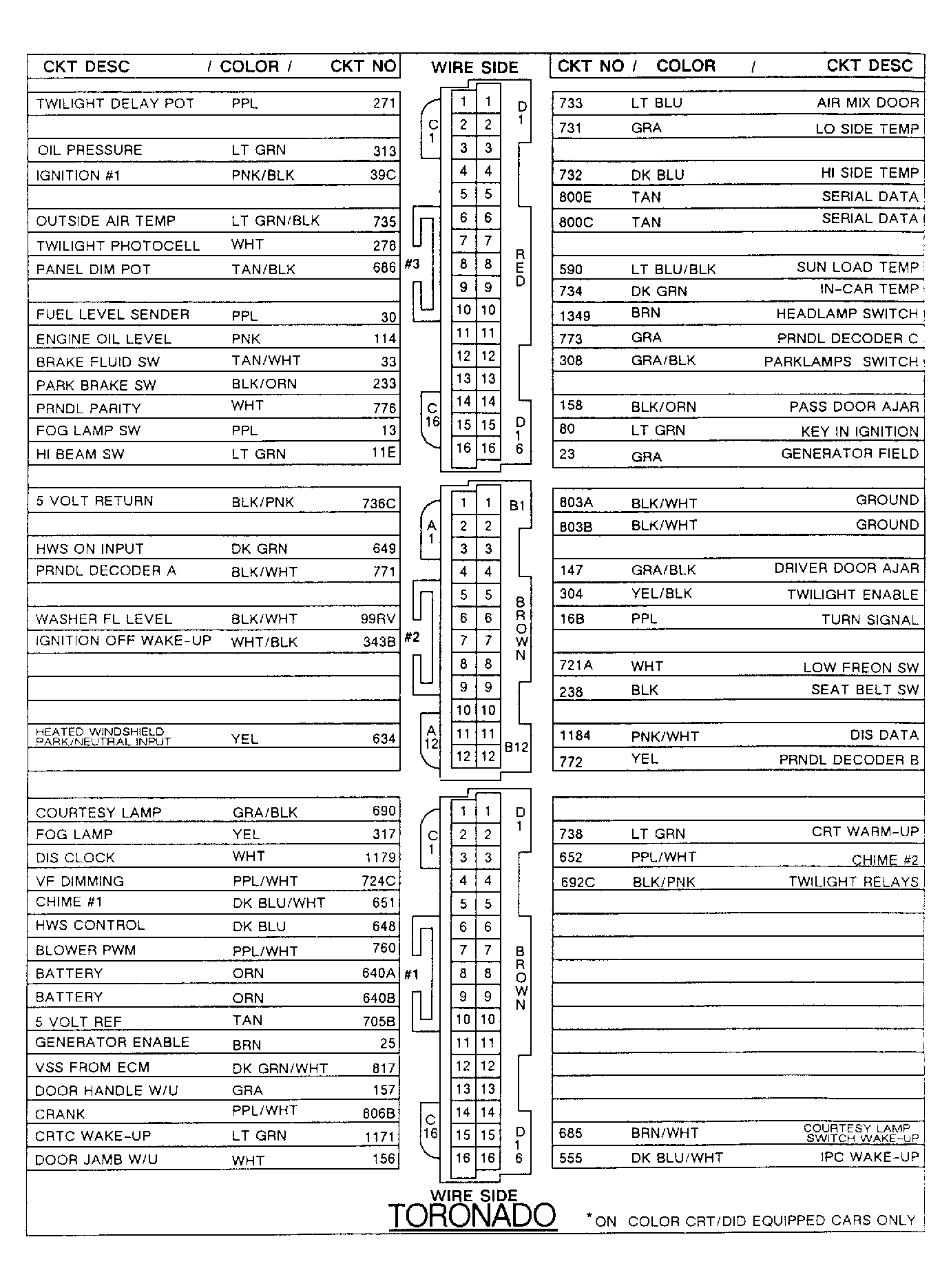

Fig 1: Locating BCM Electrical Connector Pins (Wire Side View)

G92C04103

Courtesy of GENERAL MOTORS CORP.
