Test F: Window Switch Power Test
Test F: Window Switch Power Test
For testing procedure, see
Fig 1
.

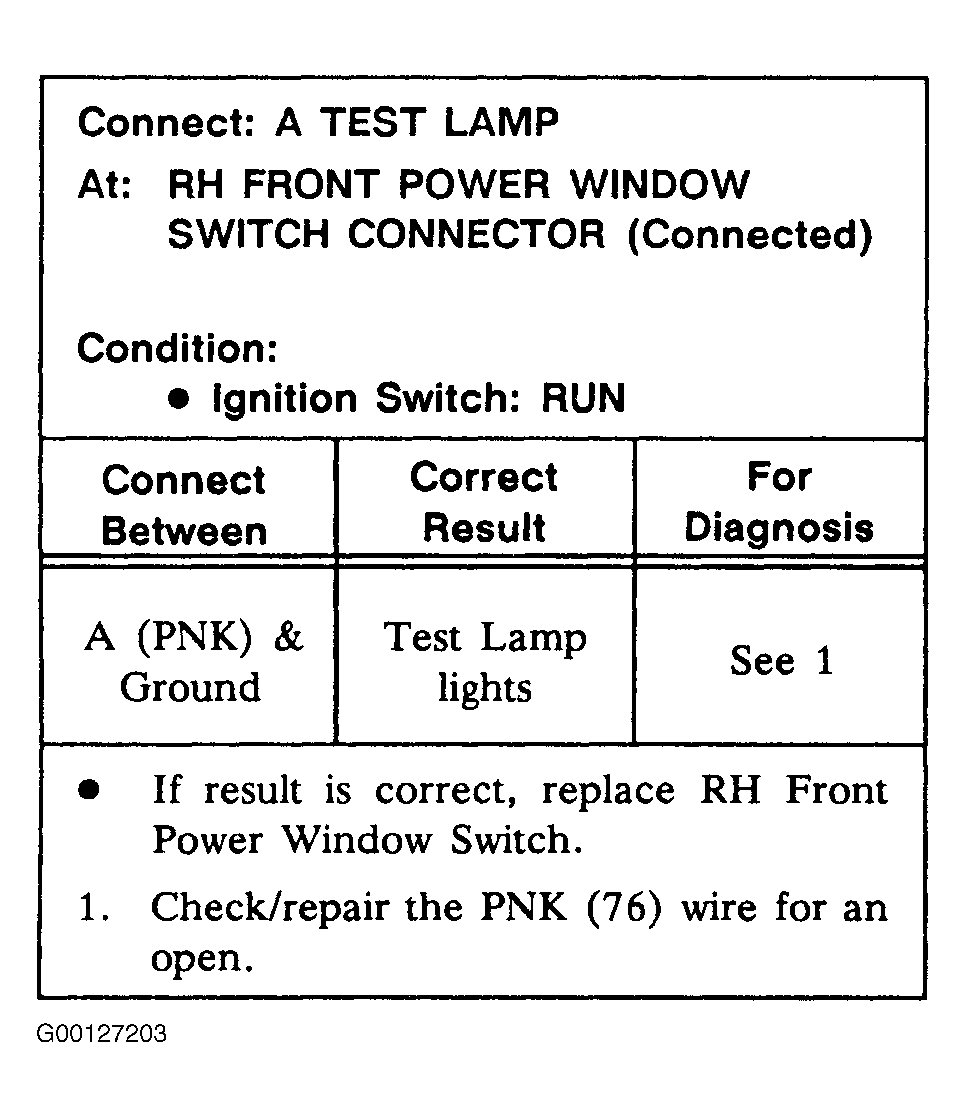

Fig 1: Test F: Window Switch Power Test
Courtesy of GENERAL MOTORS CORP.
