Home
>>
Oldsmobile
>>
1992
>>
Toronado Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
System Tests
>>
Test D: Window Switch Test
Test D: Window Switch Test
For testing procedure, see

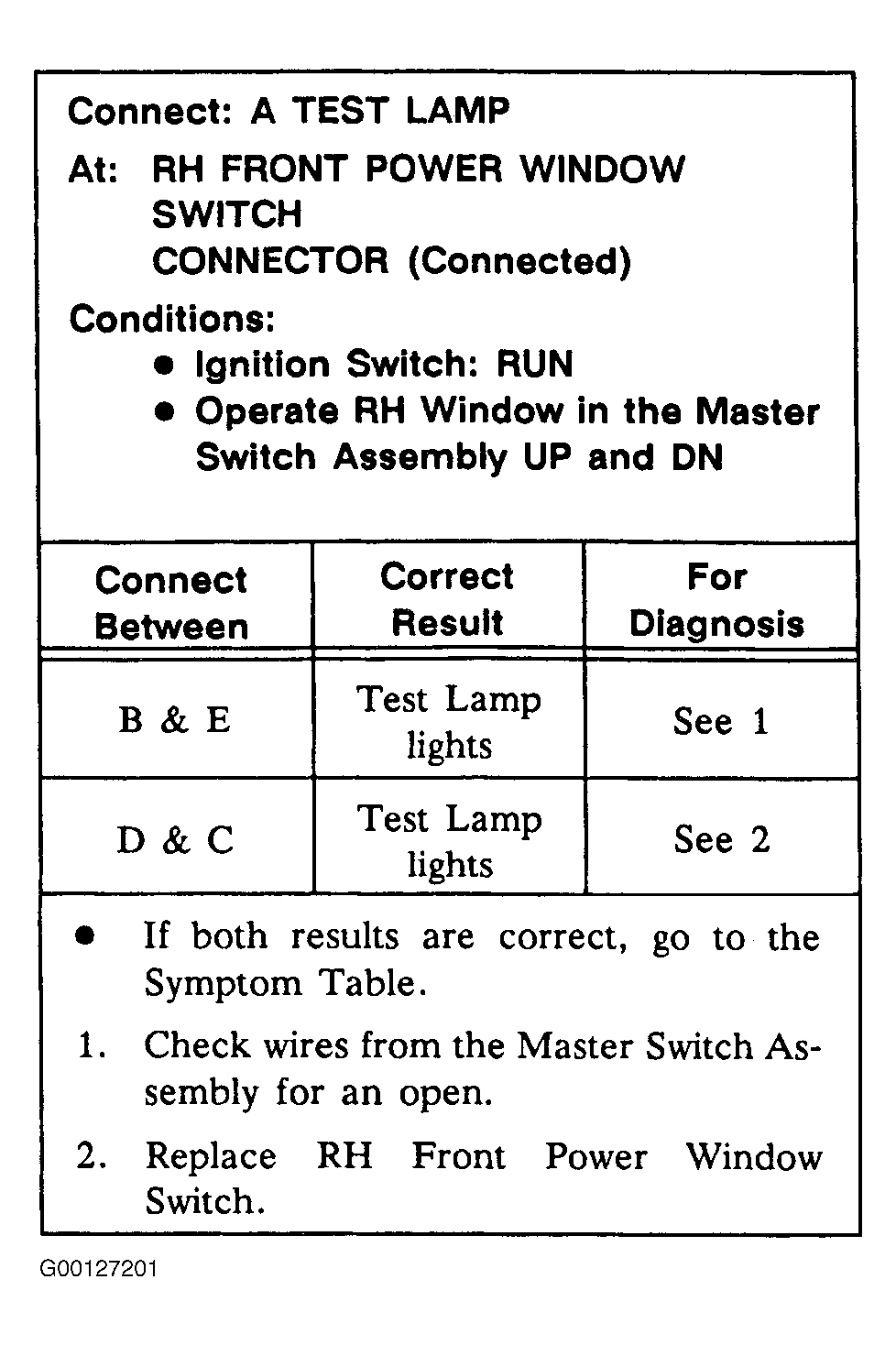

Fig 1
.
Fig 1: Test D: Window Switch Test
Courtesy of GENERAL MOTORS CORP.
