Headlamp Door Module: Installation

  1. Install headlamp door module. See Fig 1 .
  2. Install two electrical connectors from modules.
  3. Install windshield washer fluid bottle.
  4. Install relay center.
  5. Install Left front end sheet metal diagonal brace.

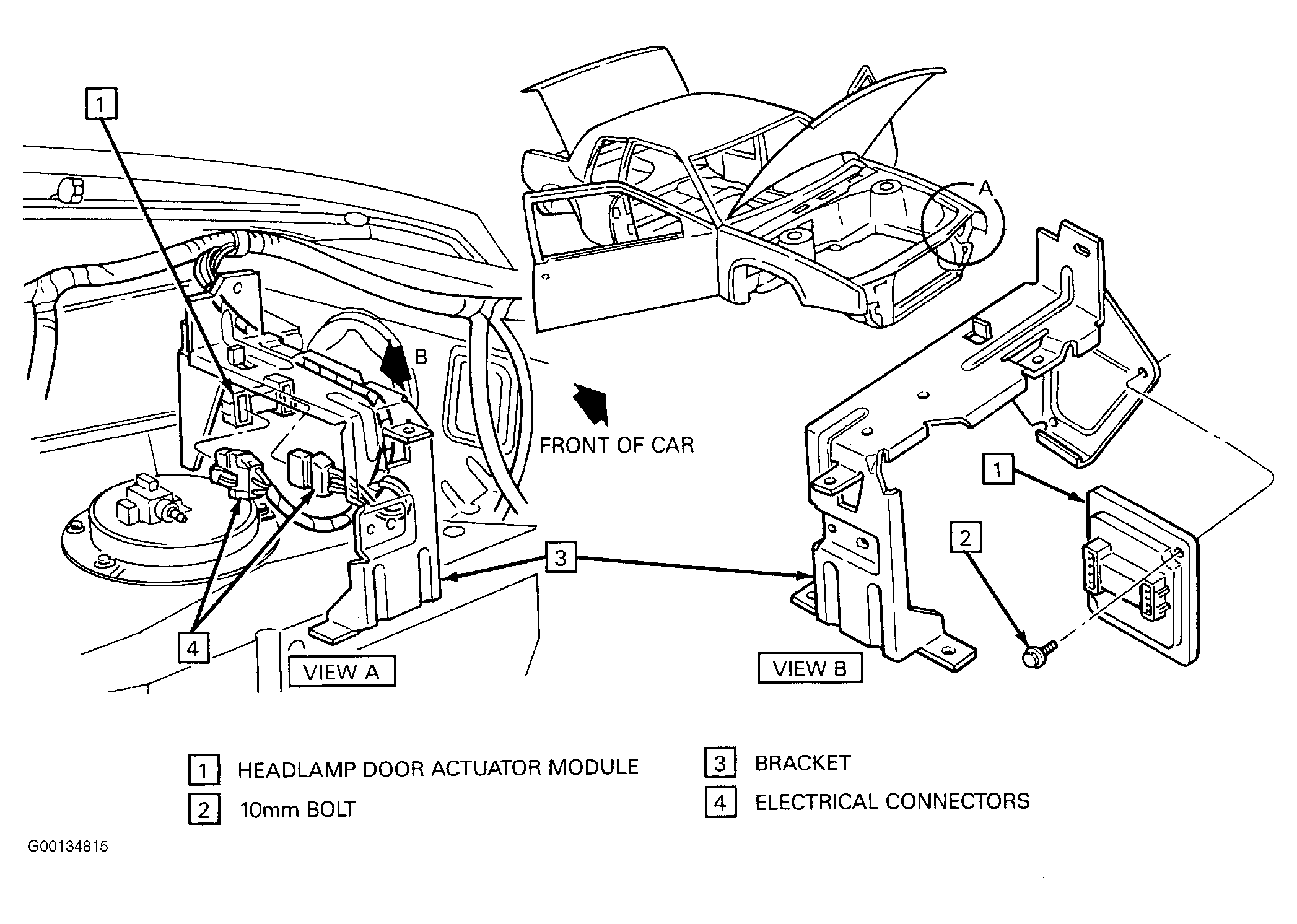

Fig 1: Removing & Installing Headlamp Door Actuator
G00134815Courtesy of GENERAL MOTORS CORP.
