Component Locations

COMPONENT LOCATIONS

Component Location
Body Computer Module (BCM) Behind right hand side of Instrument Panel, behind left hand side of Instrument Panel compartment. See Fig 1 .
Fuse Block Right hand side of Instrument Panel, left of Instrument Panel compartment. See Fig 2 .
Fusible Link K Right hand front of engine compartment, at Power Junction Block. See Fig 3 .
Headlight Door Module Left hand front corner of engine compartment, below Underhood Relay Center. See Fig 4 .
Headlight Doors Motor Center front of car, forward of hood latch. See Fig 5 .
Micro Relay Center #1 Behind right hand side of Instrument Panel, behind Instrument Panel compartment. See Fig 6 .
Underhood Relay Center Left hand front of engine compartment, behind headlights. See Fig 4 .
C102 (30 cavities) Left hand front of engine compartment, behind headlights. See Fig 7 .
C201 (116 cavities) Behind center of Instrument Panel, right of steering column. See Fig 8 .
G100 Right hand front corner of engine compartment, behind headlight forward of battery. See Fig 3 .
G102 Right hand front corner of engine compartment, behind headlight forward of battery. See Fig 3 .
P100 Behind left hand side of Instrument Panel, on dash. See Fig 7 .
S102 Forward lights harness, left hand front of engine compartment, near Underhood Relay Center. See Fig 9 .
S118 Forward lights harness, left of left hand headlights breakout. See Fig 9 .
S211 Dash harness, above steering column, in dash channel. See Fig 8 .
S241 Dash harness, above steering column, in dash channel. See Fig 8 .
S268 Dash harness, behind left hand side of Instrument Panel, right of steering column, in dash channel. See Fig 8 .

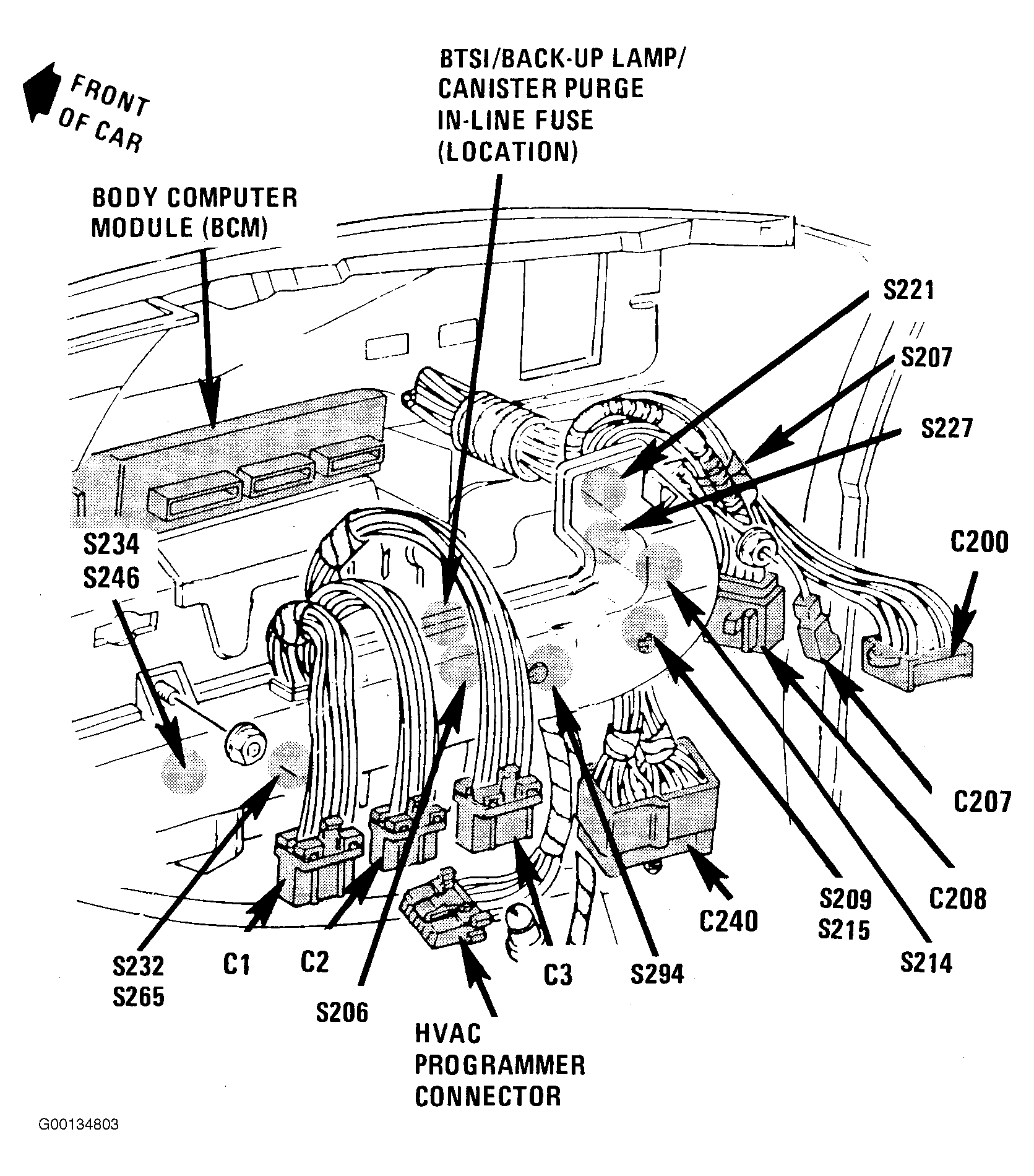

Fig 1: Locating Body Computer Module
G00134803Courtesy of GENERAL MOTORS CORP.

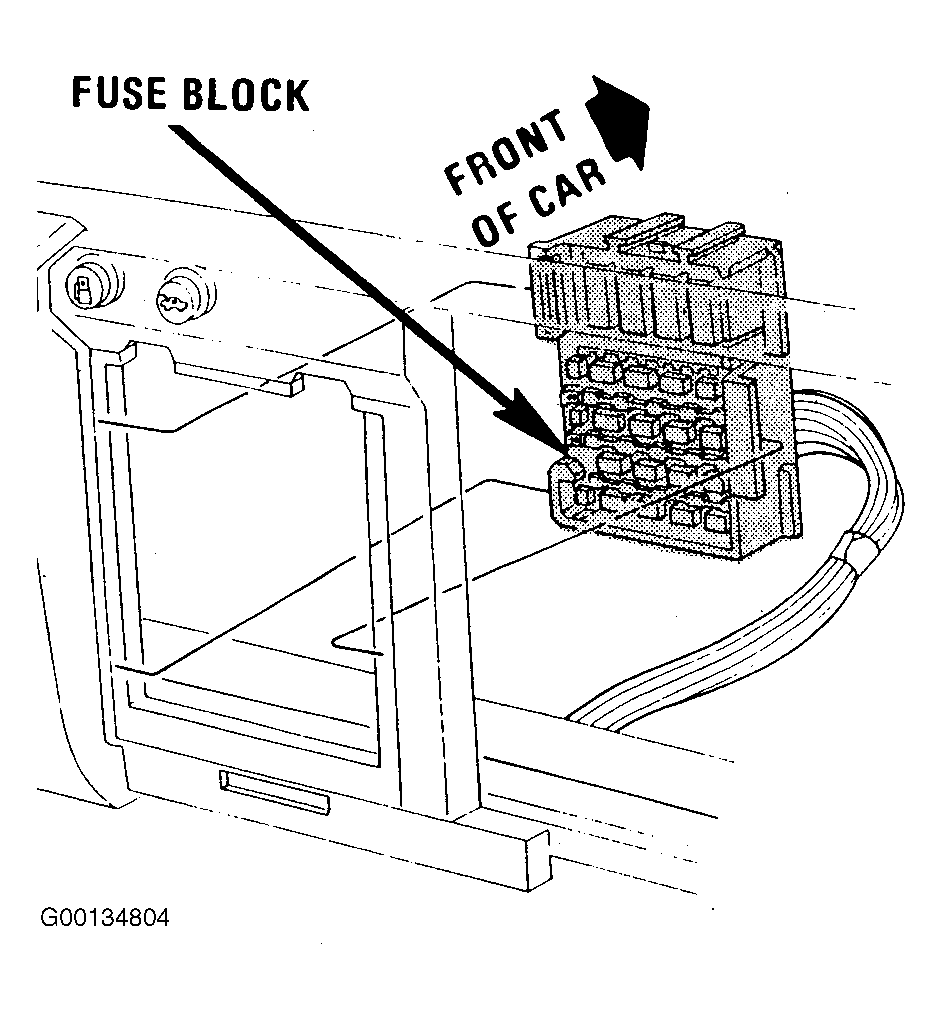

Fig 2: Locating Fuse Block
G00134804Courtesy of GENERAL MOTORS CORP.

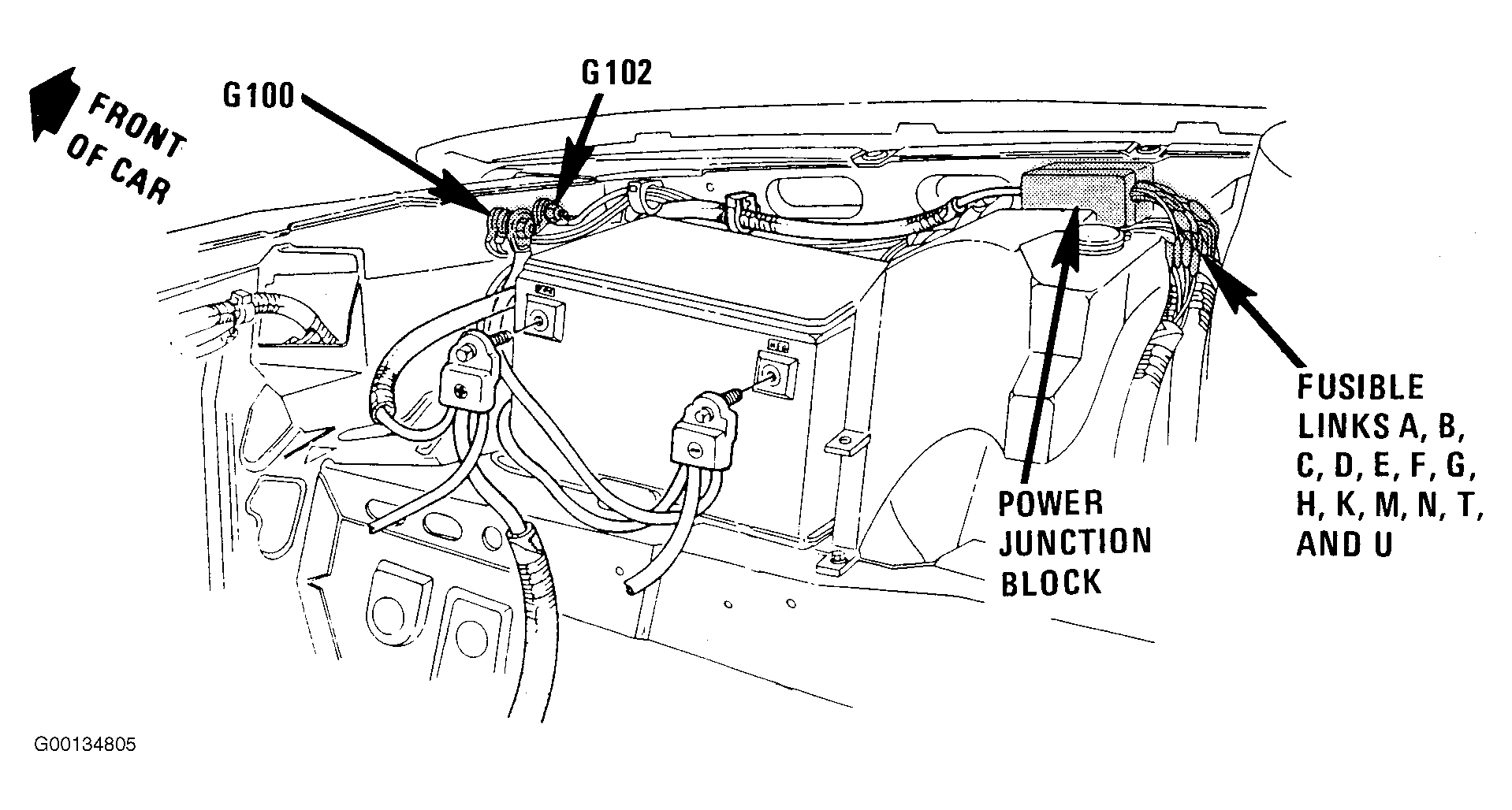

Fig 3: Locating Fusible Link K & Ground G100 & G102
G00134805Courtesy of GENERAL MOTORS CORP.

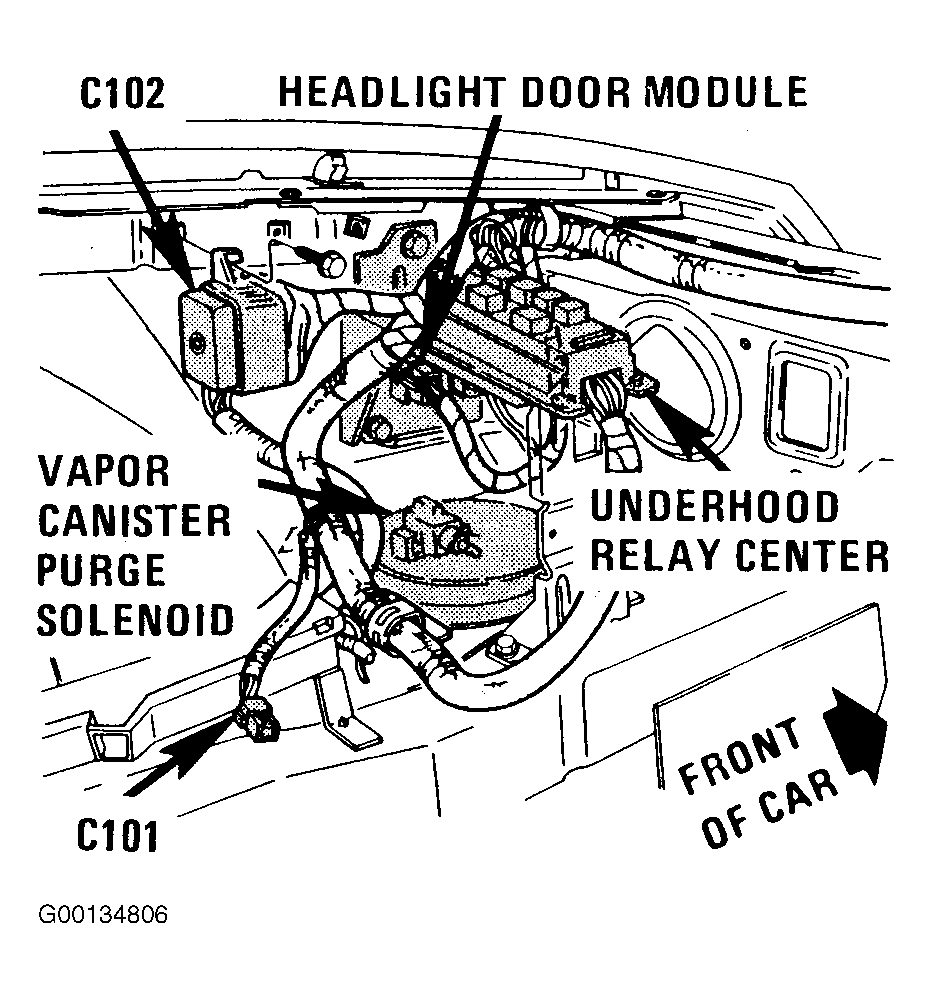

Fig 4: Locating Headlight Door Module & Underhood Relay Center
G00134806Courtesy of GENERAL MOTORS CORP.

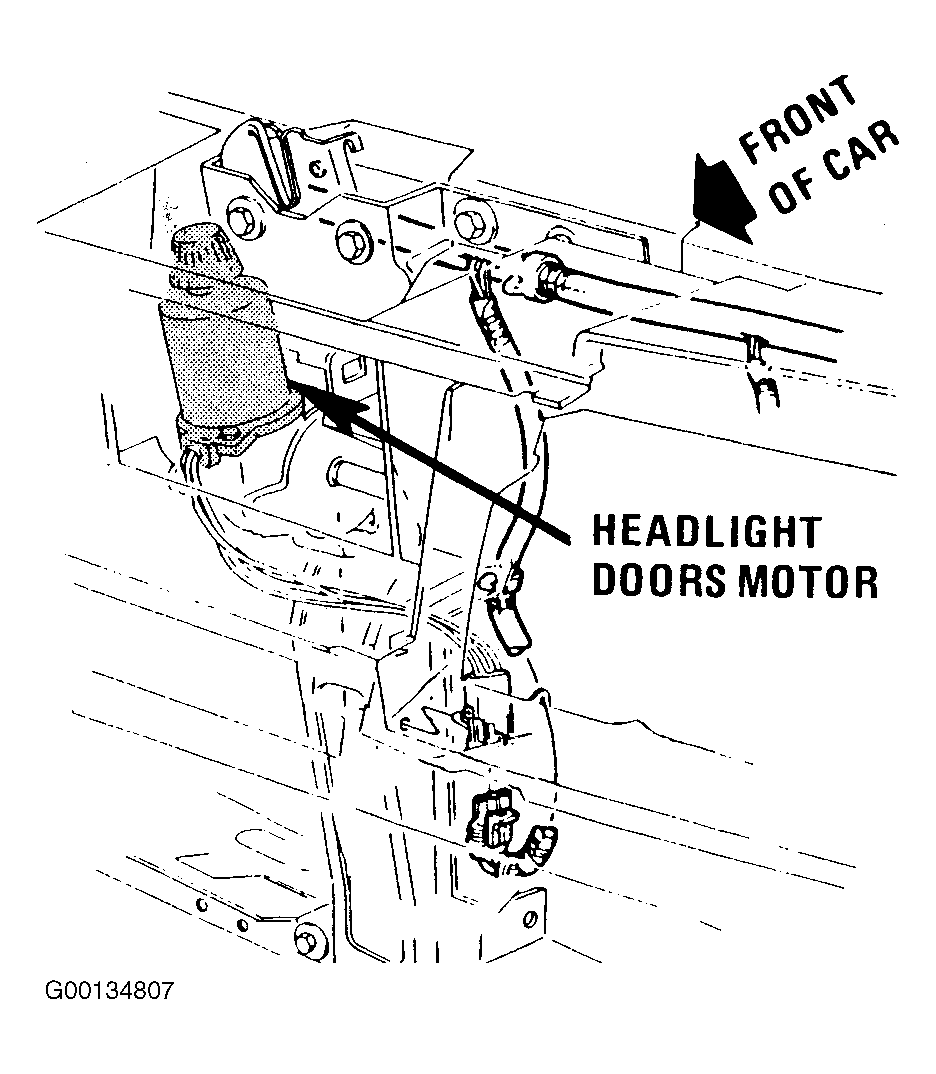

Fig 5: Locating Headlight Door Motor Components
G00134807Courtesy of GENERAL MOTORS CORP.

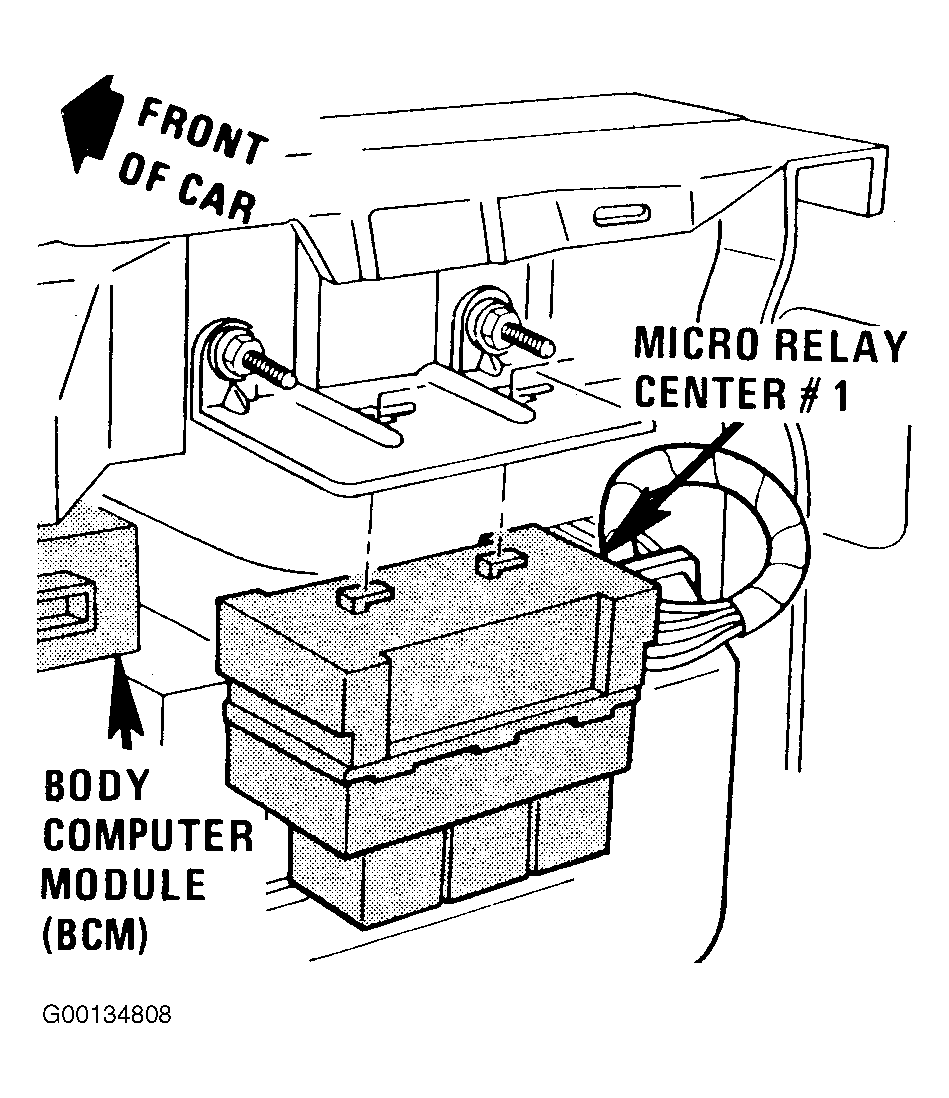

Fig 6: Locating Micro Relay Center #1
G00134808Courtesy of GENERAL MOTORS CORP.

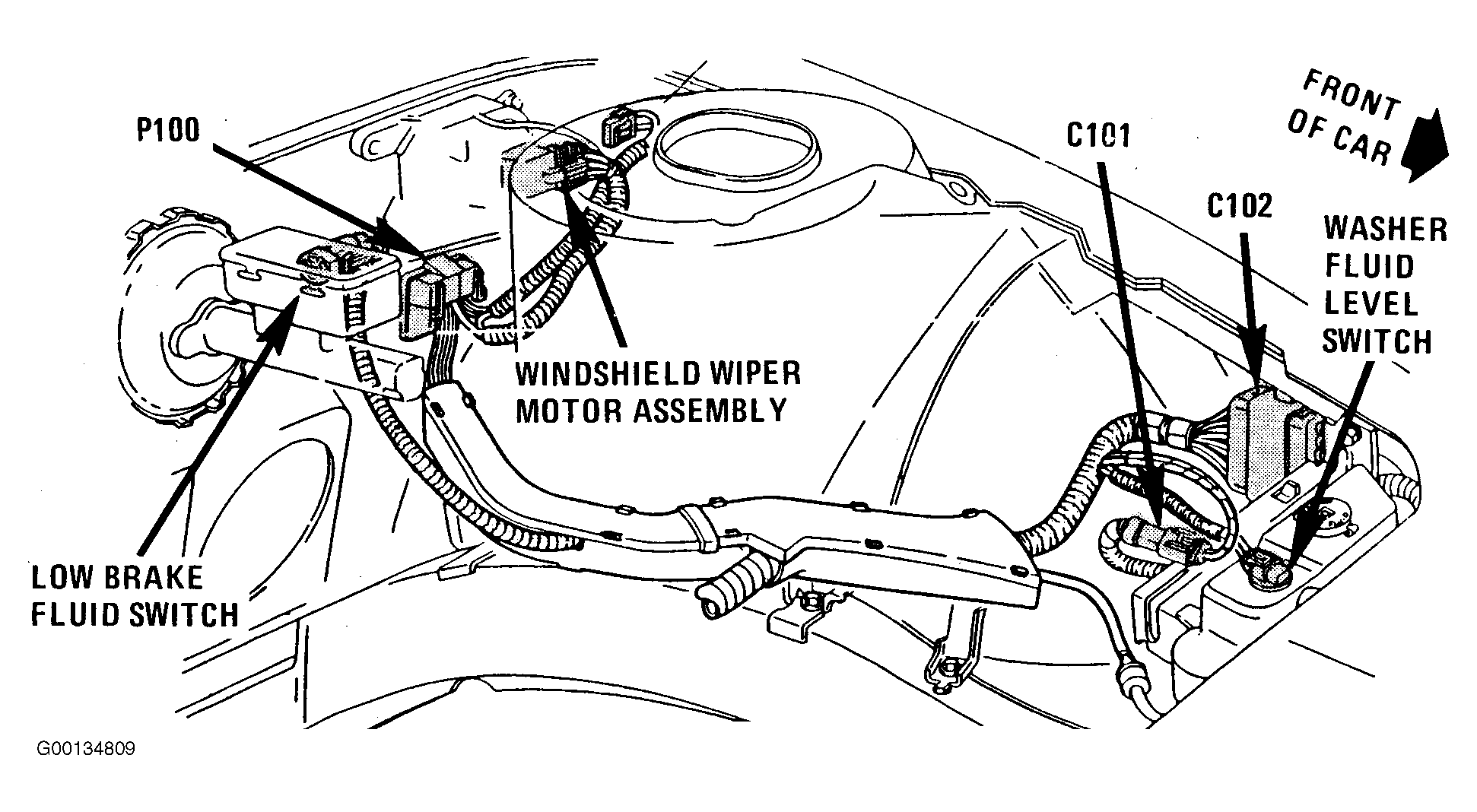

Fig 7: Locating Connector C102 & Grommet P100
G00134809Courtesy of GENERAL MOTORS CORP.

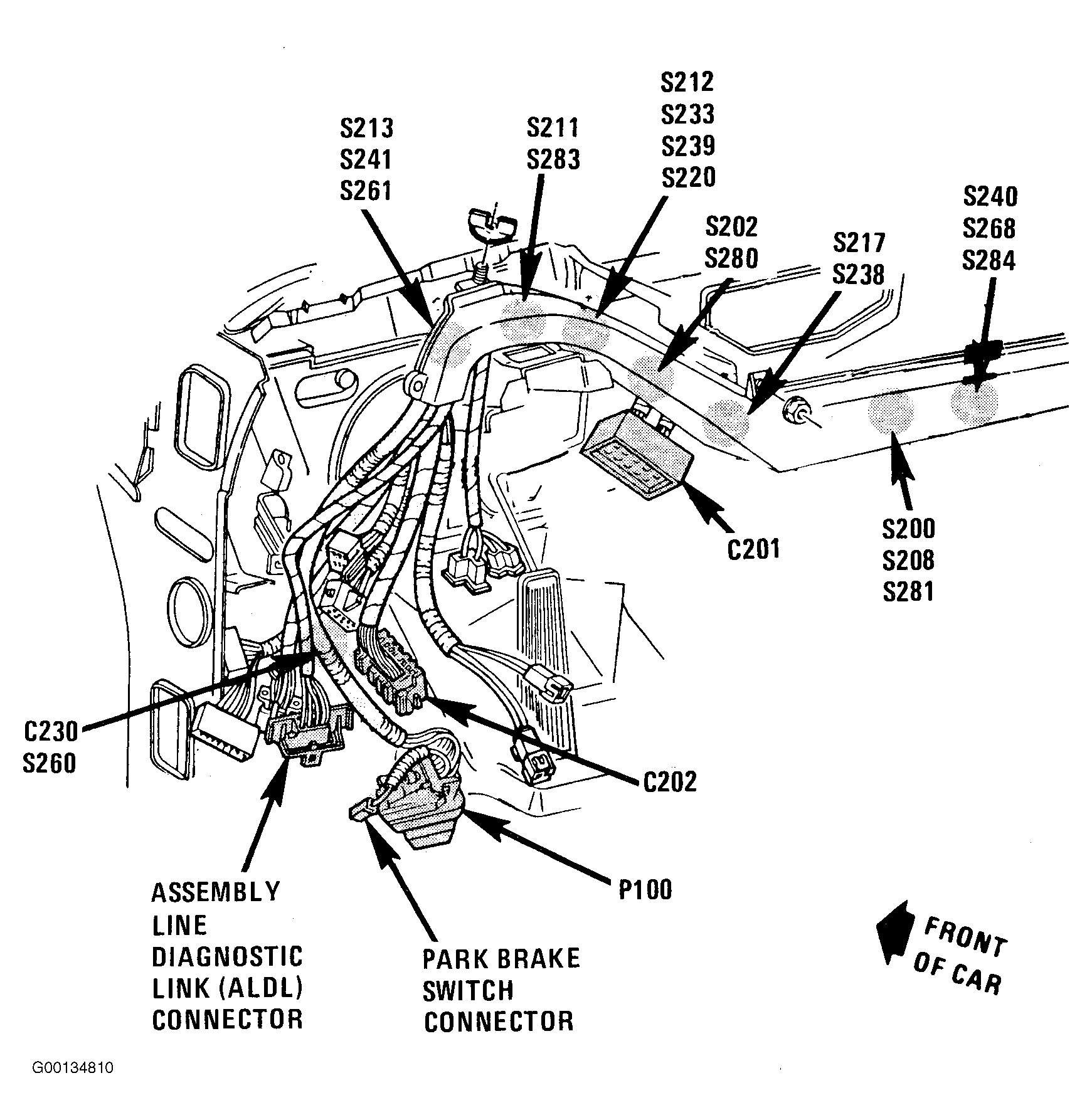

Fig 8: Locating Connector C102 & Splice S211, S241 & S268
G00134810Courtesy of GENERAL MOTORS CORP.

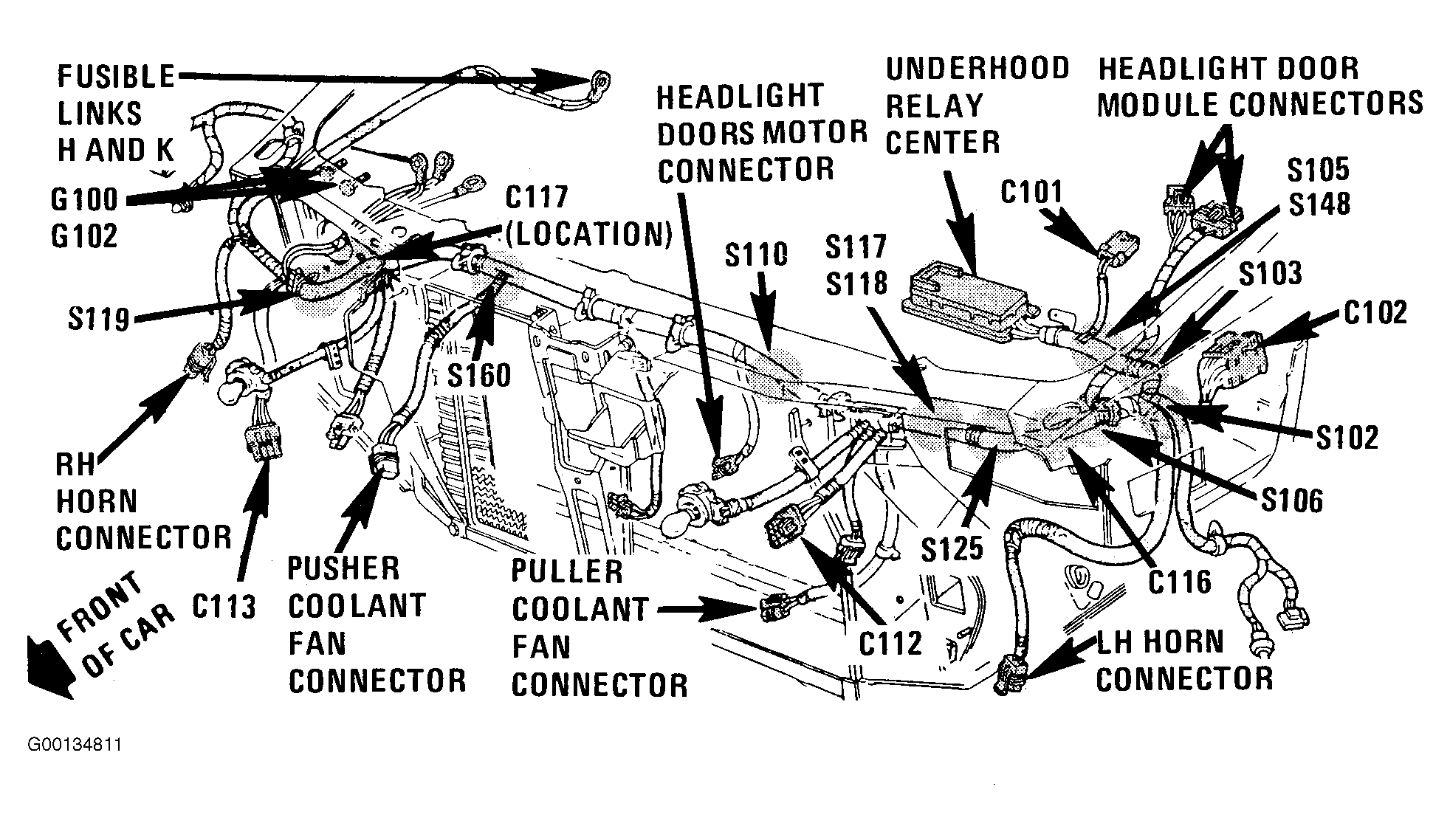

Fig 9: Locating Splice S102 & S118
G00134811Courtesy of GENERAL MOTORS CORP.
