RKE System Operation Check
RKE System Operation Check

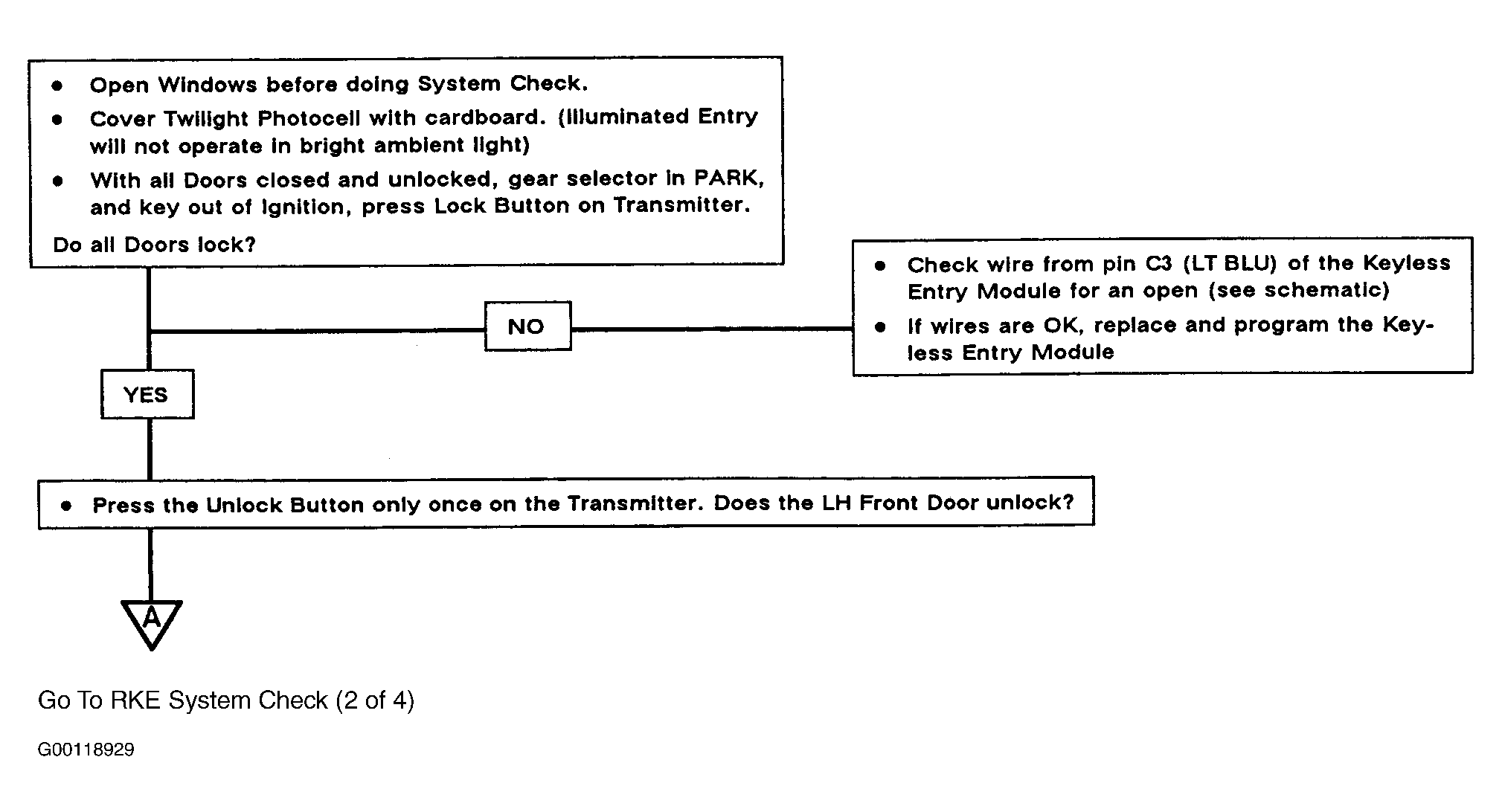

Fig 1: RKE System Operation Check (1 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 2: RKE System Operation Check (2 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 3: RKE System Operation Check (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 4: RKE System Operation Check (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
