Home >> Oldsmobile >> 1992 >> Toronado Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> System Tests >> Test B: Power & Ground

Test B: Power & Ground

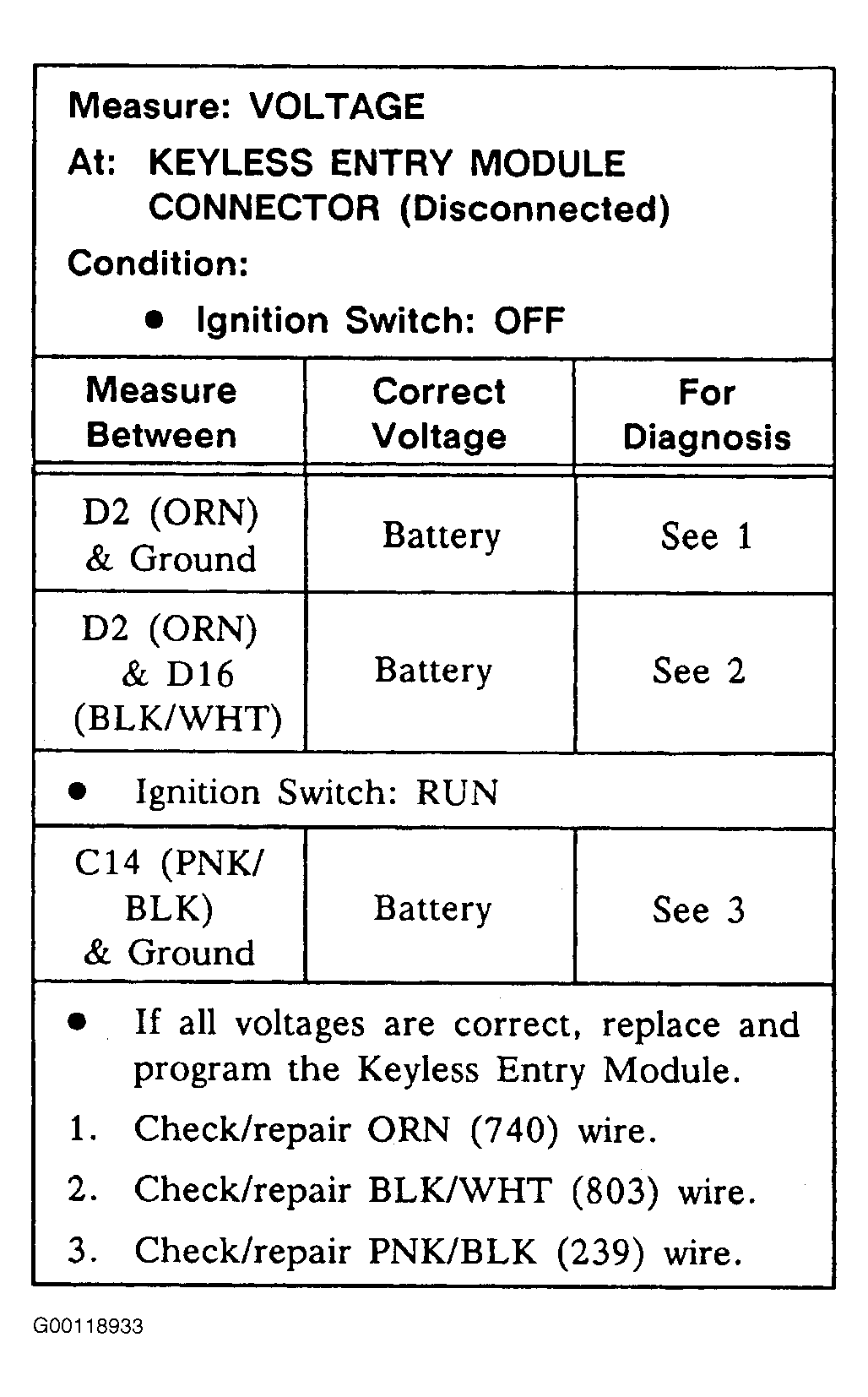

Fig 1: Test B: Power & Ground

G00118933

Courtesy of GENERAL MOTORS CORP.
