Diagnostic Aids

Outside interference such as CB antenna lead near PCM wiring harness may cause false servo position sensor signal and set Code 68.

Fig 1: Code 68, Schematic, Cruise System Problem, Using Tech 1
G91C07465
Fig 2: Code 68, Flow Chart, Cruise System Problem, Using Tech 1
G91D07376

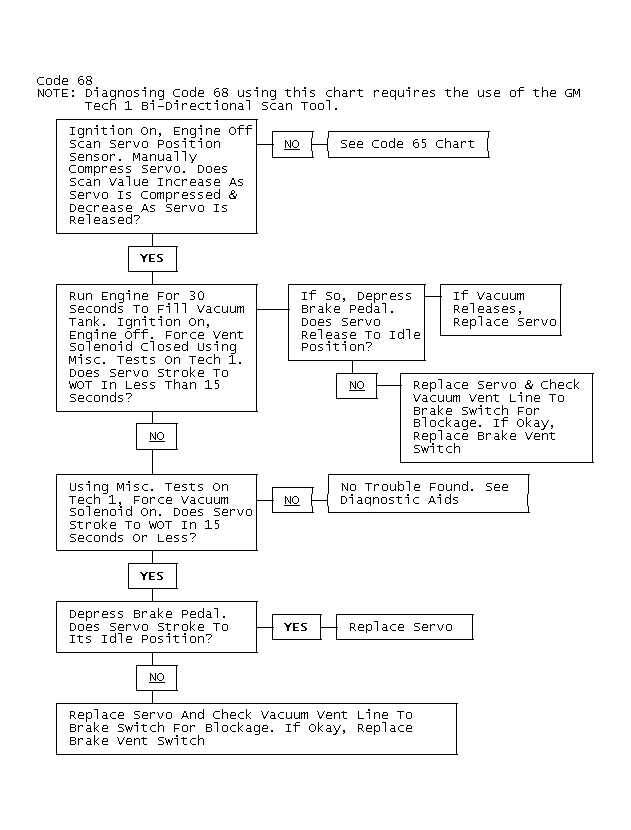

Fig 3: Code 68
GB0011376
