Wiring Diagrams

For 1992 cruise control system wiring diagrams, see appropriate chassis wiring diagram in WIRING DIAGRAMS section.

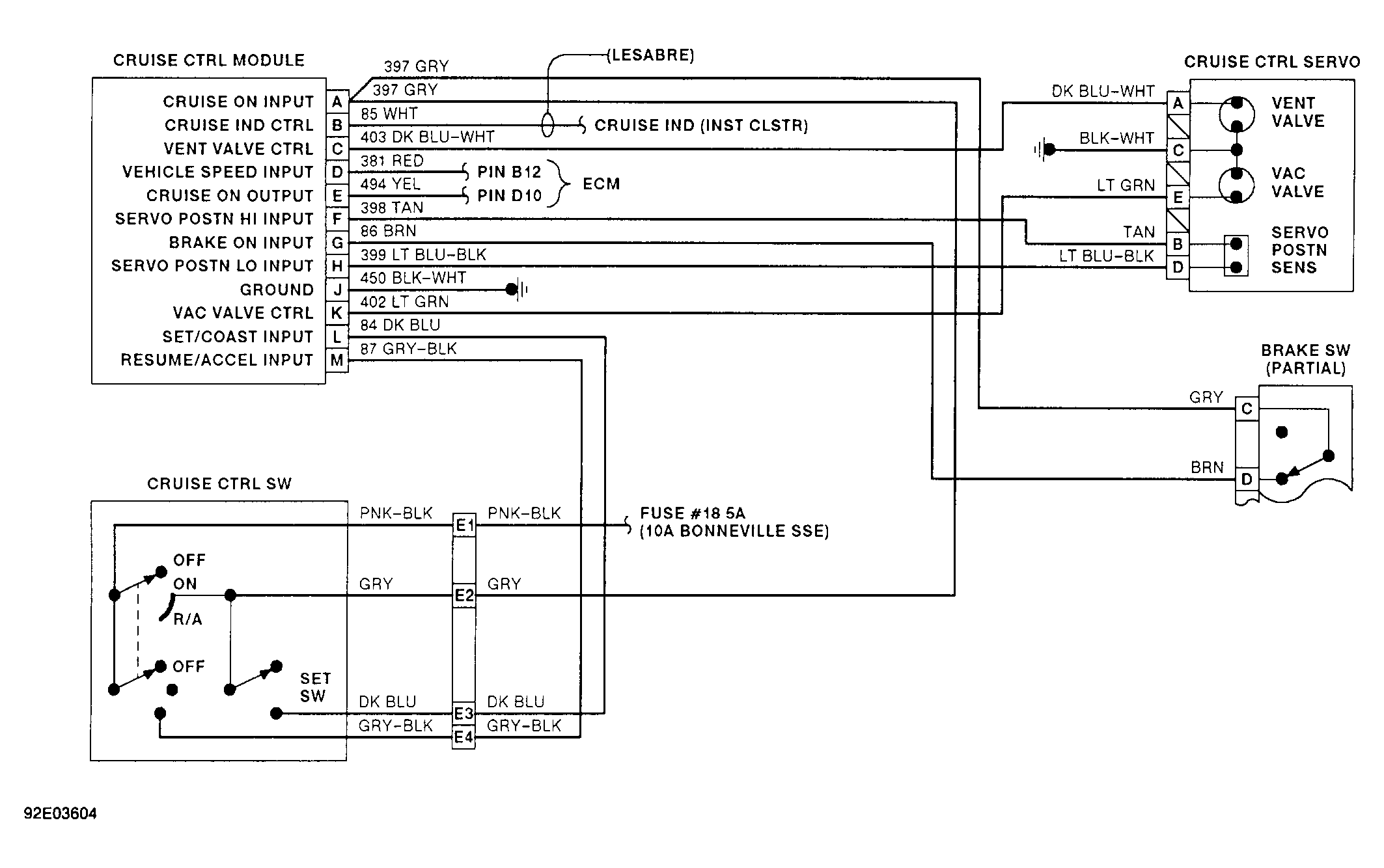

Fig 1: 1991 Cruise Control System Wiring Diagram (Bonneville, Eighty-Eight & LeSabre)

Courtesy of GENERAL MOTORS CORP.

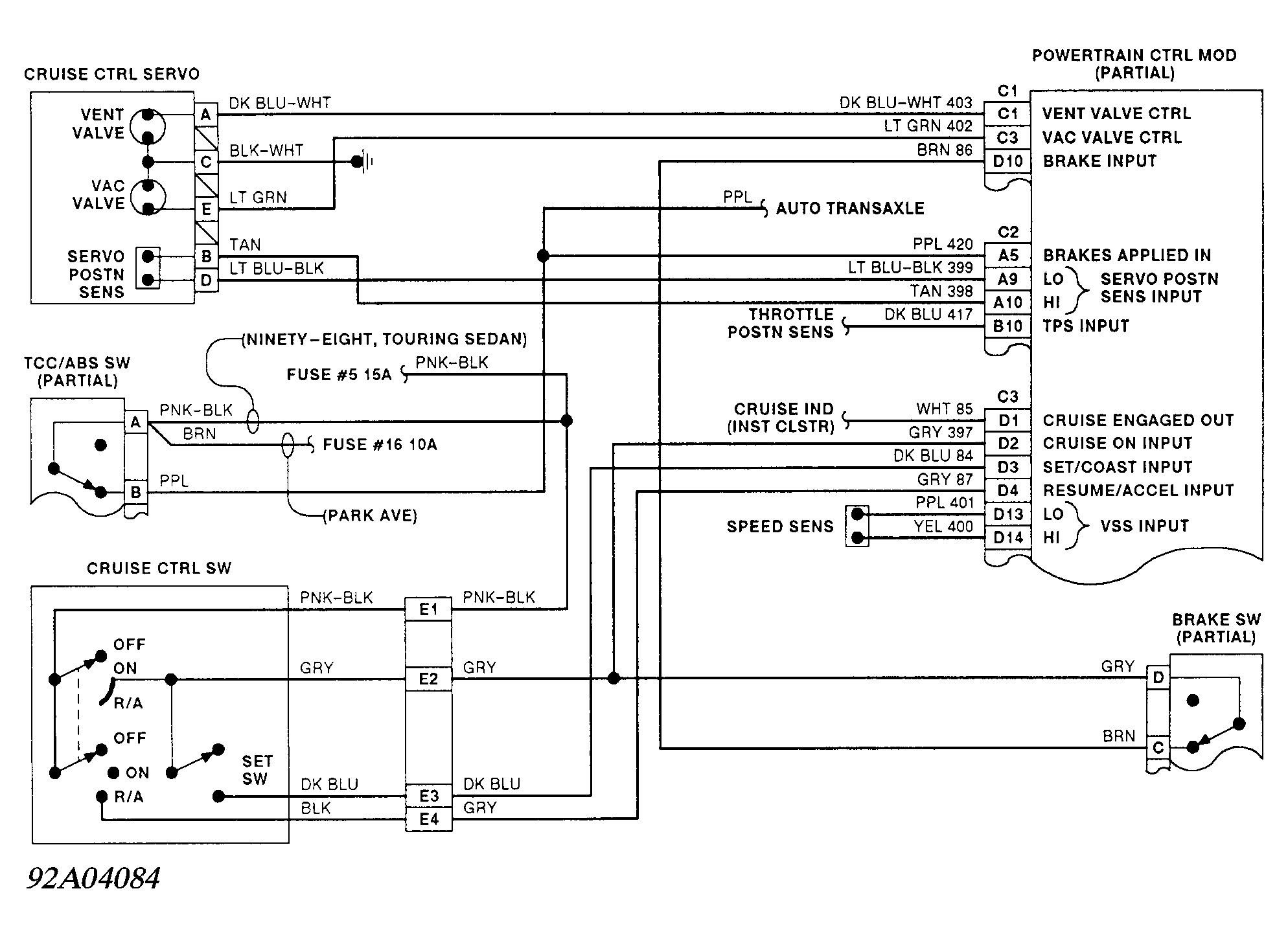

Fig 2: 1991 Cruise Control System Wiring Diagram (Ninety-Eight & Park Avenue)

Courtesy of GENERAL MOTORS CORP.
