Test C - Transmitter/Module Isolation Test

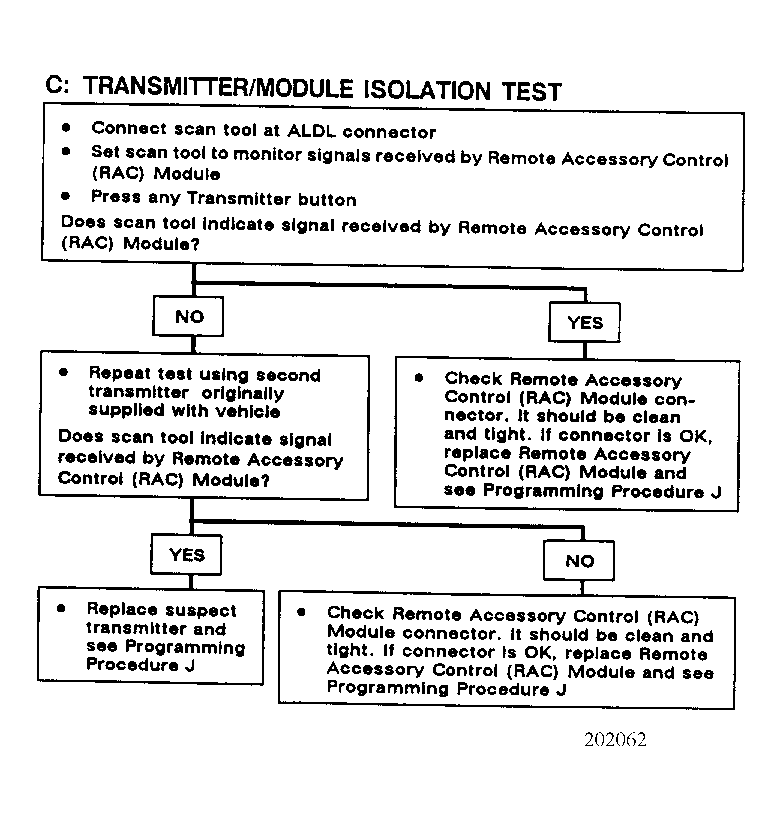

Fig 1: Test C - Transmitter/Module Isolation Chart

G202062

Courtesy of GENERAL MOTORS CORP.
