Test F: Window Switch Power
Test F: Window Switch Power
To perform the following test, see
Fig 1
.

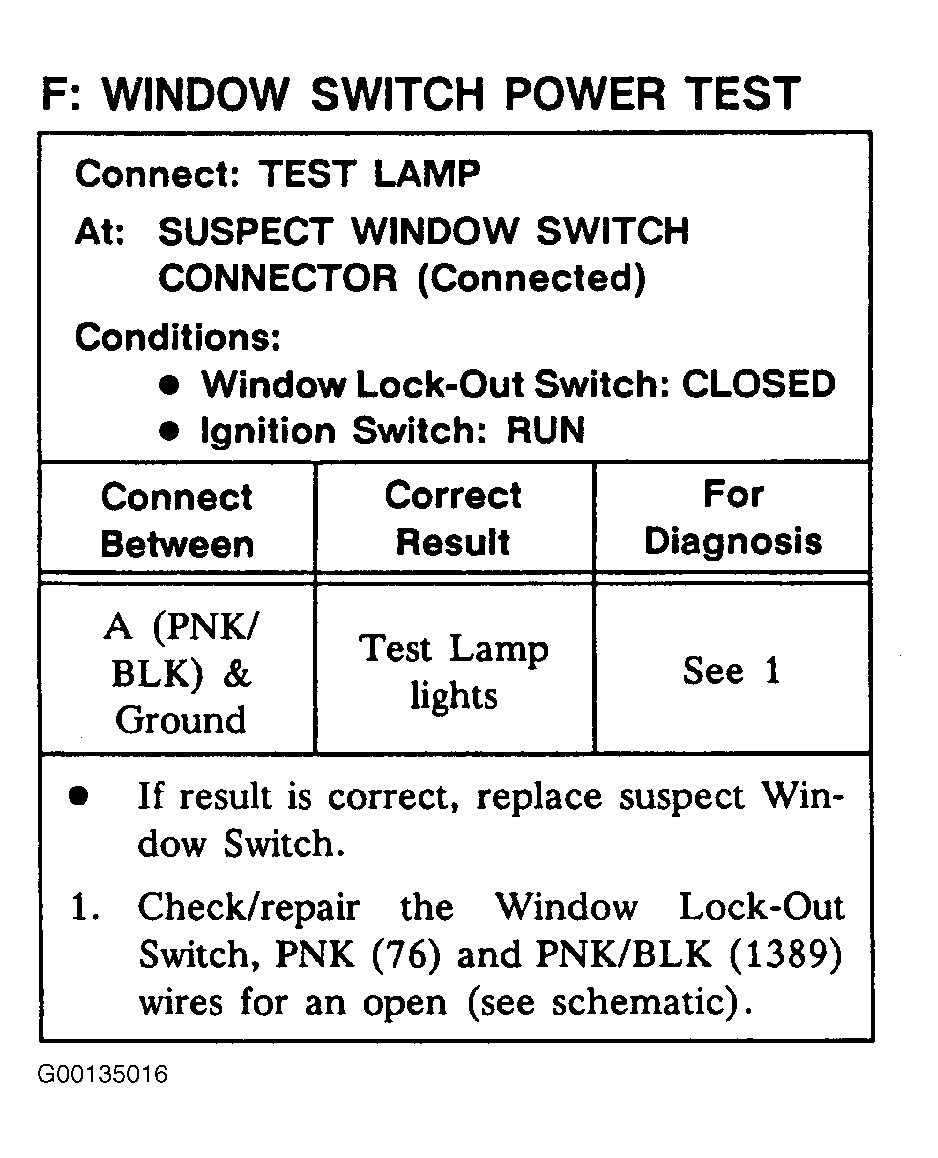

Fig 1: Test F: Window Switch Power
Courtesy of GENERAL MOTORS CORP.
