Test E: Window Motor

To perform the following test, see Fig 1 .

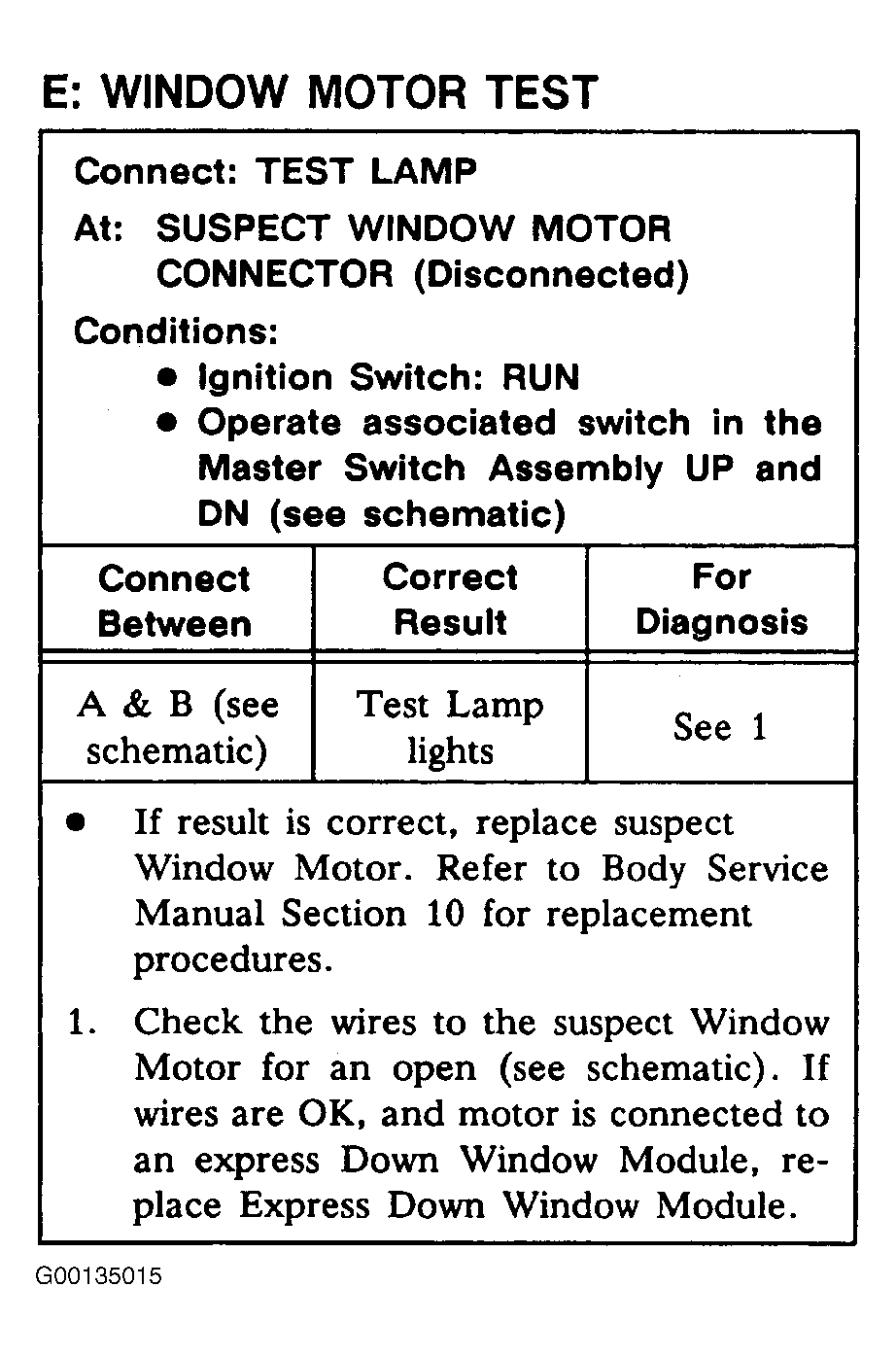

Fig 1: Test E: Window Motor
G00135015Courtesy of GENERAL MOTORS CORP.
