Test D: Window Switch

To perform the following test, see Fig 1 .

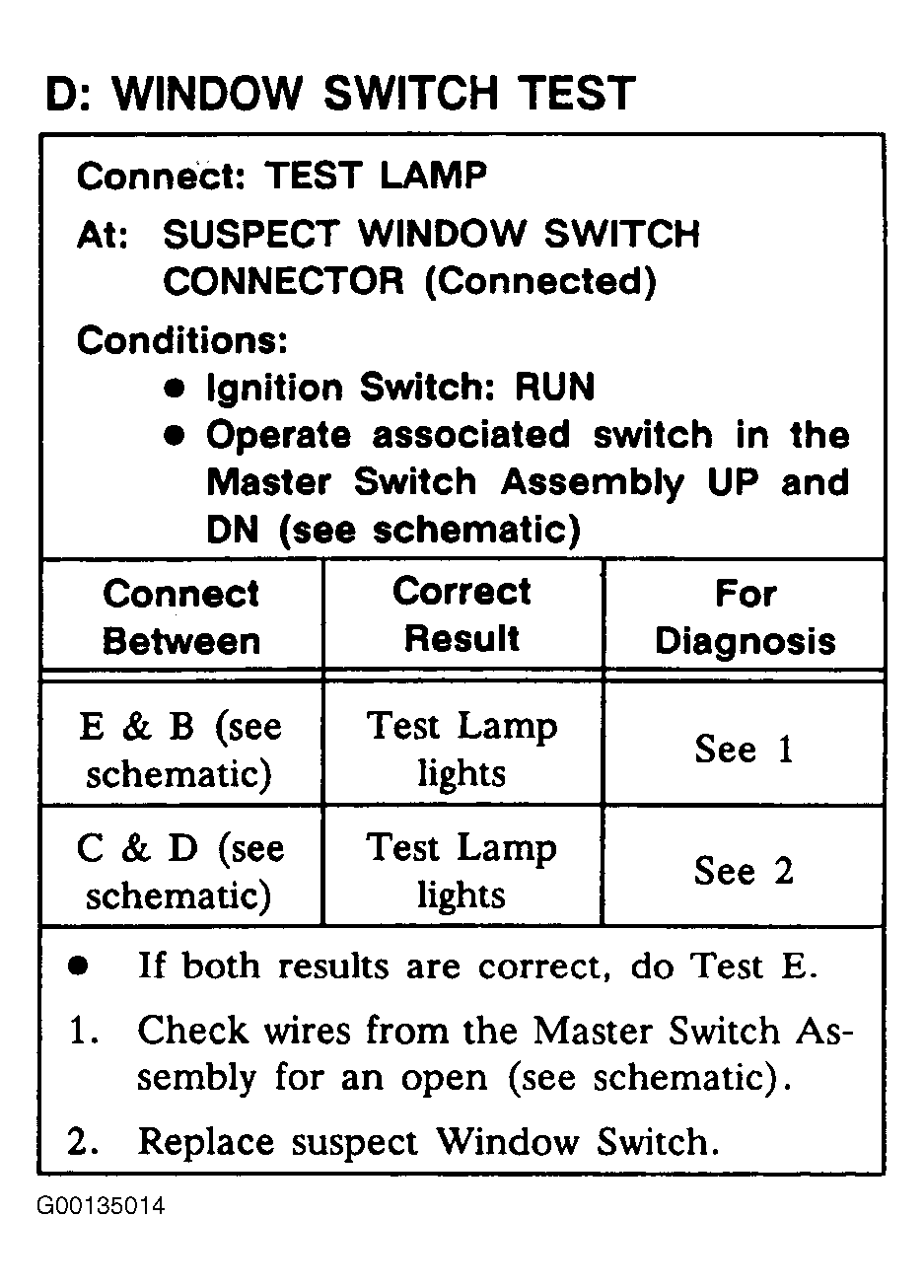

Fig 1: Test D: Window Switch

G00135014

Courtesy of GENERAL MOTORS CORP.
