Home >> Oldsmobile >> 1992 >> Eighty-Eight Royale >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test C: Express Down Window Module

Test C: Express Down Window Module

To perform the following test, see Fig 1 .

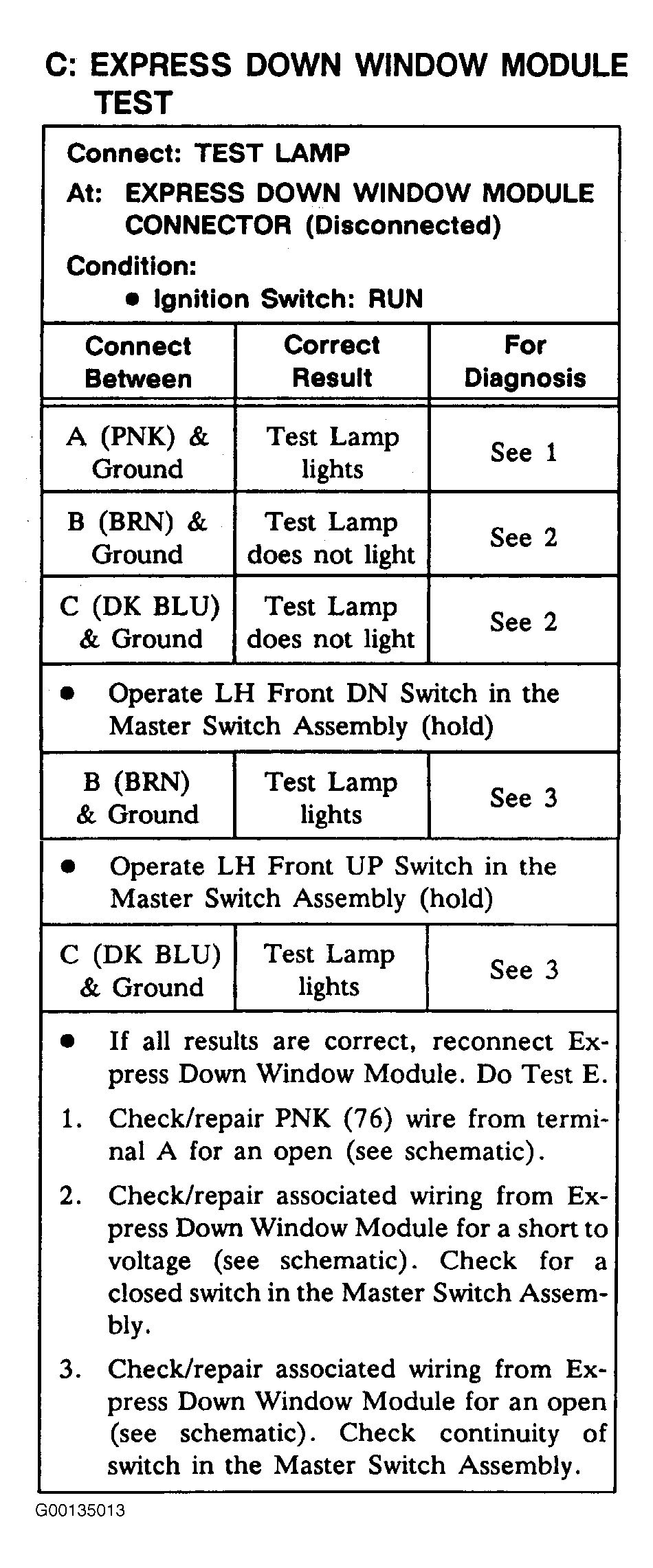

Fig 1: Test C: Express Down Window Module
G00135013Courtesy of GENERAL MOTORS CORP.
