Test B: Master Switch Assembly
Test B: Master Switch Assembly
To perform the following test, see
Fig 1
.

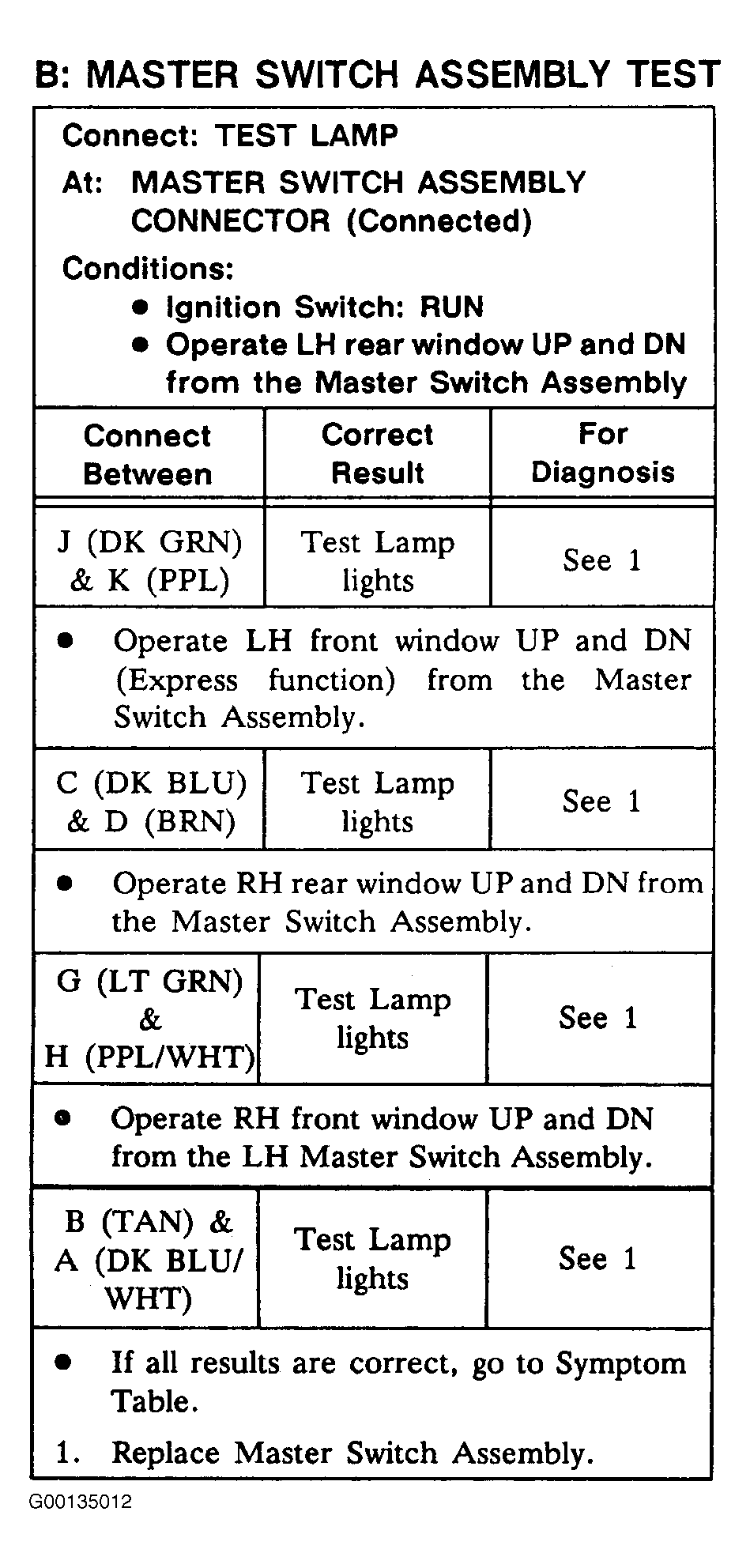

Fig 1: Test B: Master Switch Assembly
Courtesy of GENERAL MOTORS CORP.
