Test A: Window Power & Ground
Test A: Window Power & Ground
To perform the following test, see
Fig 1
.

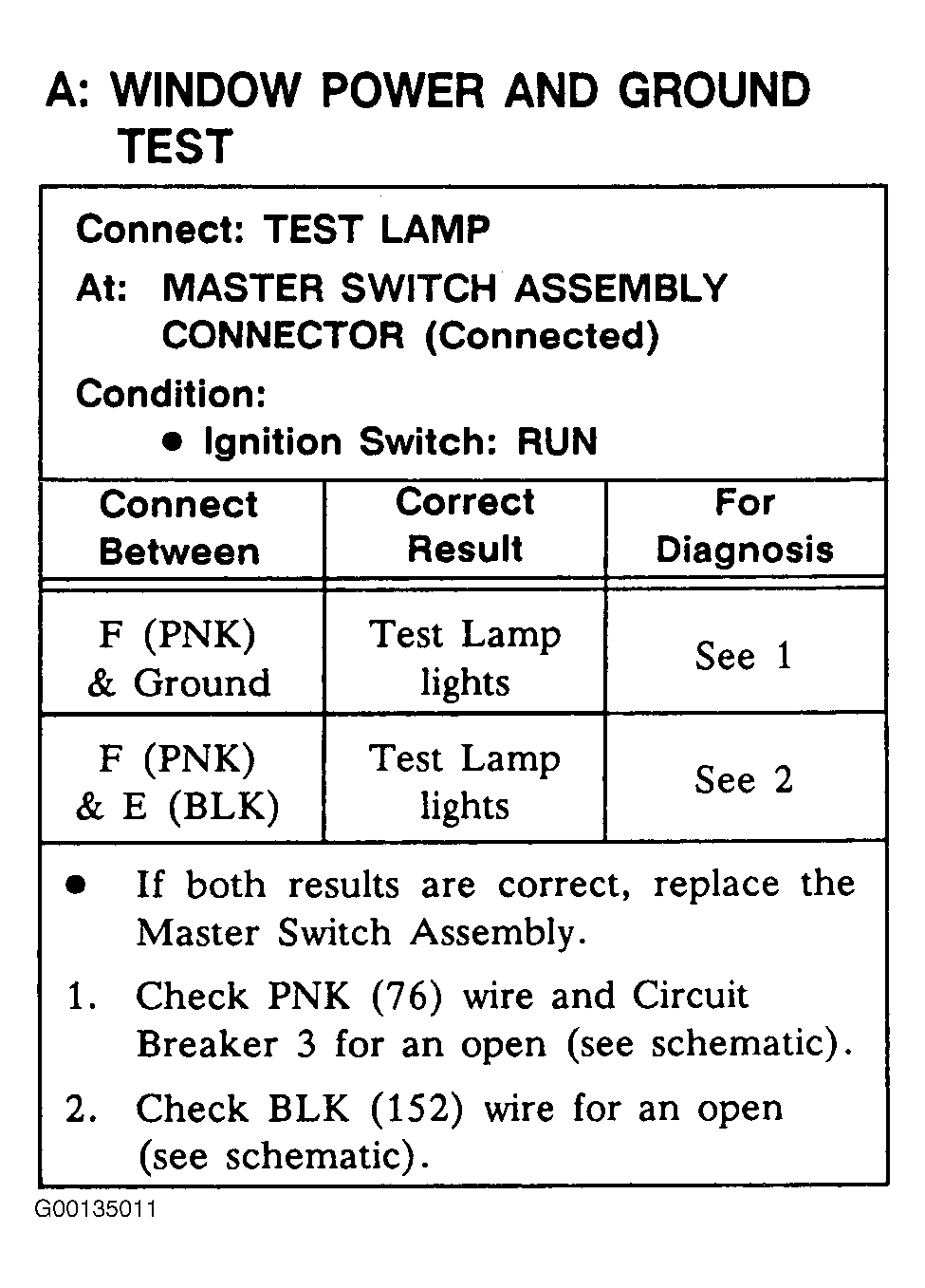

Fig 1: Test A: Window Power & Ground
Courtesy of GENERAL MOTORS CORP.
