Anti-Lock Brake System: Wiring Diagram

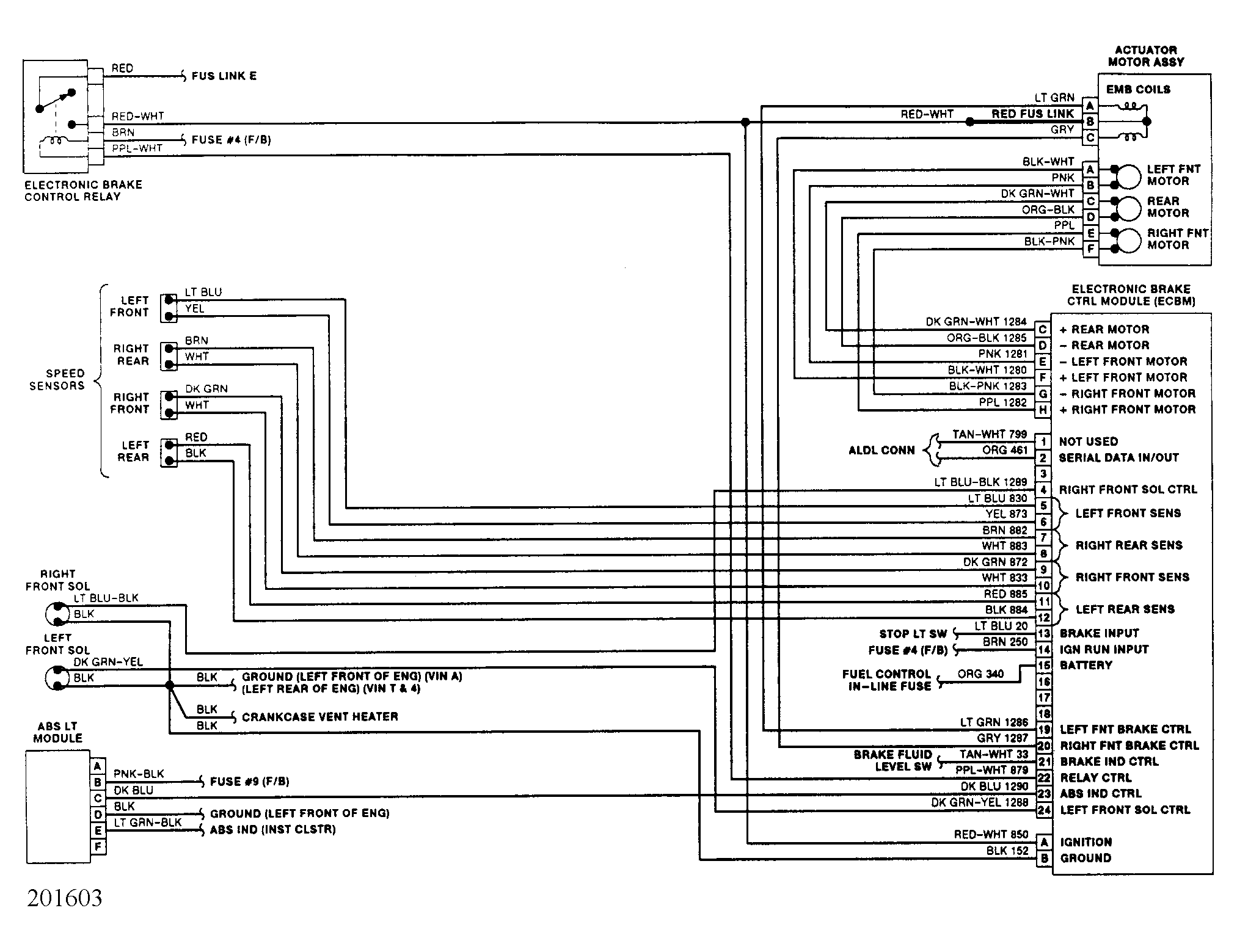

Fig 1: ABS Wiring Diagram (Cutlass Calais, Grand Am, Skylark)

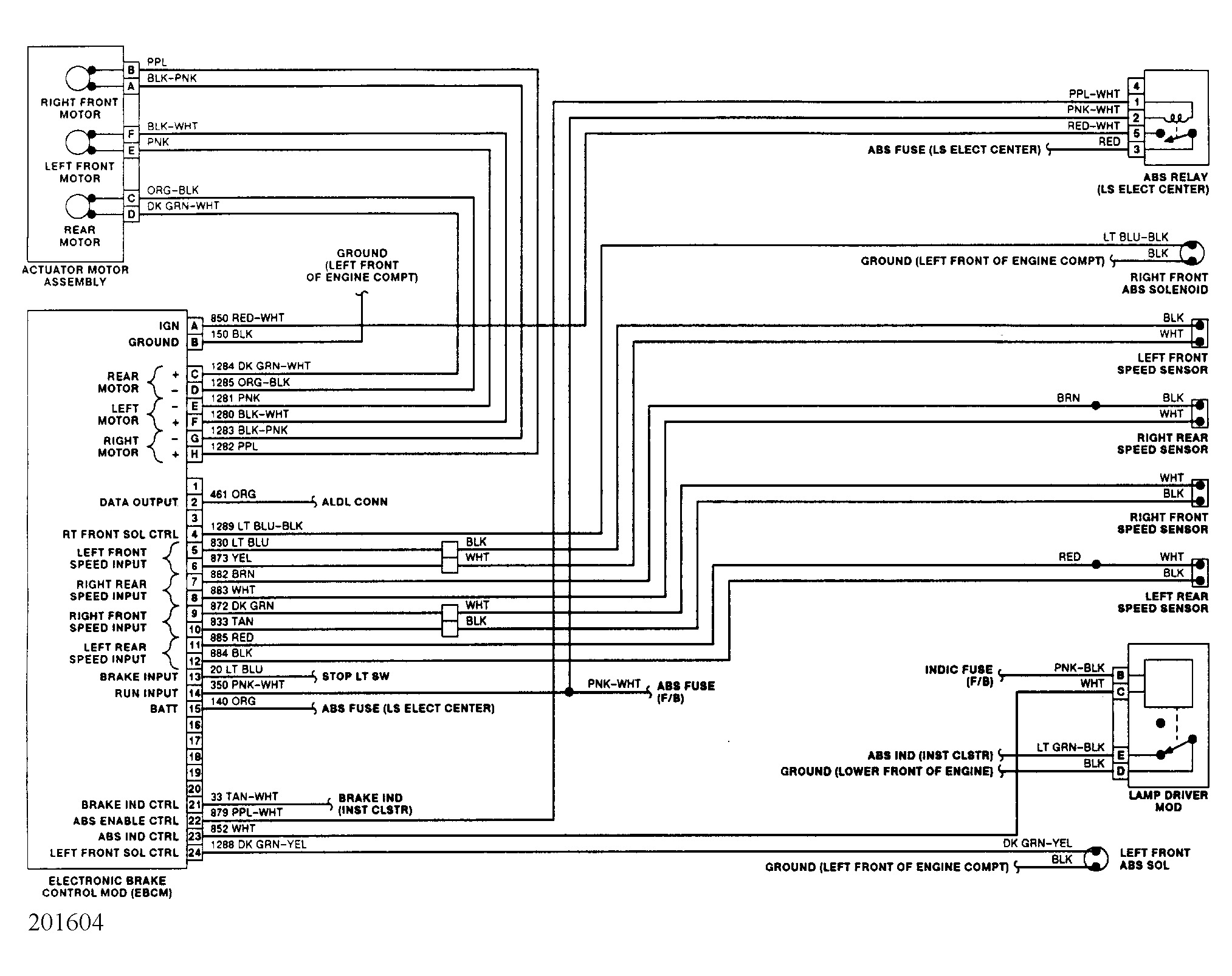

Fig 2: ABS Wiring Diagram (Achieva, Skylark, & Grand AM)

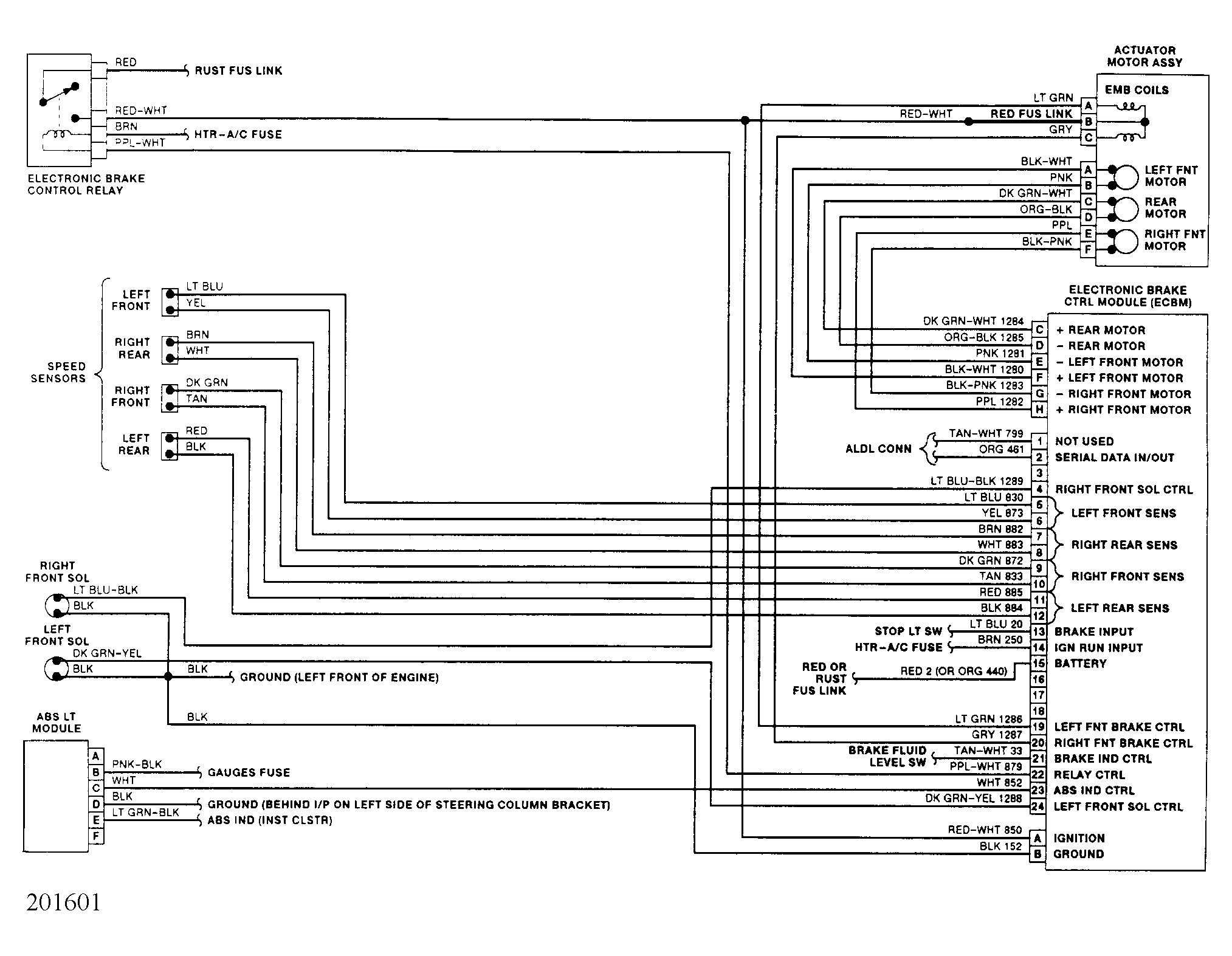

Fig 3: ABS Wiring Diagram (Cavilier & Sunbird)

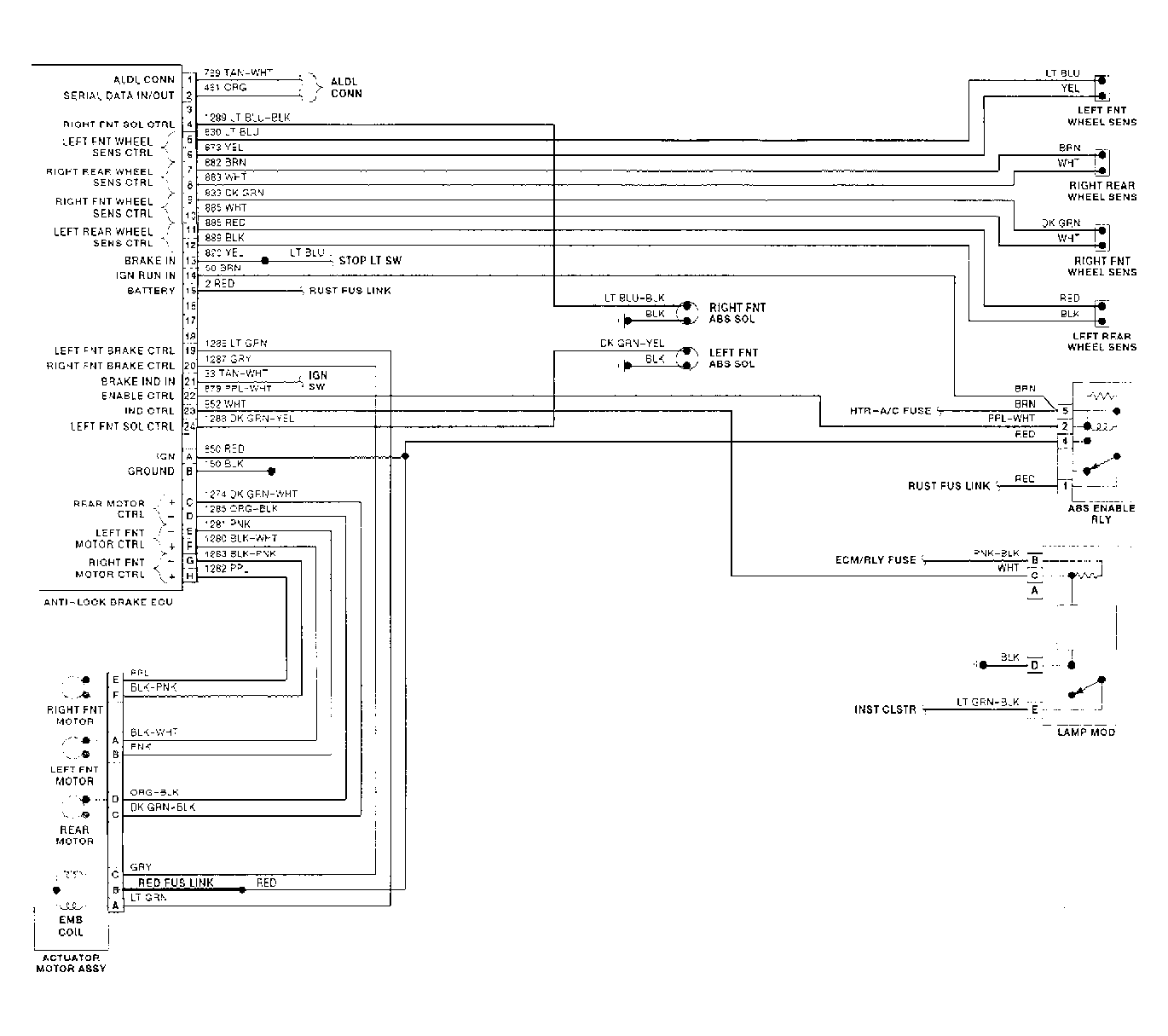

Fig 4: ABS Wiring Diagram (Beretta & Corsica)

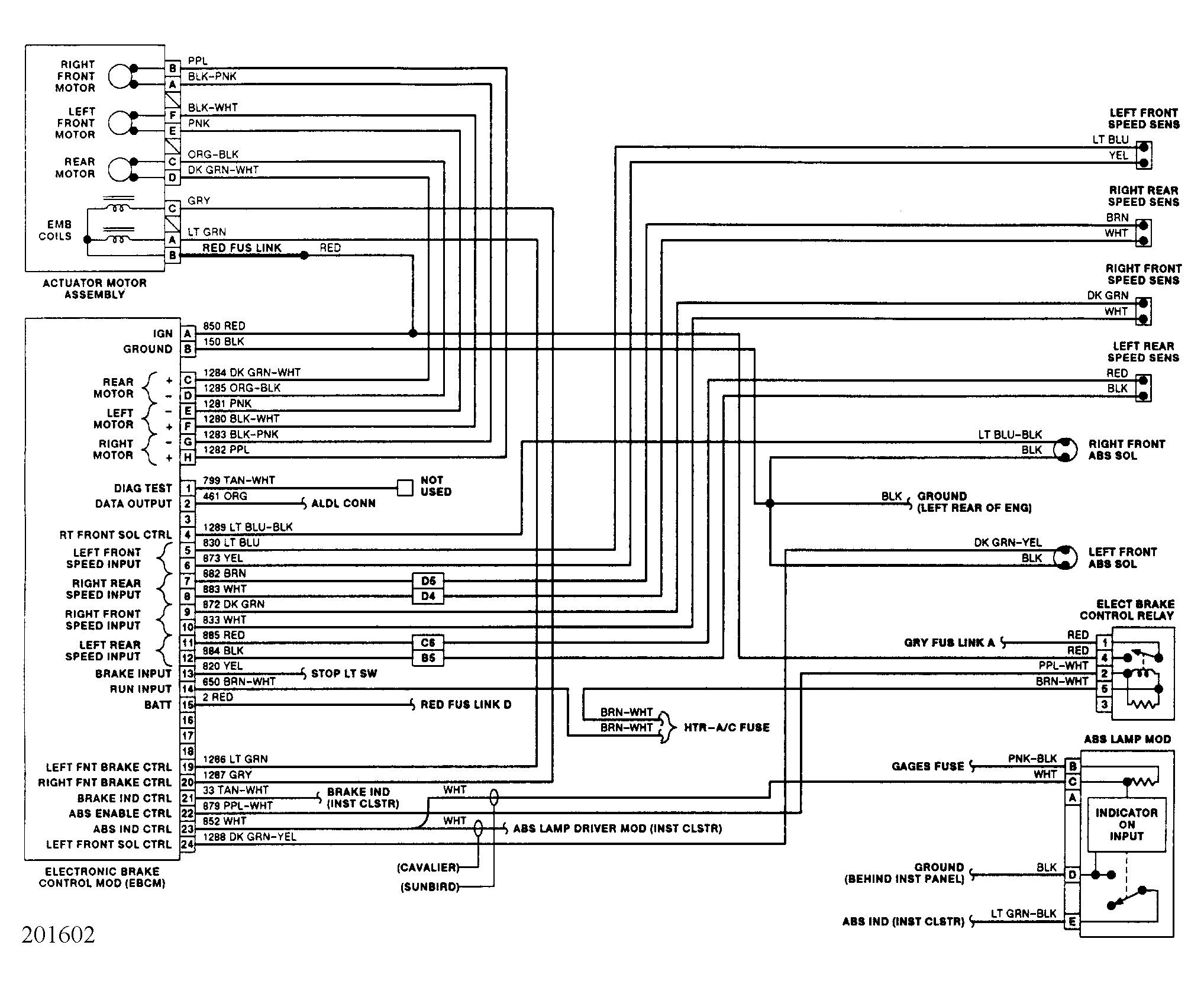

Fig 5: ABS Wiring Diagram (Lumina)
