Home >> Oldsmobile >> 1992 >> Cutlass Supreme Base >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test D: Window Motor Test

Test D: Window Motor Test

To perform test, see Fig 1 .

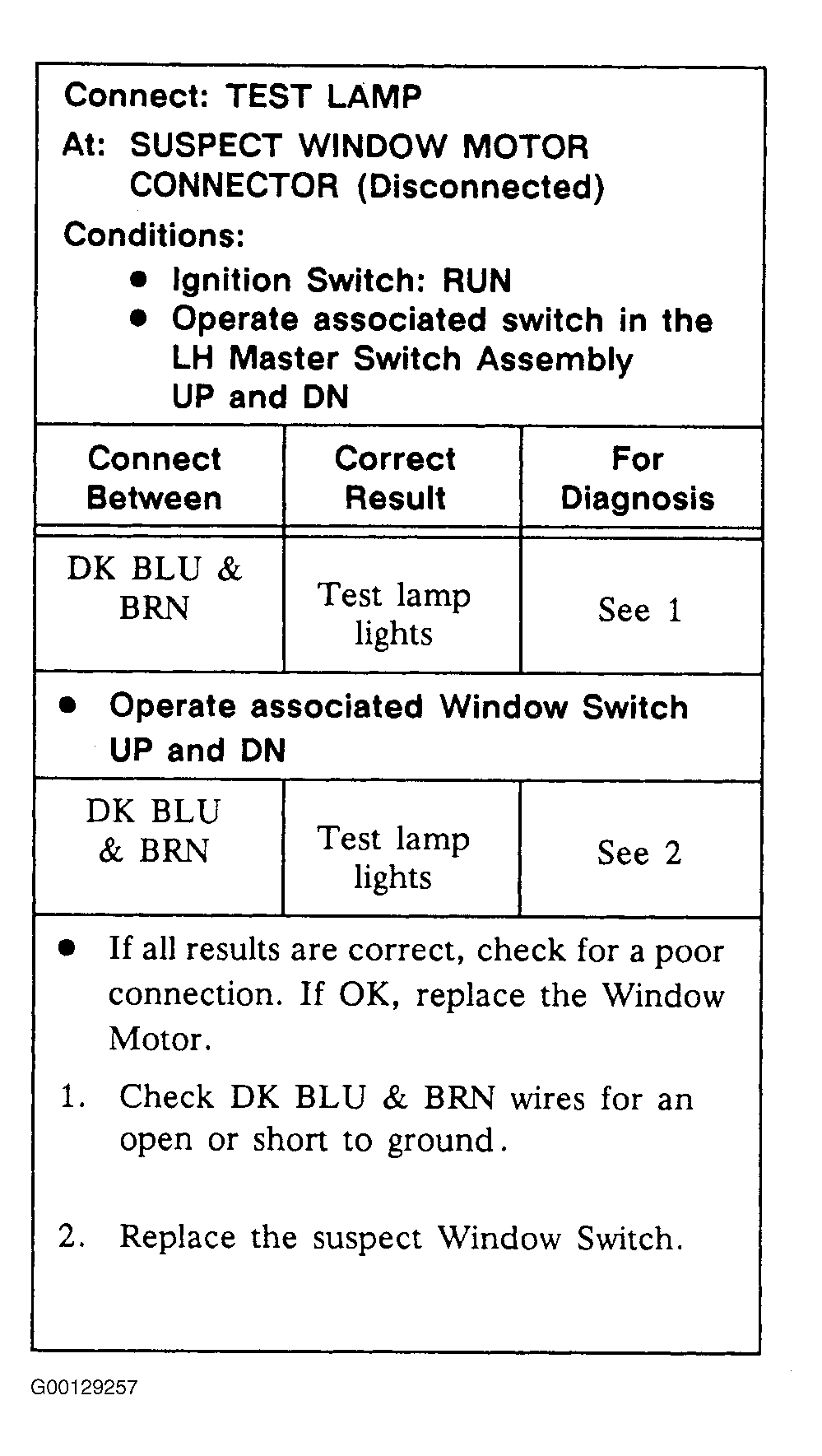

Fig 1: Test D: Window Motor Test

G00129257

Courtesy of GENERAL MOTORS CORP.
