Oldsmobile
>>
1992
>>
Cutlass Supreme Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Remote Keyless Entry System
>>
Wiring Diagrams
Wiring Diagrams

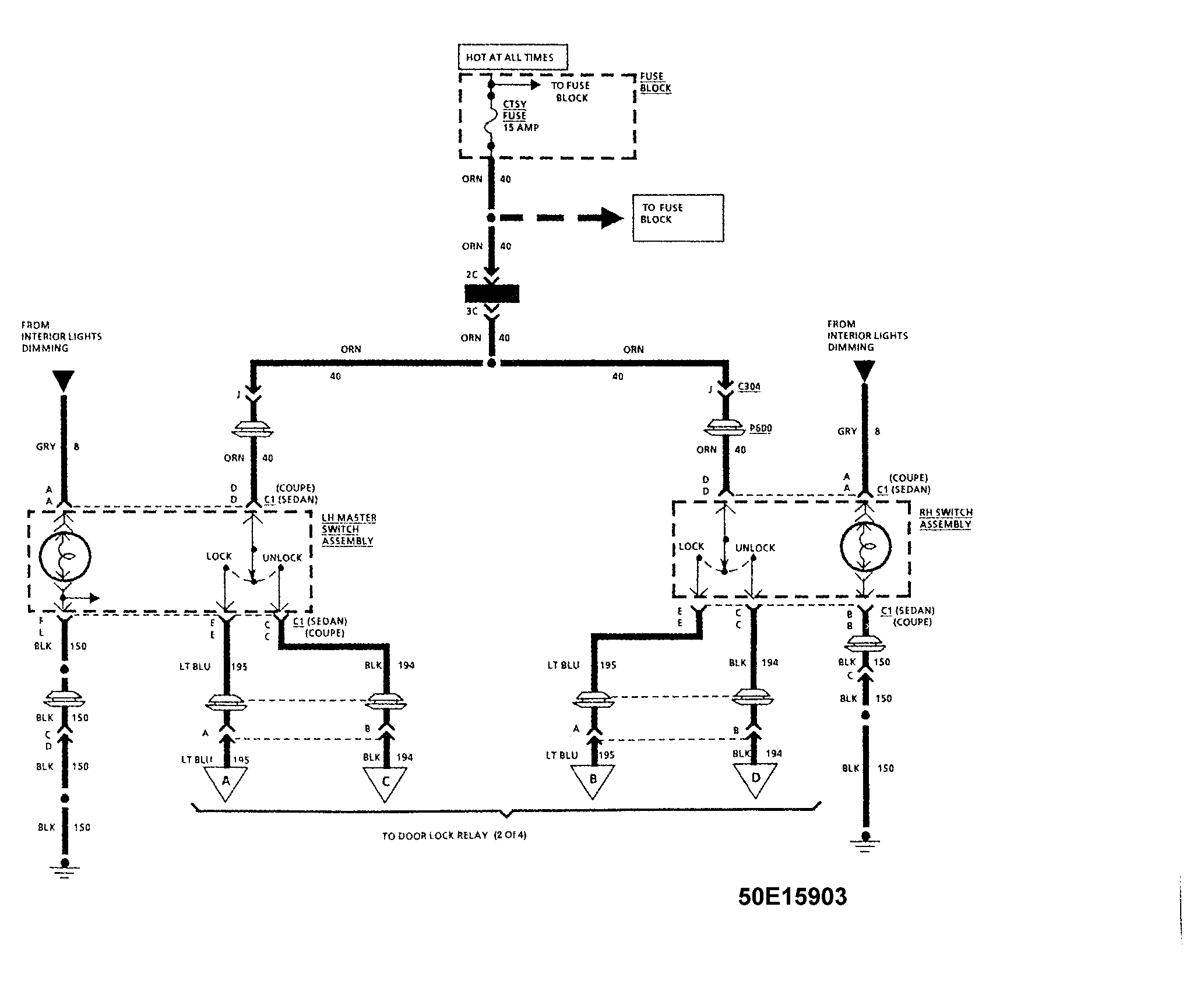

Fig 1: Keyless Entry System Wiring Diagram (1 of 4)
Courtesy of GENERAL MOTORS CO.

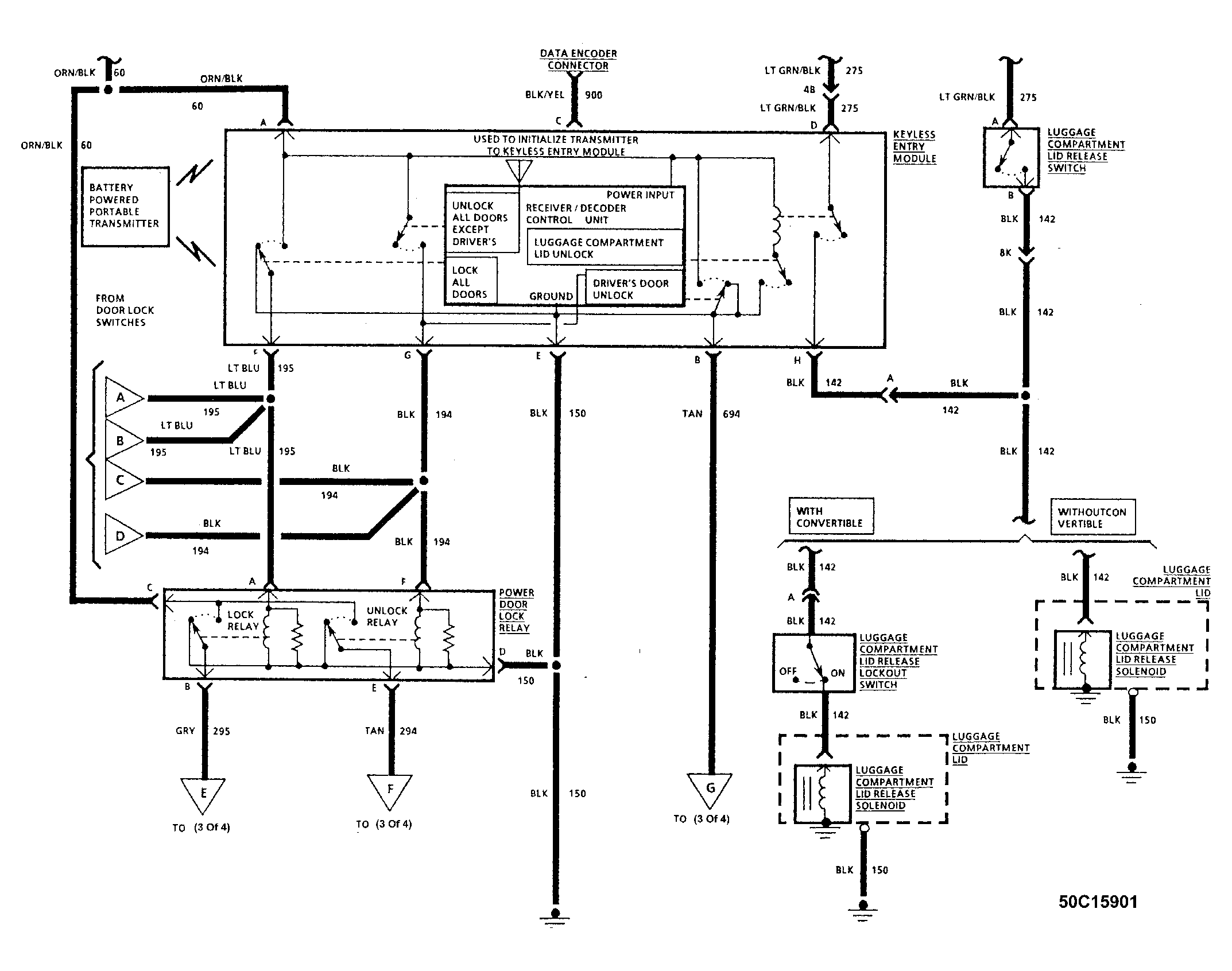

Fig 2: Keyless Entry System Wiring Diagram (2 of 4)
Courtesy of GENERAL MOTORS CO.

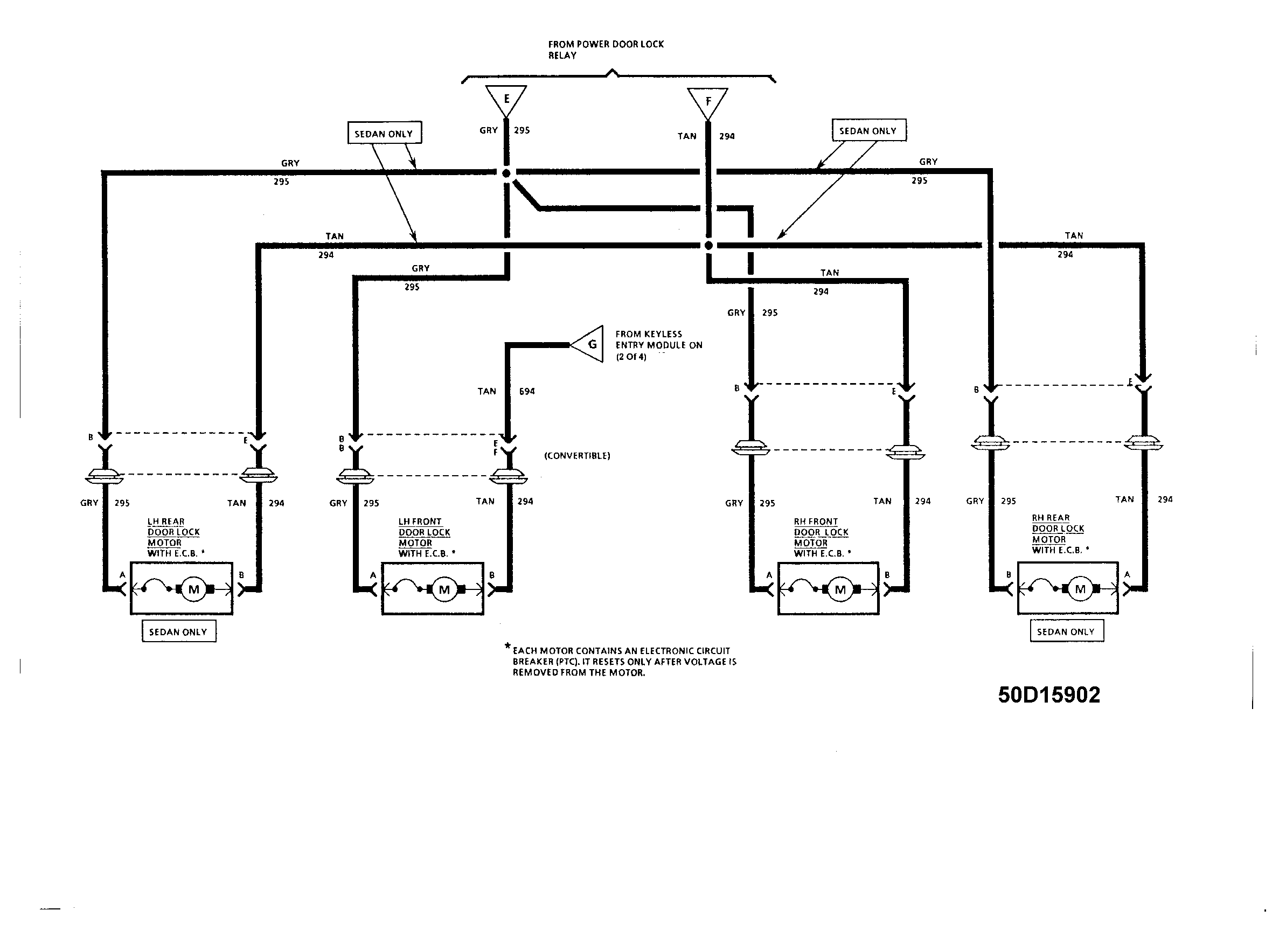

Fig 3: Keyless Entry System Wiring Diagram (3 of 4)
Courtesy of GENERAL MOTORS CO.

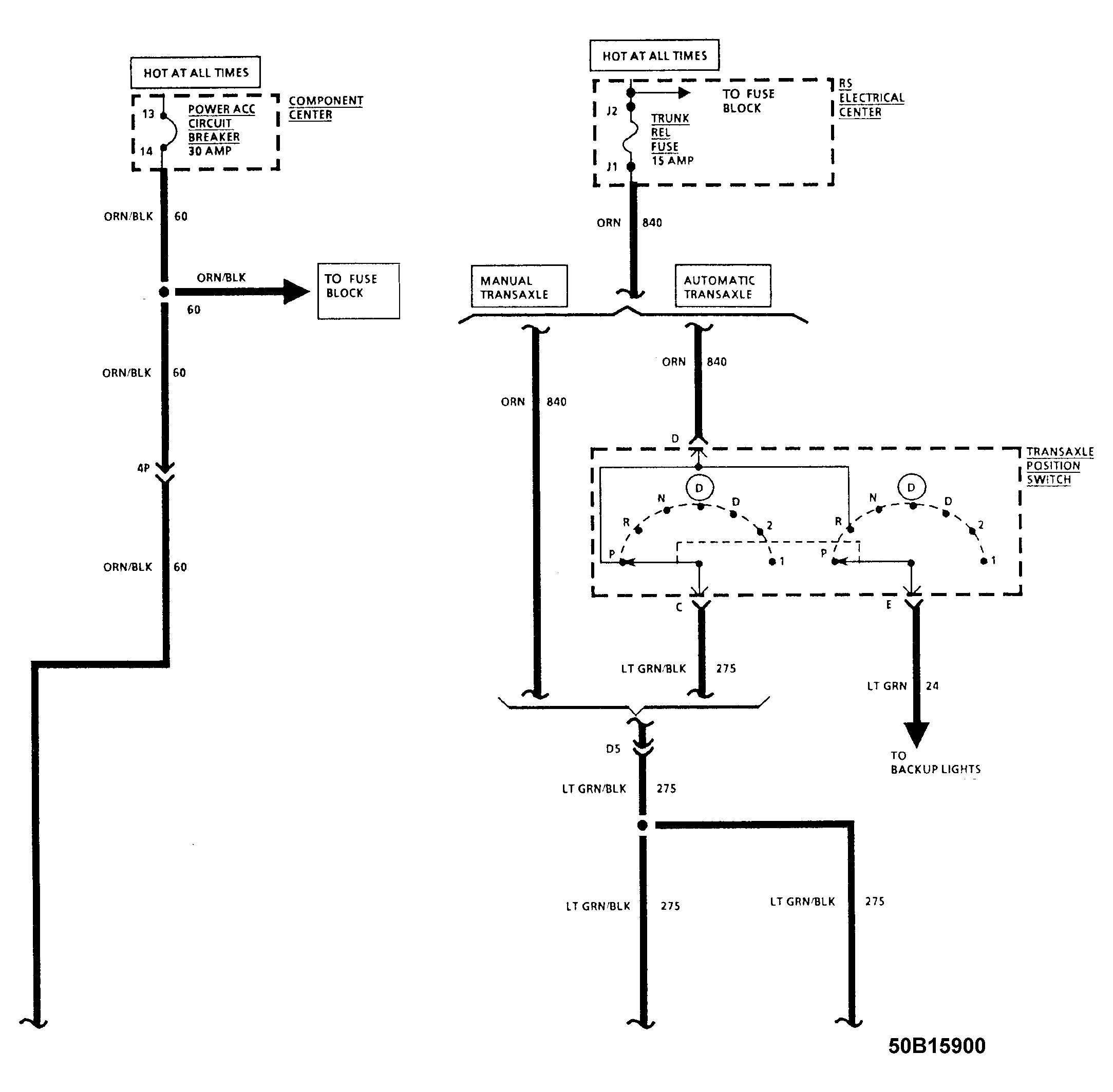

Fig 4: Keyless Entry System Wiring Diagram (4 of 4)
Courtesy of GENERAL MOTORS CO.
Courtesy of GENERAL MOTORS CO.
Courtesy of GENERAL MOTORS CO.
Courtesy of GENERAL MOTORS CO.
Courtesy of GENERAL MOTORS CO.
