Wiring Diagrams

Fig 1: Power Window System Wiring Diagram (Cutlass Ciera & Cutlass Cruiser, 2-Door - 1991, 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

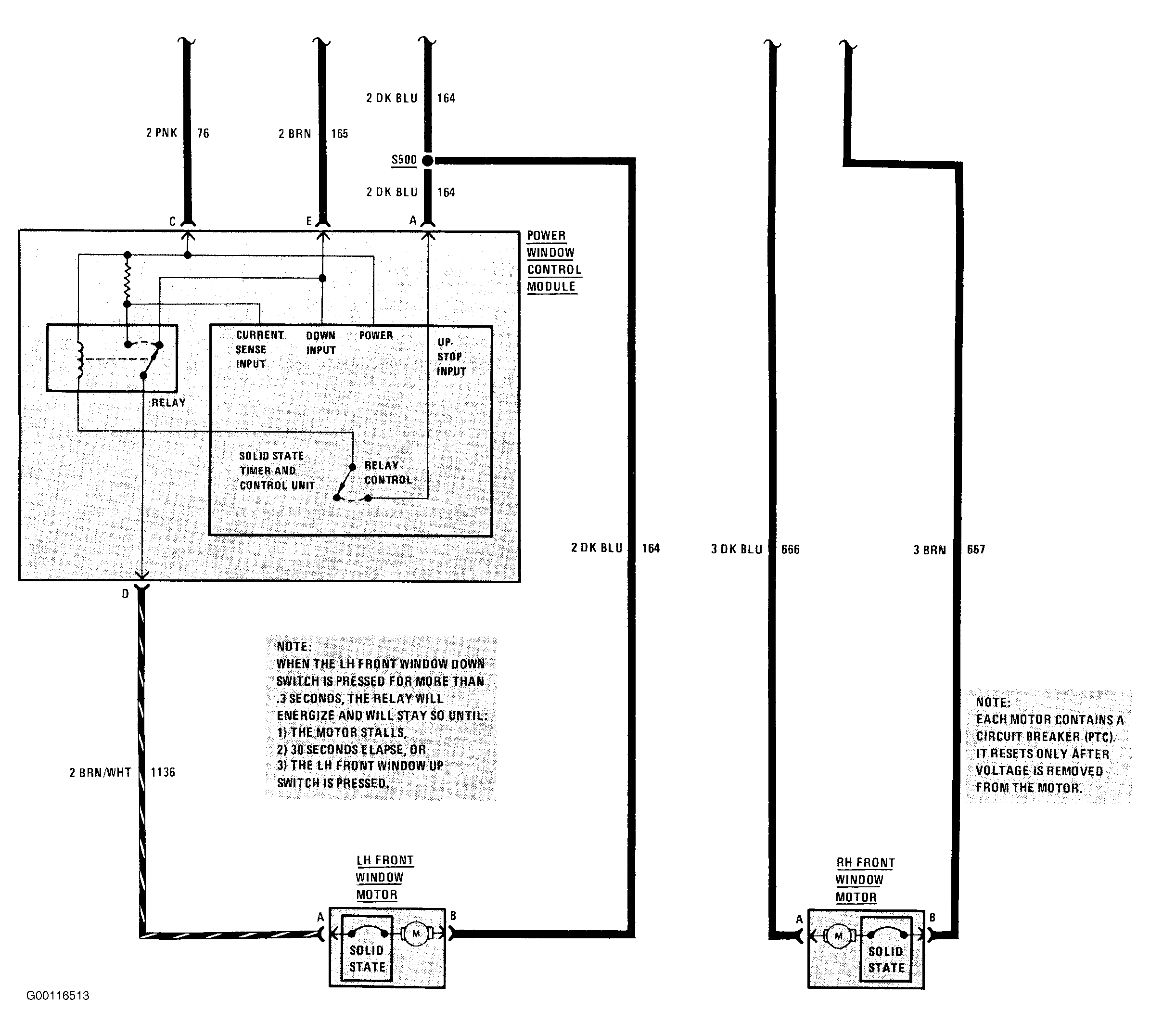

Fig 2: Power Window System Wiring Diagram (Cutlass Ciera & Cutlass Cruiser, 2-Door - 1991, 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

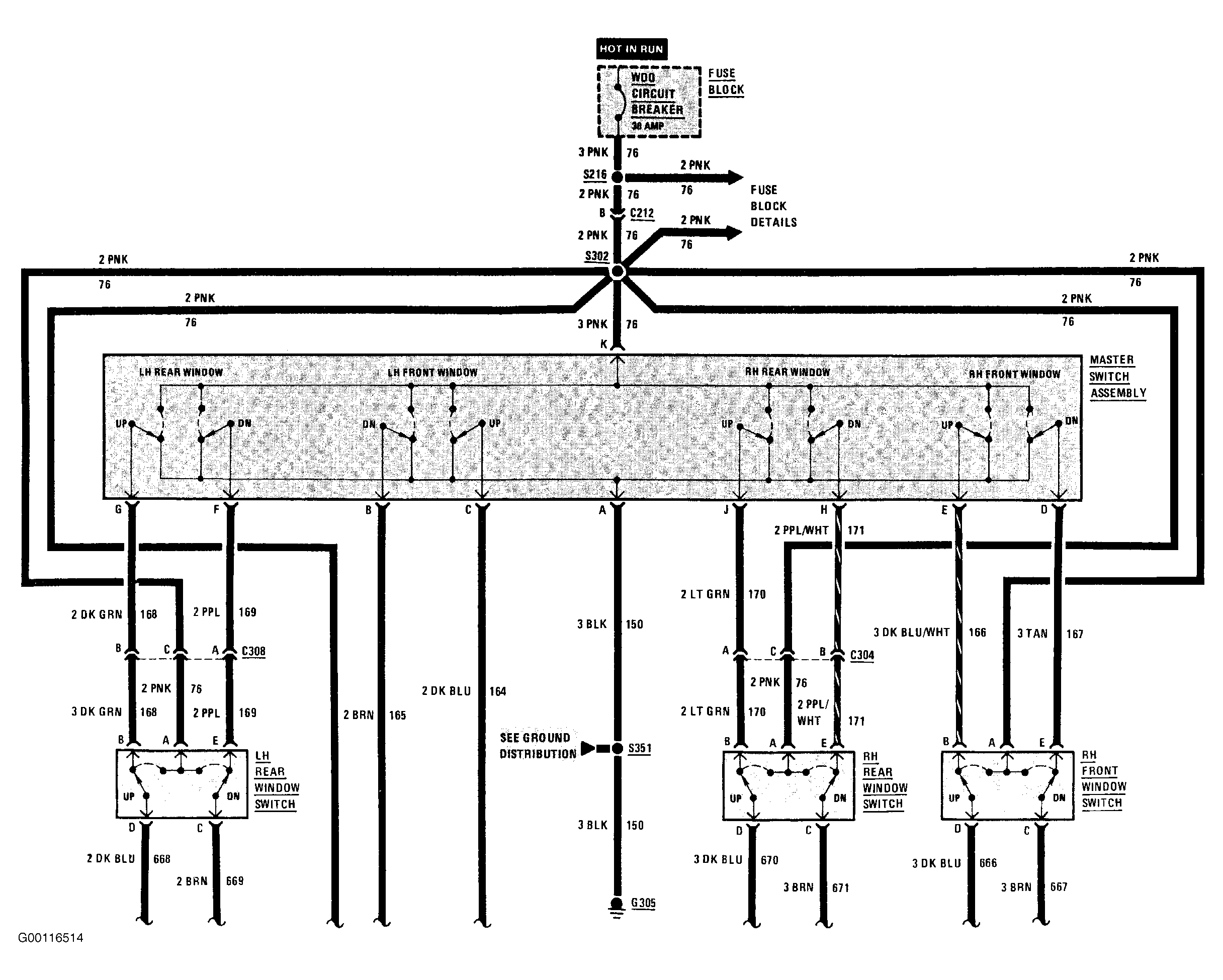

Fig 3: Power Windows System Wiring Diagram (Cutlass Ciera & Cutlass Cruiser, 4-Door - 1991-92, 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

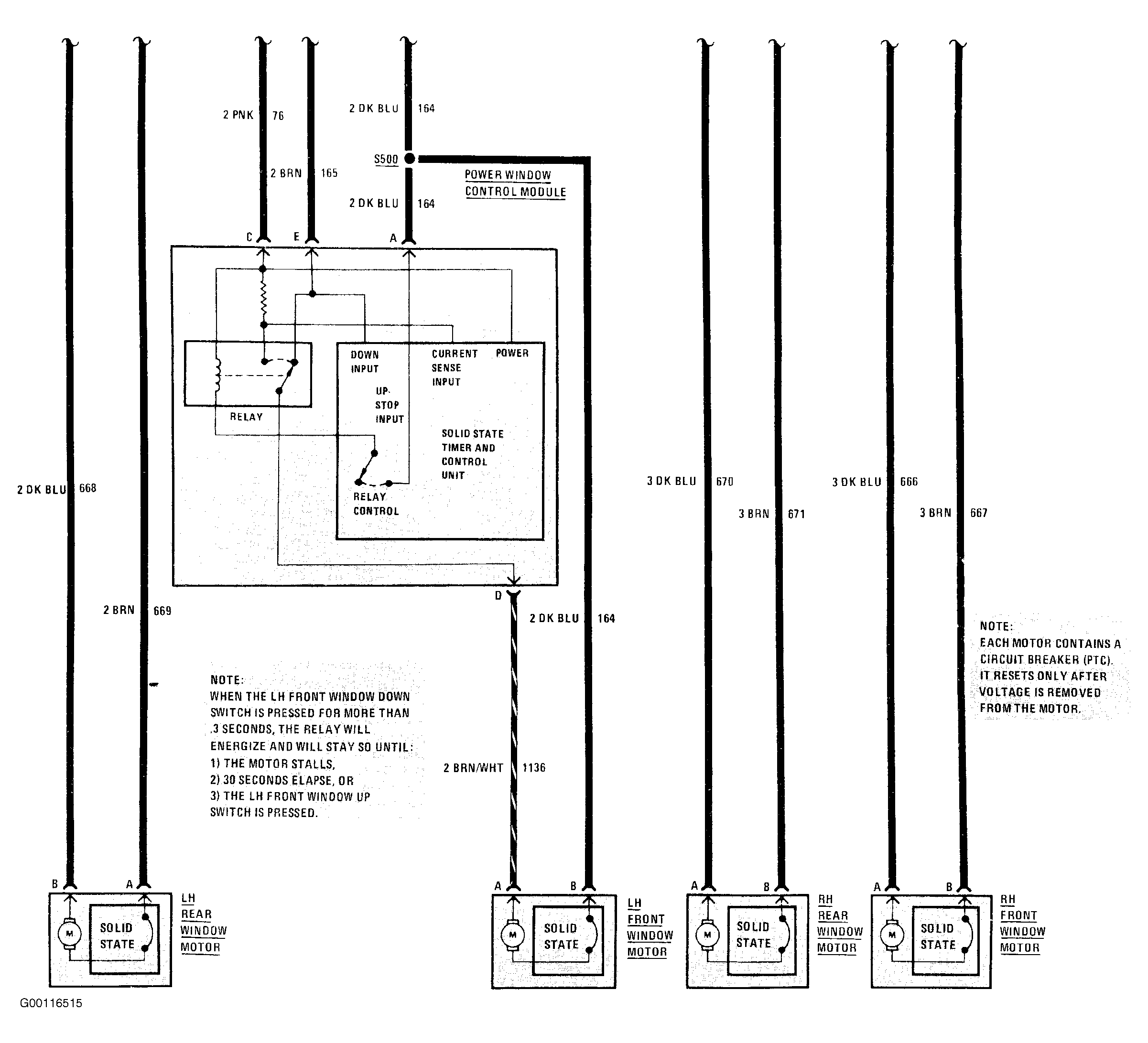

Fig 4: Power Windows System Wiring Diagram (Cutlass Ciera & Cutlass Cruiser, 4-Door - 1991-92, (2 of 2)

Courtesy of GENERAL MOTORS CORP.
