Trim Panel: Removal

  1. Remove all door inside handles.
  2. Remove door inside locking rod knob. See LOCK KNOB  .

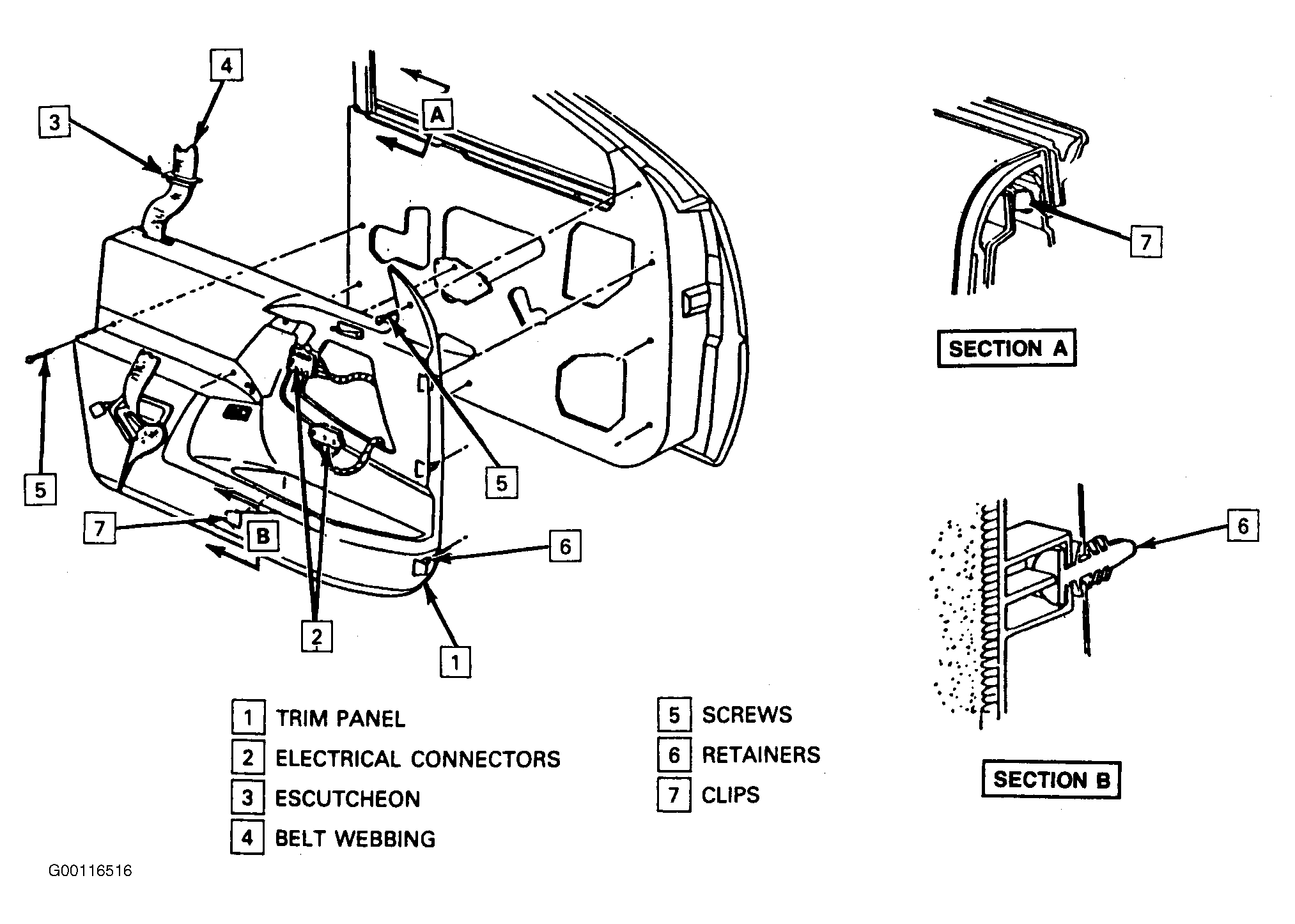

  3. Remove screws inserted through door armrest into door inner panel or armrest hanger support brackets. See Figure .
  4. On models with remote control mirror assemblies, remove remote mirror escutcheon and disengage end of mirror control cable from escutcheon.
  5. Disconnect wire harness at switch assembly.
  6. Remove control handle escutcheon screws.
  7. Remove screws, plastic retainers and clips from perimeter of door trim pad using J 24595-B and a screwdriver. See SPECIAL TOOLS  .
  8. Remove escutcheon from trim panel.
  9. Pass belt webbing through upper and lower slits in door trim panel.
  10. To remove trim panel, push trim panel upward and outboard to disengage from door inner panel at the beltline.
