Component Locations

COMPONENT LOCATIONS

Component Location
Fuse Block Behind Right Side Of Instrument Panel. See Fig 1
Window Motor In Front Of Respective Door. See Fig 2
Power Window Control Module Behind Instrument Panel, Next To Left Shroud
C212 (8 Cavity) Behind Left Side Of Instrument Panel, Near Shroud. See Fig 3 .
C304 (3 Cavity, 1991) Behind Instrument Panel, At Right Shroud, Near Center Access Hole. See Fig 2
C304 (6 Cavity, 1992) Behind Instrument Panel, At Right Shroud, Near Center Access Hole. See Fig 4
C308 (3 Cavity, 1991) Behind Instrument Panel, At Left Shroud, Near Center Access Hole. See Fig 5
C307 (6 Cavity, 1991) Behind Instrument Panel, At Left Shroud, Near Center Access Hole. See Fig 6
G305 Behind Instrument Panel, At Right Shroud, Near Door Lock Relay. See Fig 2
S216 In Instrument Panel Harness, Behind Instrument Cluster. See Fig 3
S302 In Crosscar Harness, At Left Shroud. See Fig 5
S351 (Coupe) In Crosscar Harness, Near Right Windshield Pillar. See Fig 7
S351 (Sedan/Wagon) In Crosscar Harness, Behind Right Side Of Instrument Panel At Base Of Windshield Pillar. See Fig 2
S500 In Crosscar Harness, At Left Shroud. See Fig 8

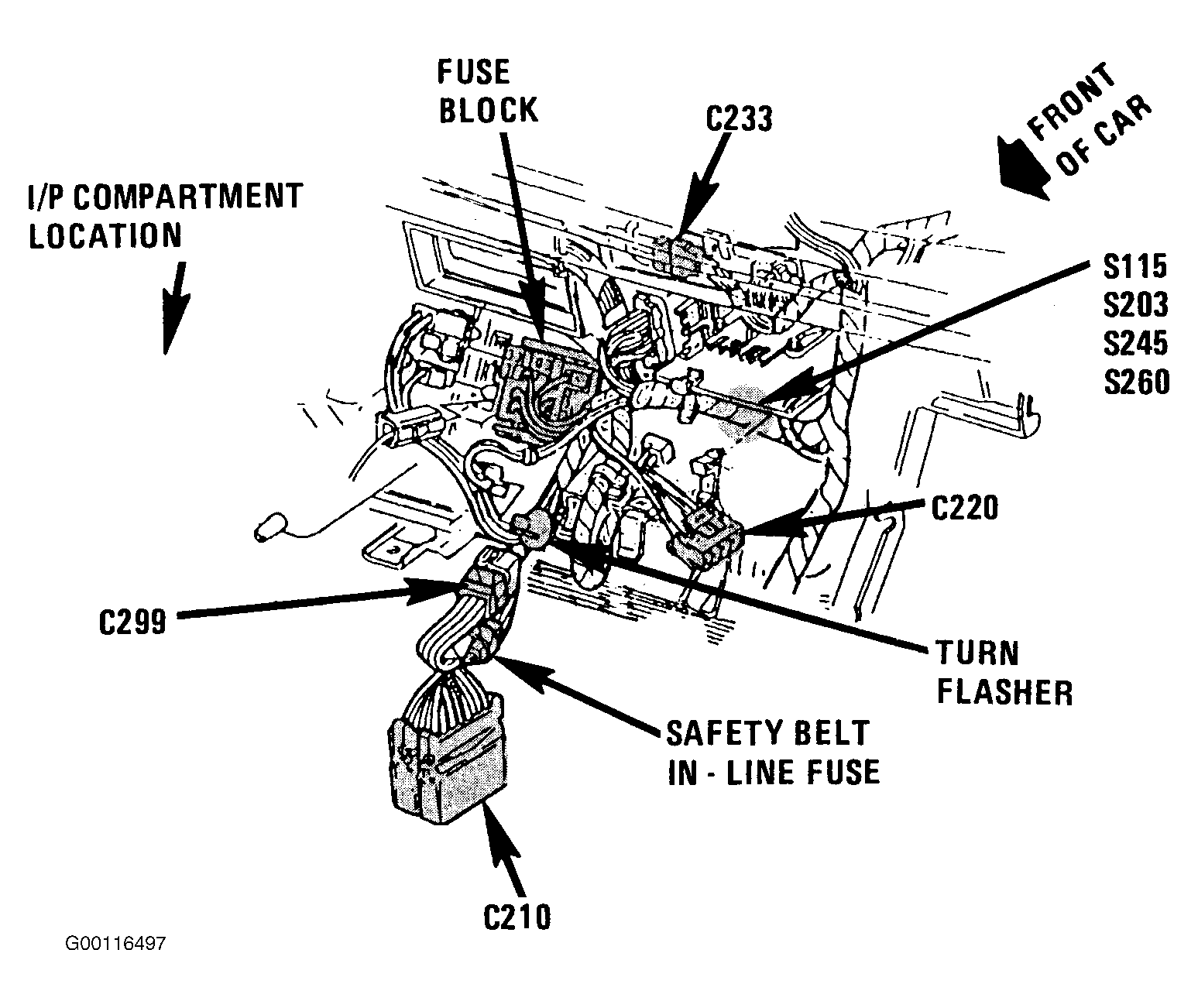

Fig 1: Locating Components Behind Center Of Instrument Panel
G00116497Courtesy of GENERAL MOTORS CORP.

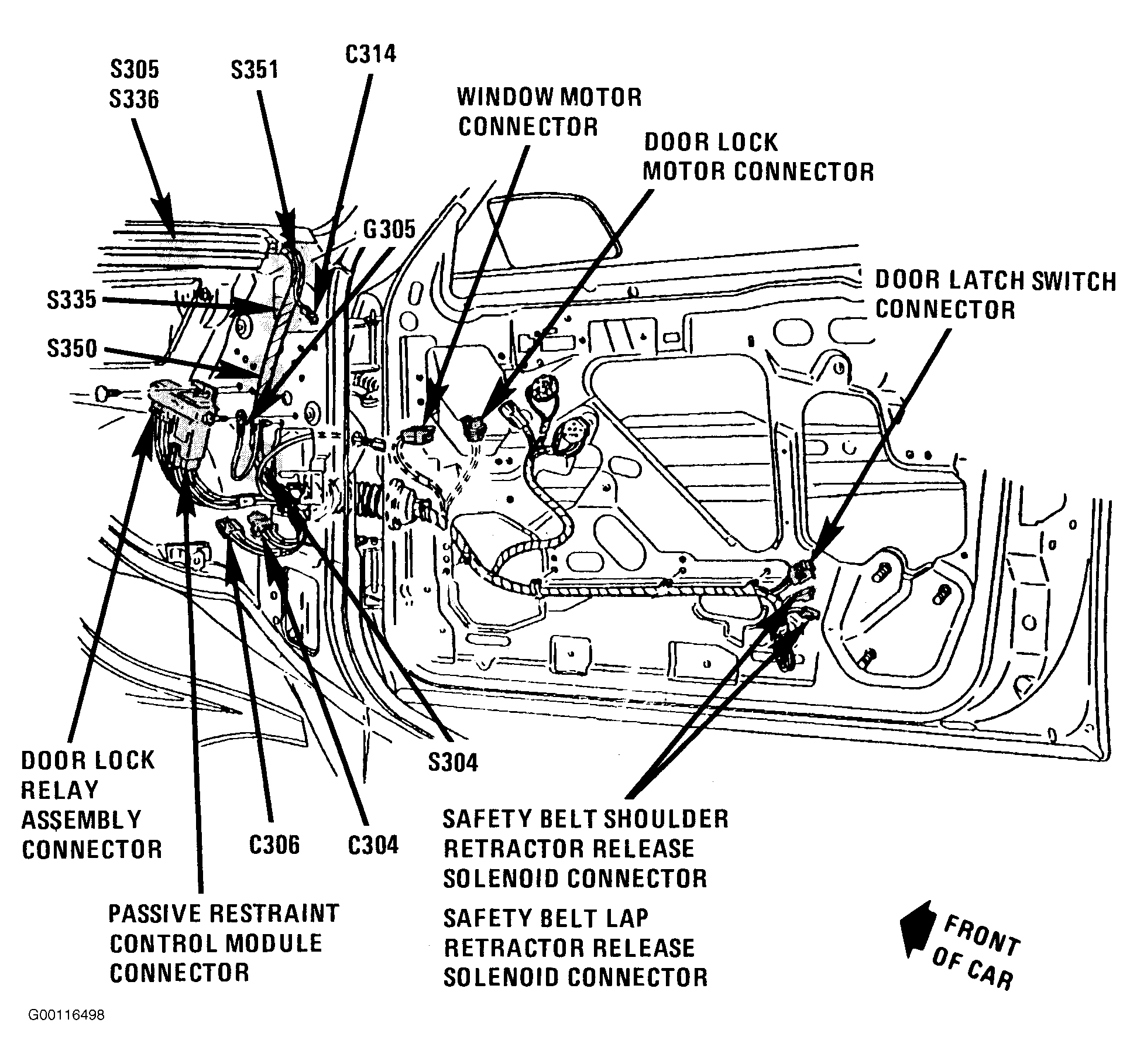

Fig 2: Locating Right Shroud & Door Components (Sedan/Wagon)
G00116498Courtesy of GENERAL MOTORS CORP.

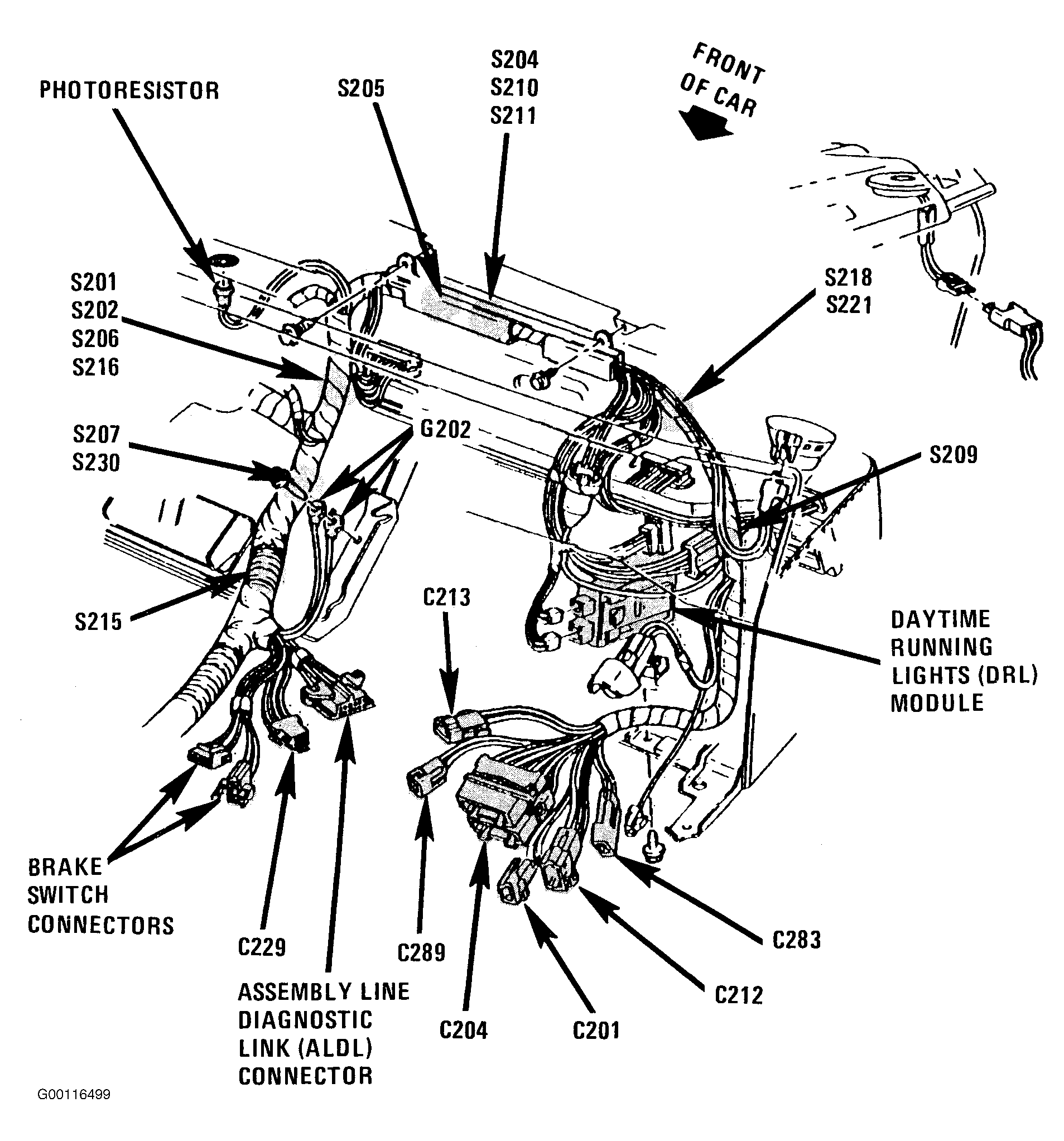

Fig 3: Locating Components Behind Left Side Of Instrument Panel
G00116499Courtesy of GENERAL MOTORS CORP.

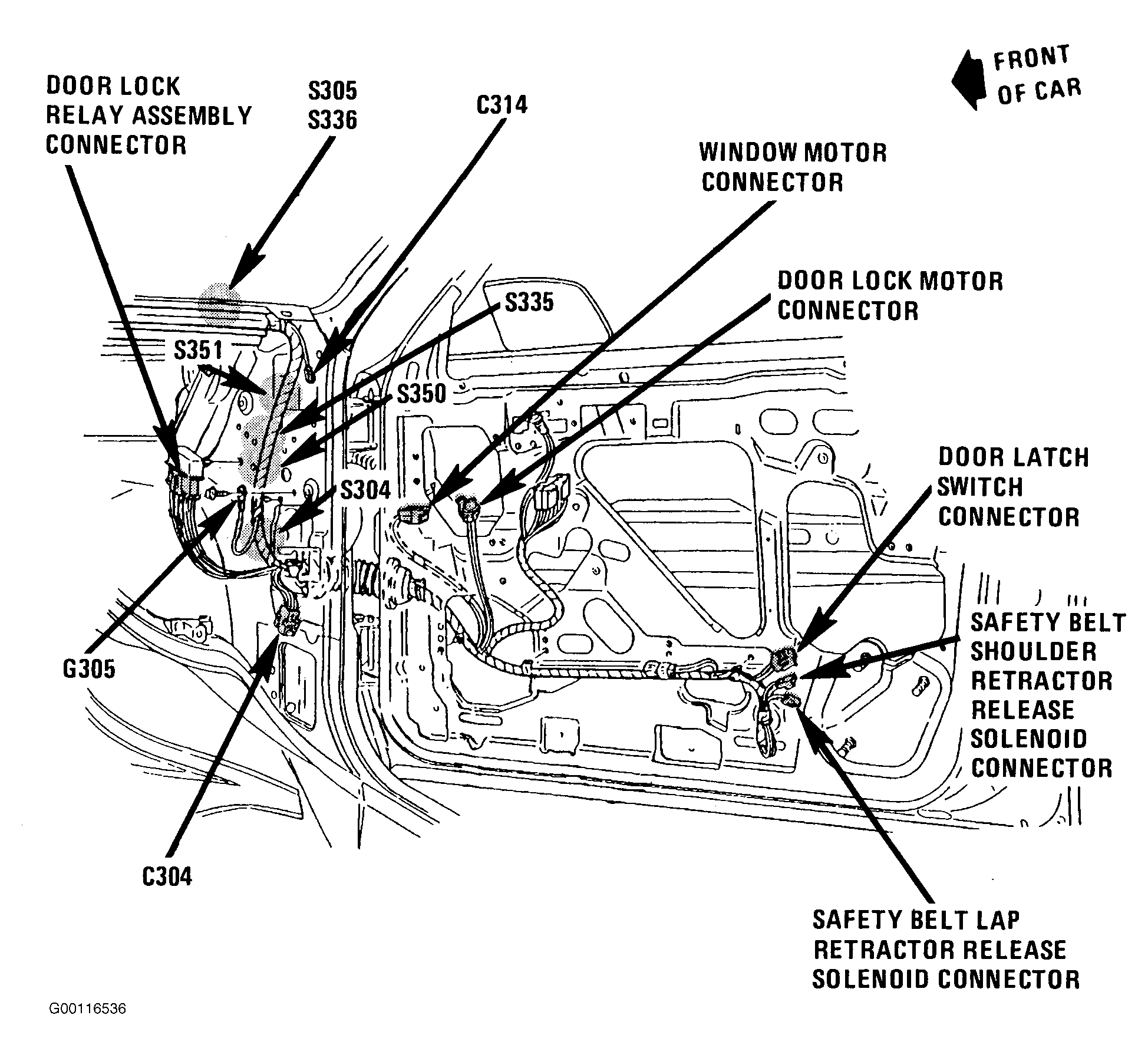

Fig 4: Locating Right Shroud & Door Components (1992)
G00116536Courtesy of GENERAL MOTORS CORP.

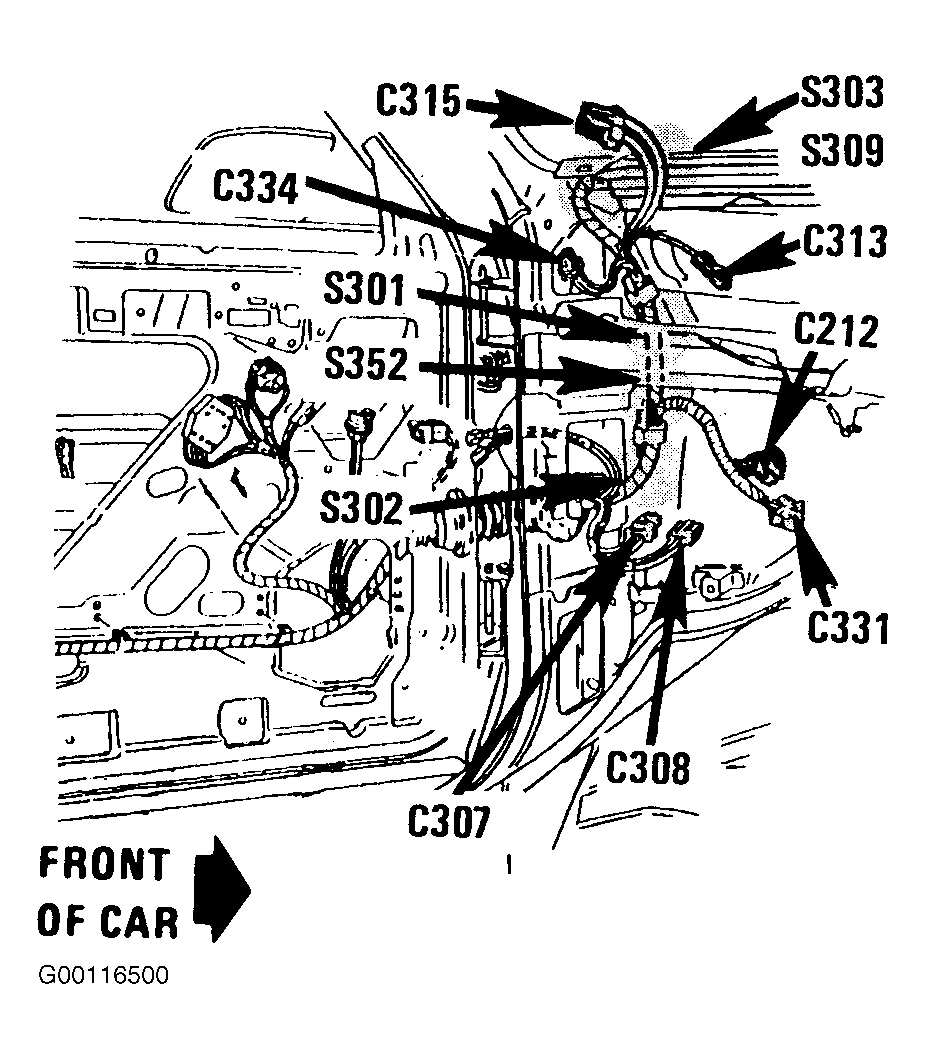

Fig 5: Locating Left Shroud Components (Sedan/Wagon)
G00116500Courtesy of GENERAL MOTORS CORP.

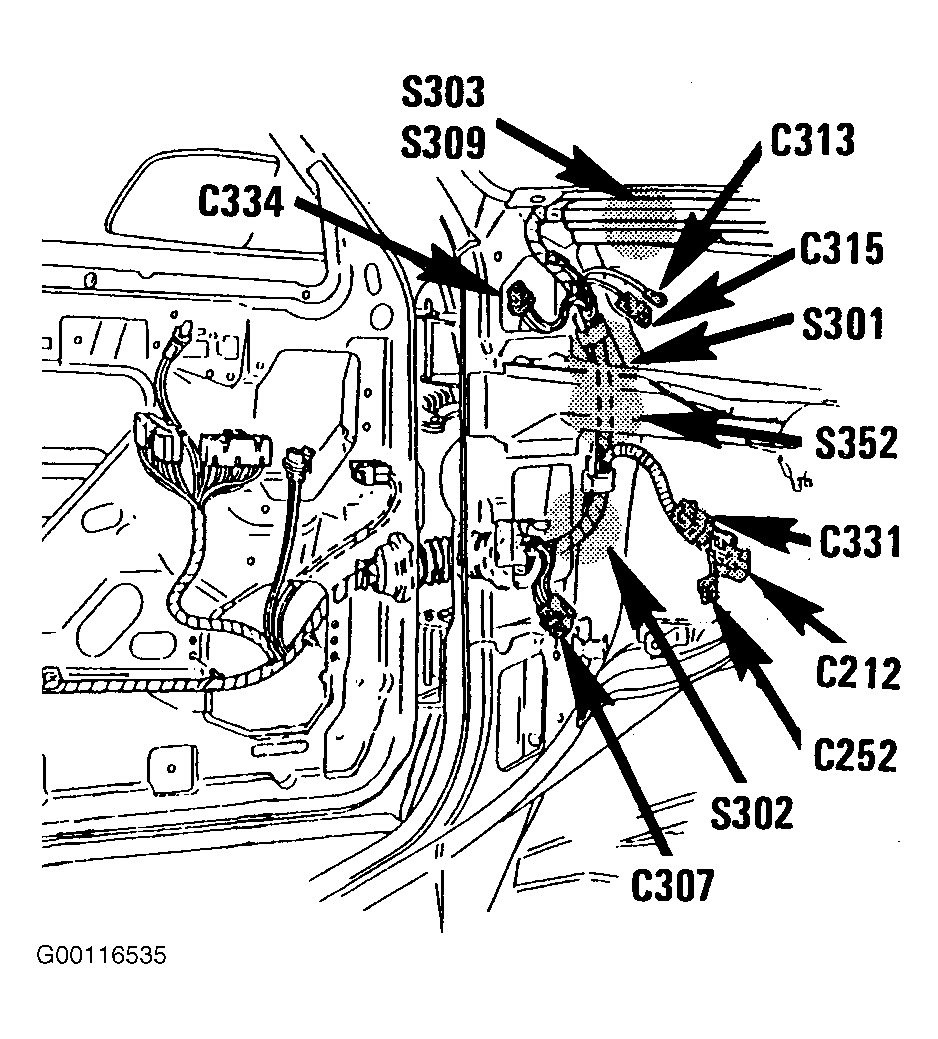

Fig 6: Locating Left Shroud Components (1992)
G00116535Courtesy of GENERAL MOTORS CORP.

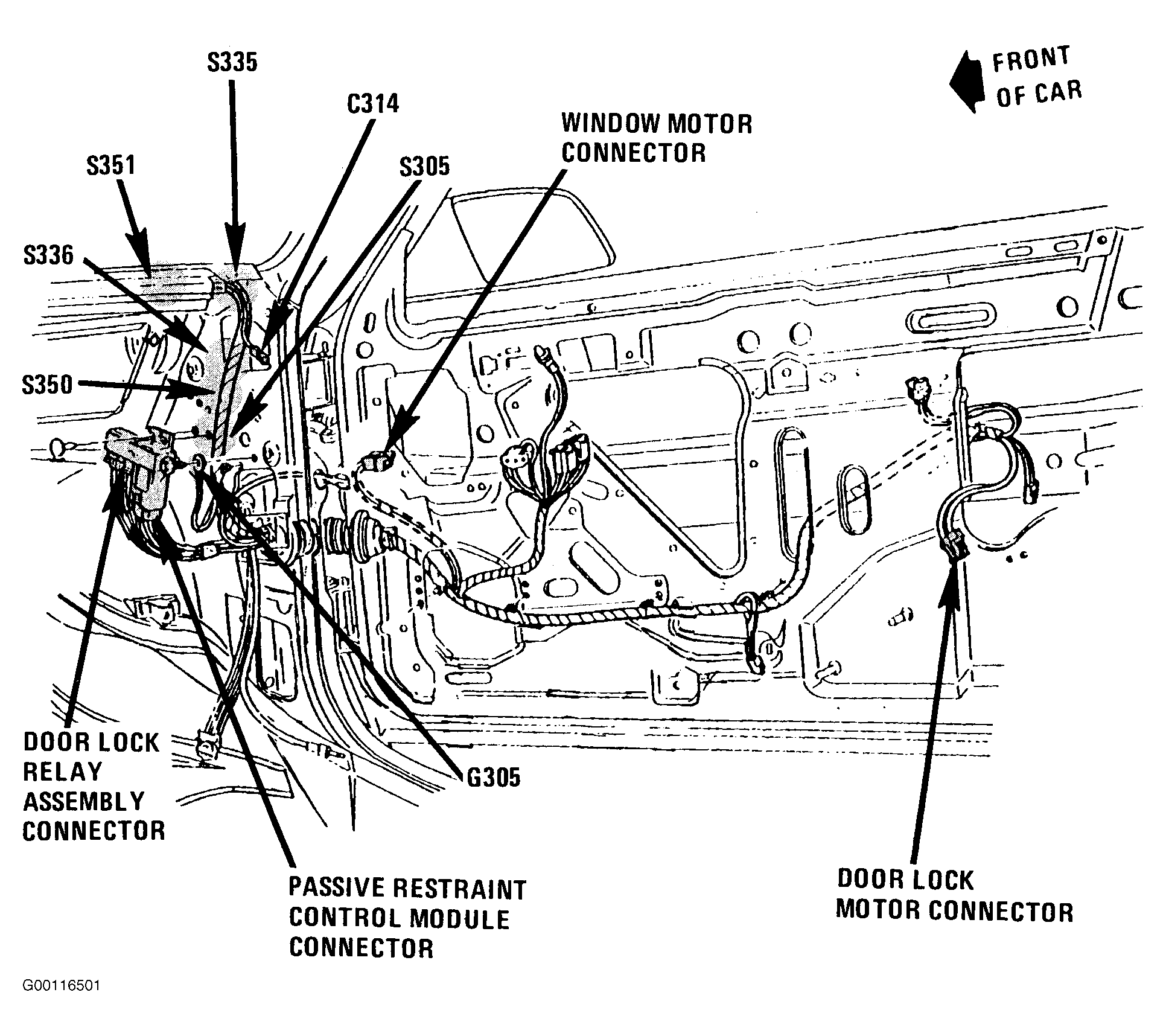

Fig 7: Locating Right Shroud & Door Components (Coupe, 1991)
G00116501Courtesy of GENERAL MOTORS CORP.

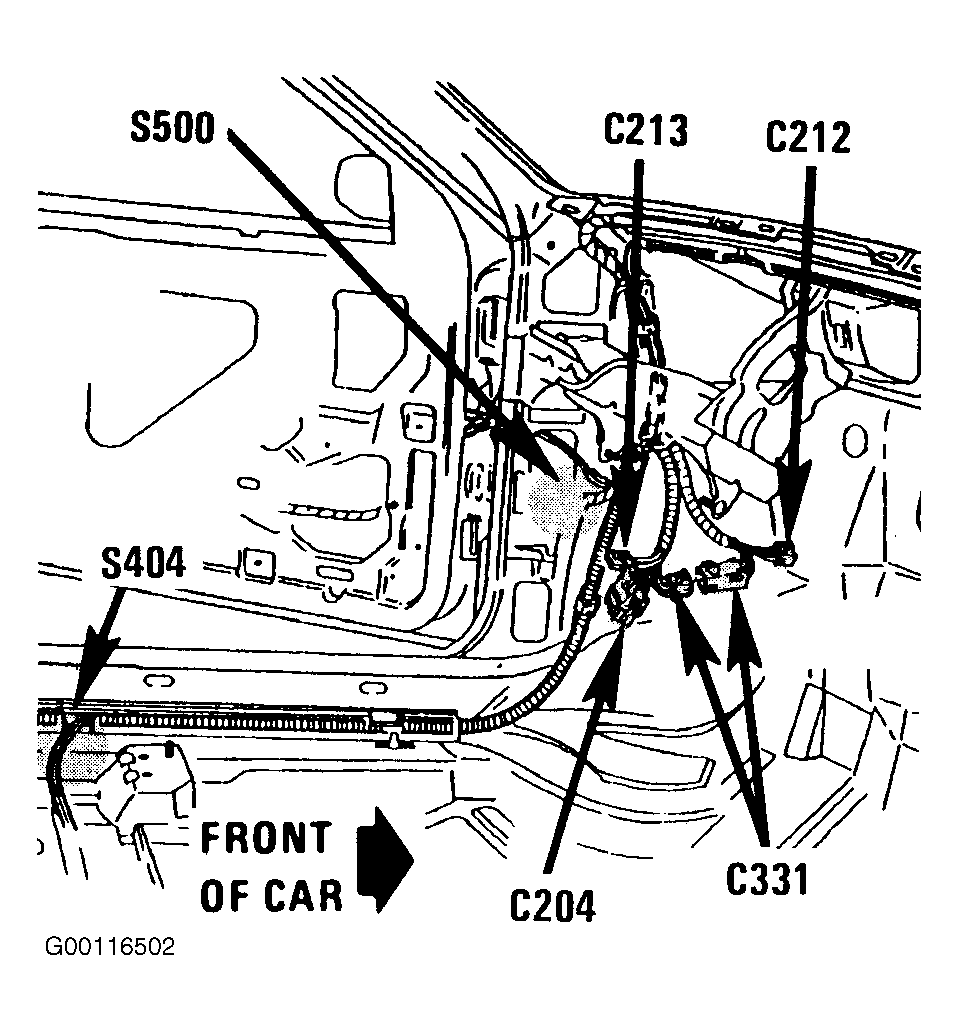

Fig 8: Locating Left Shroud Components
G00116502Courtesy of GENERAL MOTORS CORP.
