Power Window Switch: Installation

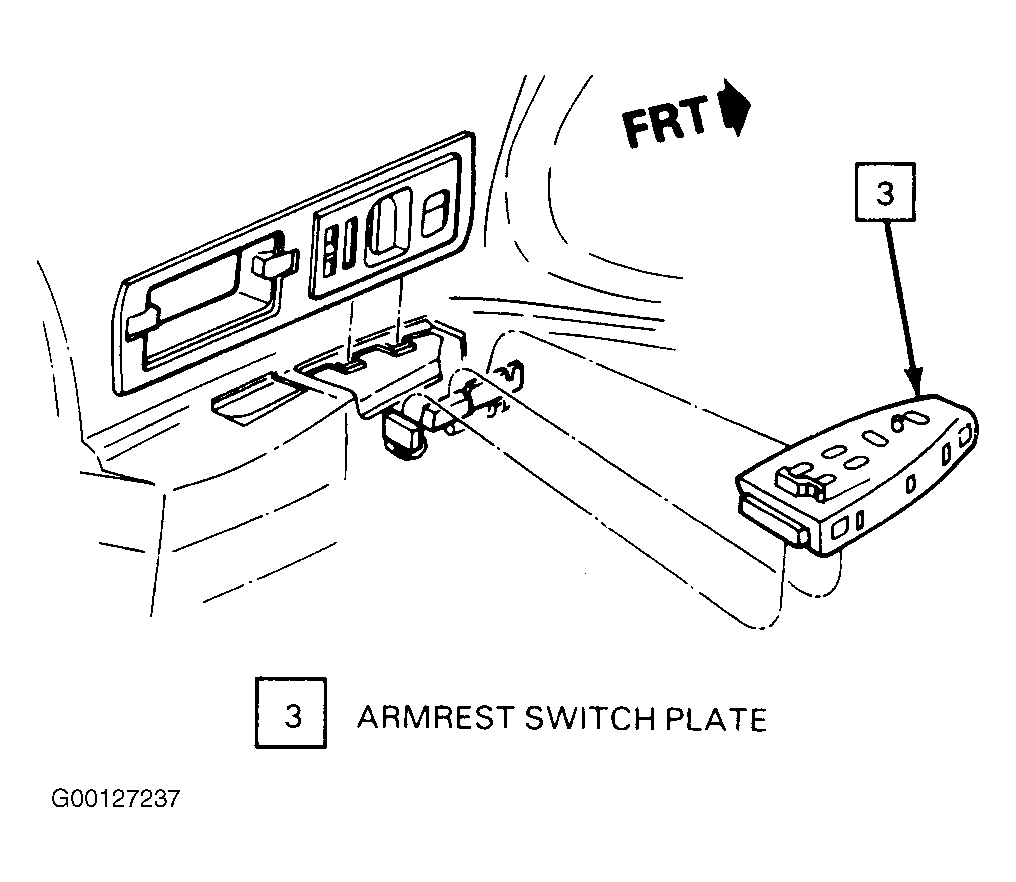

  1. Install switch to armrest switch plate (3). See Figure .
    • Install screws, if driver's side of vehicles
    • Snap to secure, is passenger side of vehicle.
  2. Install wiring harness connector to switch.
  3. Install armrest switch plate (3).
    • Snap in to secure.
  4. Install negative battery cable.
