Window Regulator: Installation

  1. Fit regulator (28) to the door.
  2. Fit regulator lift arm roller to the window mount sash.
  3. Install rivets (27) securing the regulator (28) to the door inner panel.
  4. Install water deflector.
  5. Install armrest bracket.
  6. Install door trim panel.

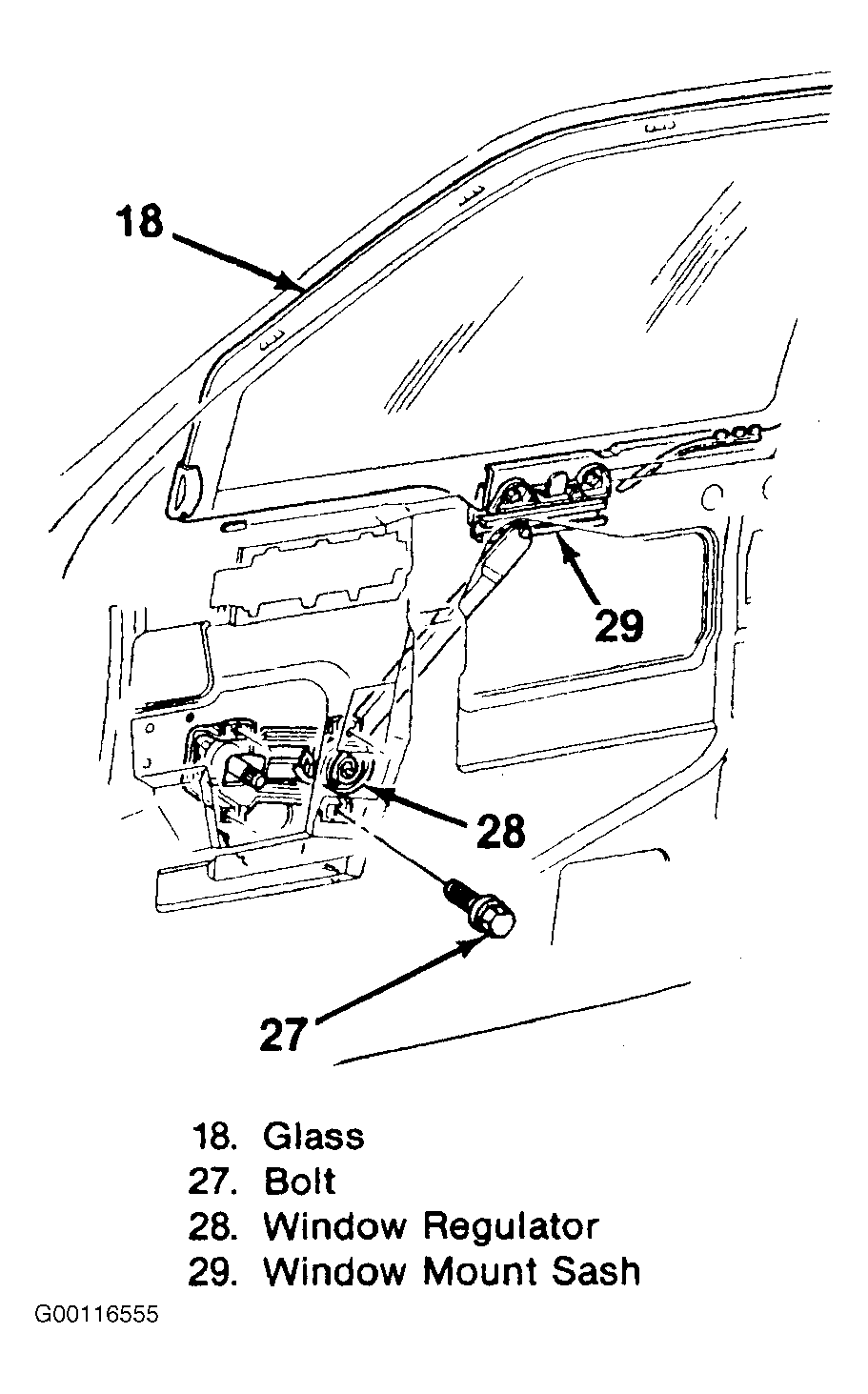

Fig 1: Identifying Front Door Window Regulator
G00116555Courtesy of GENERAL MOTORS CORP.

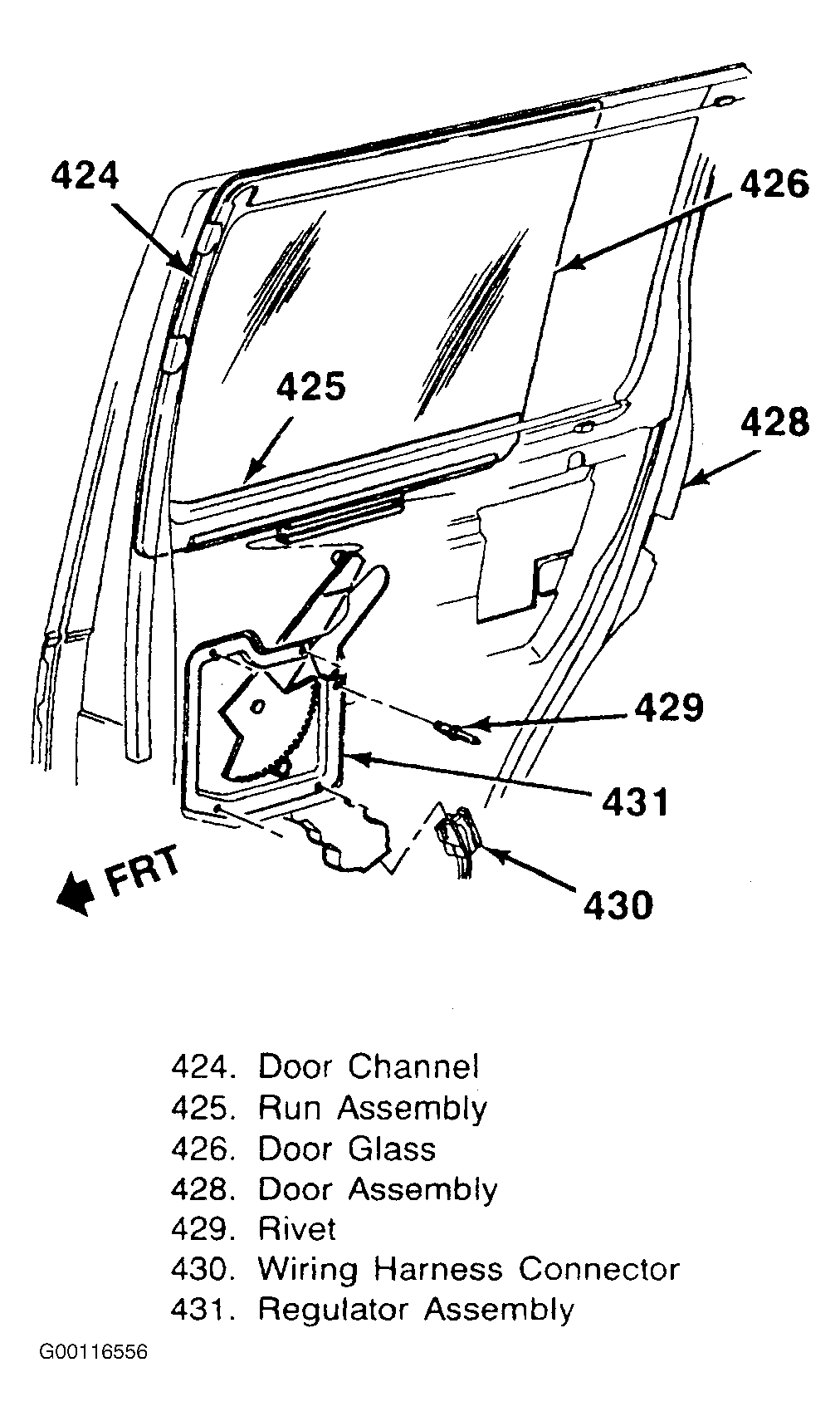

Fig 2: Identifying Rear Door Window Regulator
G00116556Courtesy of GENERAL MOTORS CORP.
