Component Locations
COMPONENT LOCATIONS

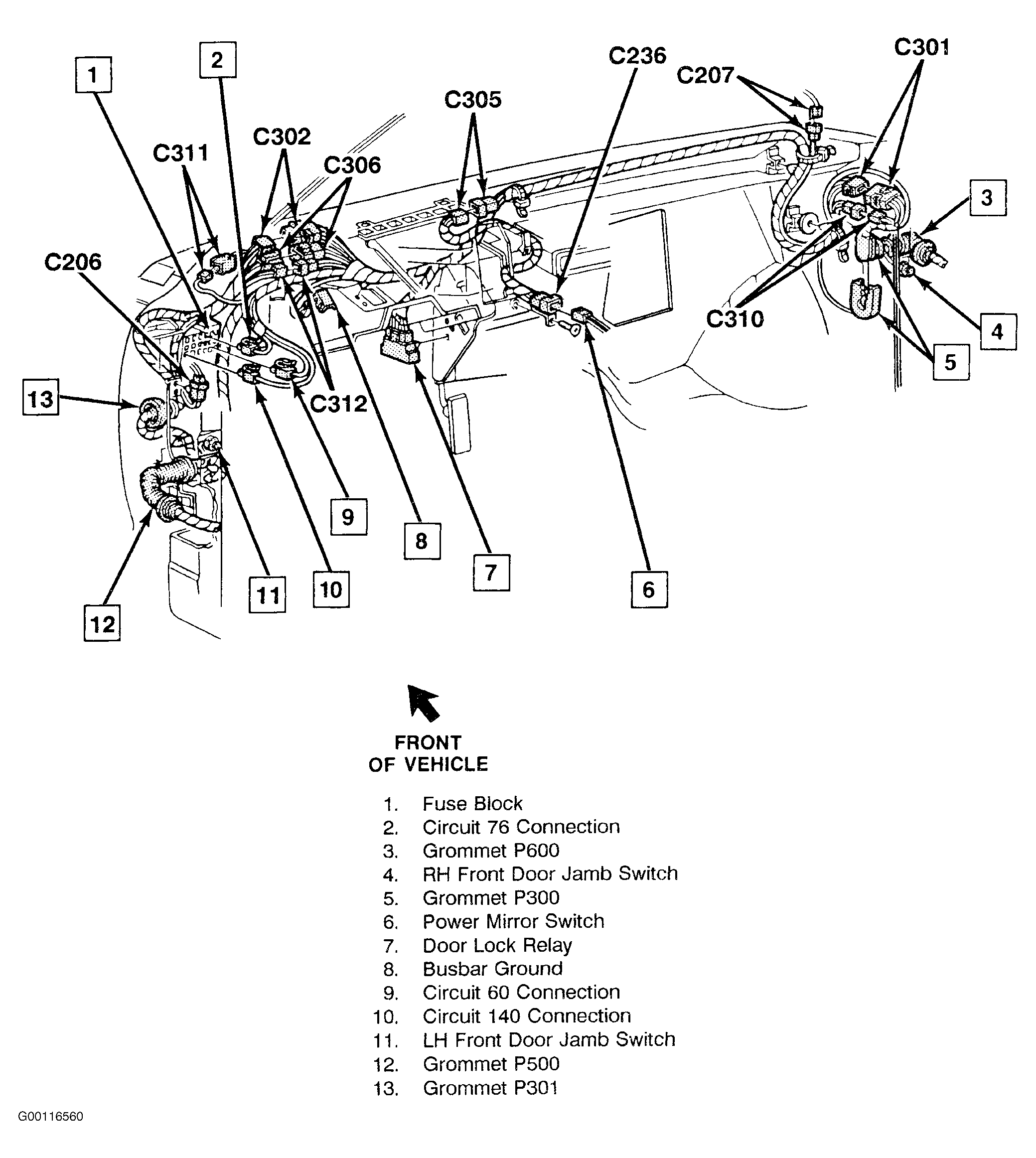

| Component | Location |
|---|---|
| Bus Bar Ground | Behind Left Hand Side Of I/P, On I/P Bracket. See Fig 1 . |
| Fuse Block | Behind Left Hand Side Of Instrument Panel. See Fig 2 . |

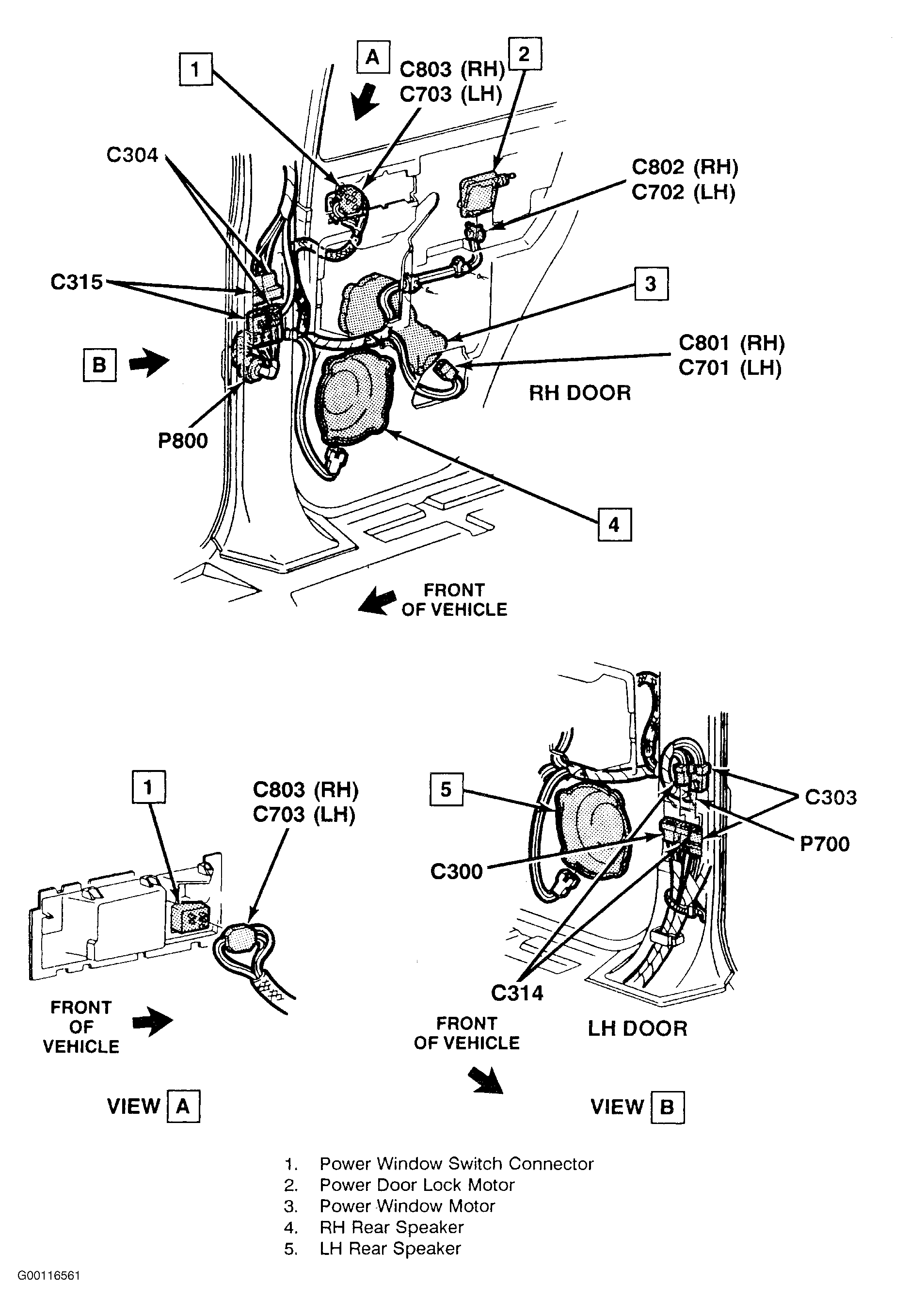

| Window Motors | At Rear Of Each Door. See Fig 3 & Fig 4 . |
| C301 | Behind Right Side Of I/P . See Fig 5 . |
| C302 | Behind Left Side Of I/P. See Fig 5 . |
| C303 | Left Hand B-Pillar. See Fig 4 . |
| C304 | Right Hand B-Pillar. See Fig 4 . |
| Grommet P300 | Front Of Right Hand Door. See Fig 5 . |
| Grommet P301 | Front Of Left Hand Door. See Fig 5 . |
| Grommet P500 | At Left Hand Door. See Fig 5 . |
| Grommet P600 | At Right Hand Door. See Fig 4 . |
| Grommet P700 | Left Hand Rear Door. See Fig 4 . |
| Grommet P800 | Right Hand Rear Door. See Fig 4 . |
