Removal (Model 700)

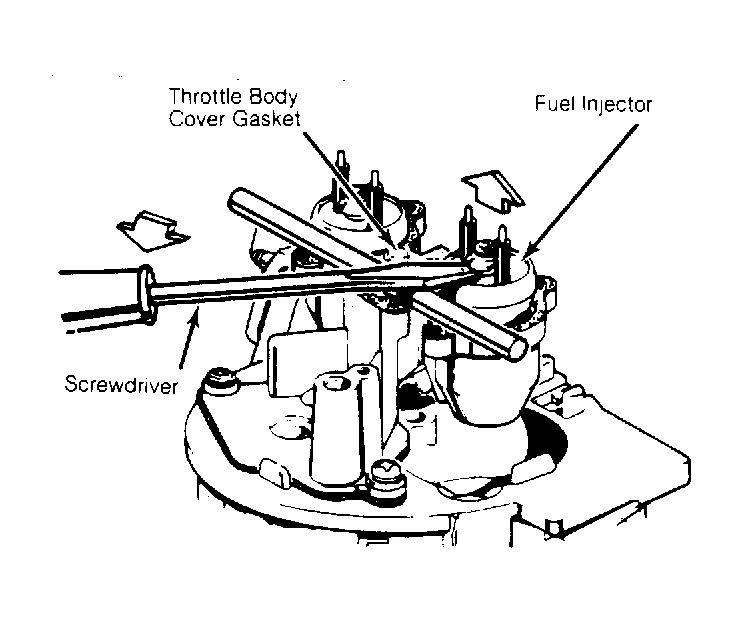

Relieve fuel pressure. See FUEL PRESSURE RELIEF (TBI)  under FUEL SYSTEM (TBI). Remove fuel injector retainer screw and remove retainer. Using screwdriver and fulcrum on side of injector opposite connector terminals, carefully pry injector out. See Figure . Remove upper and lower "O" rings and discard.
