Test E: Window Motor Test

For testing procedure, see Fig 1 .

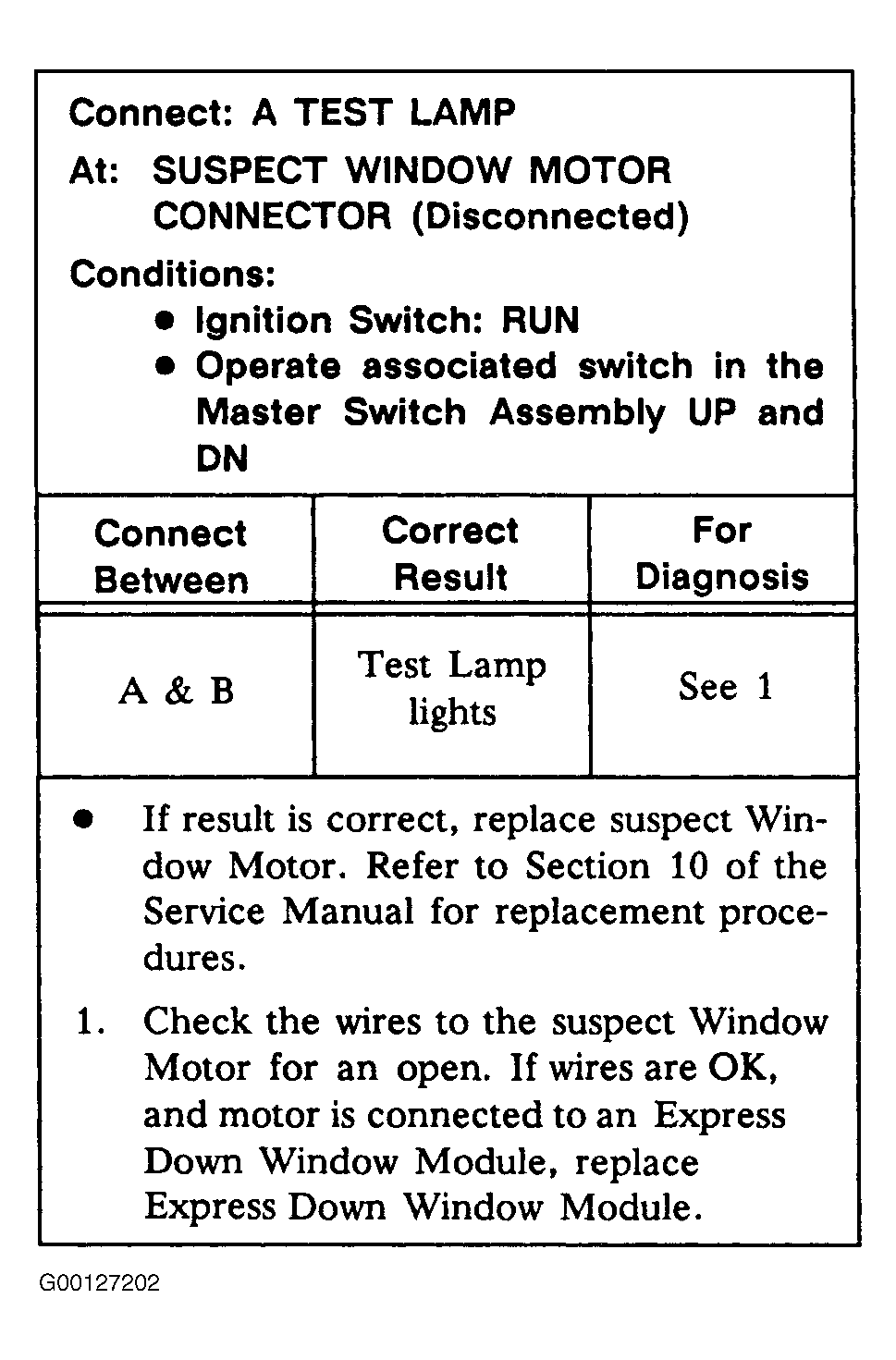

Fig 1: Test E: Window Motor Test

G00127202

Courtesy of GENERAL MOTORS CORP.
