Modulator Assembly: Reassembly

  1. Install modulator valve into case. See Fig 1 .
  2. Install NEW "O" ring seal onto modulator.
  3. Install modulator assembly into case.
  4. Install modulator retainer and bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS  .

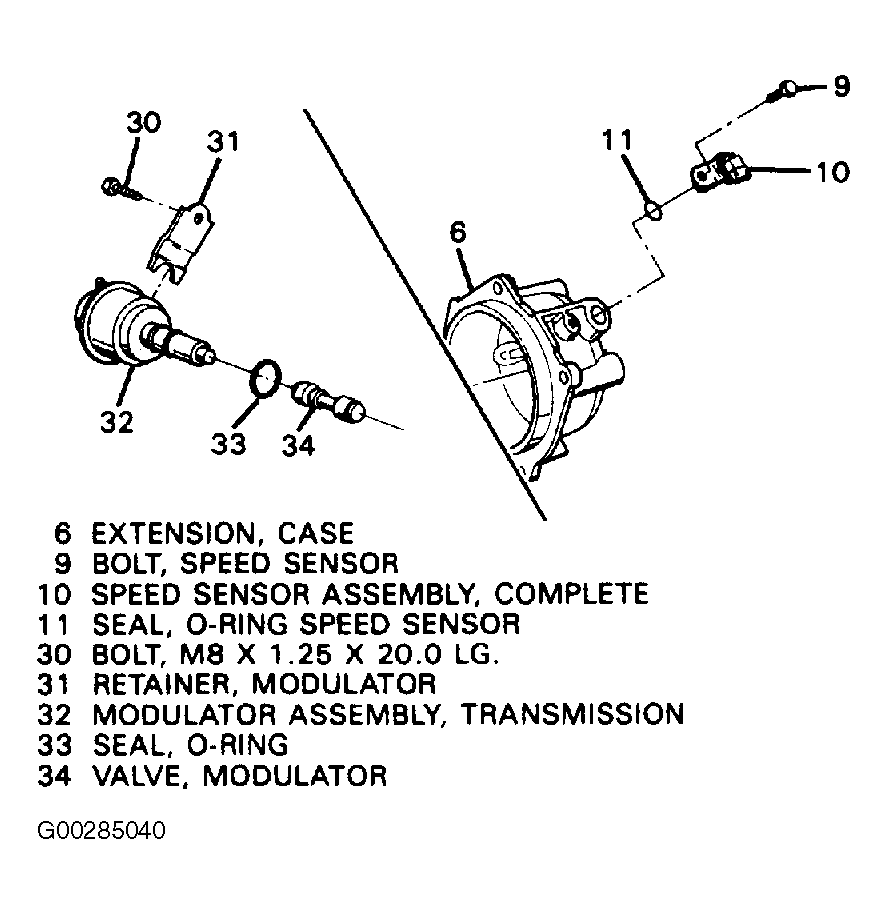

Fig 1: Installing Vacuum Modulator Assembly & Speed Sensor
G00285040Courtesy of GENERAL MOTORS CORP.
