Code EO68, Cruise System Problem Using Tech 1: Notes

The PCM-integrated cruise control system is designed to monitor itself to ensure that the desired cruise position and actual cruise position are equal to each other. Code EO68 will set when actual servo position sensor signal is 12 percent greater than desired servo position sensor signal for 1.5 seconds.

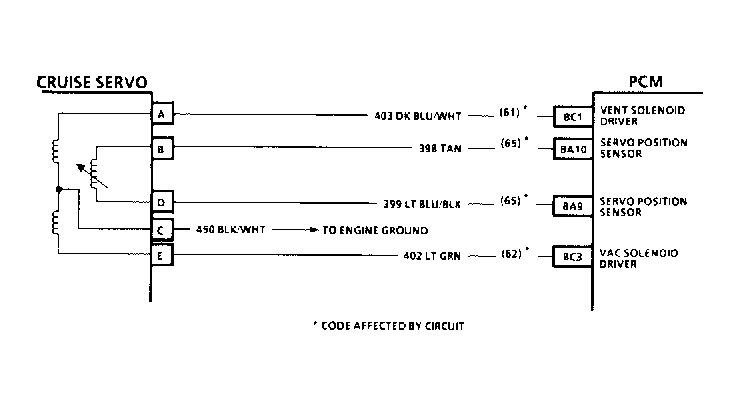

Fig 1: Code EO68, Schematic, Cruise System Problem Using Tech 1
G91C07465

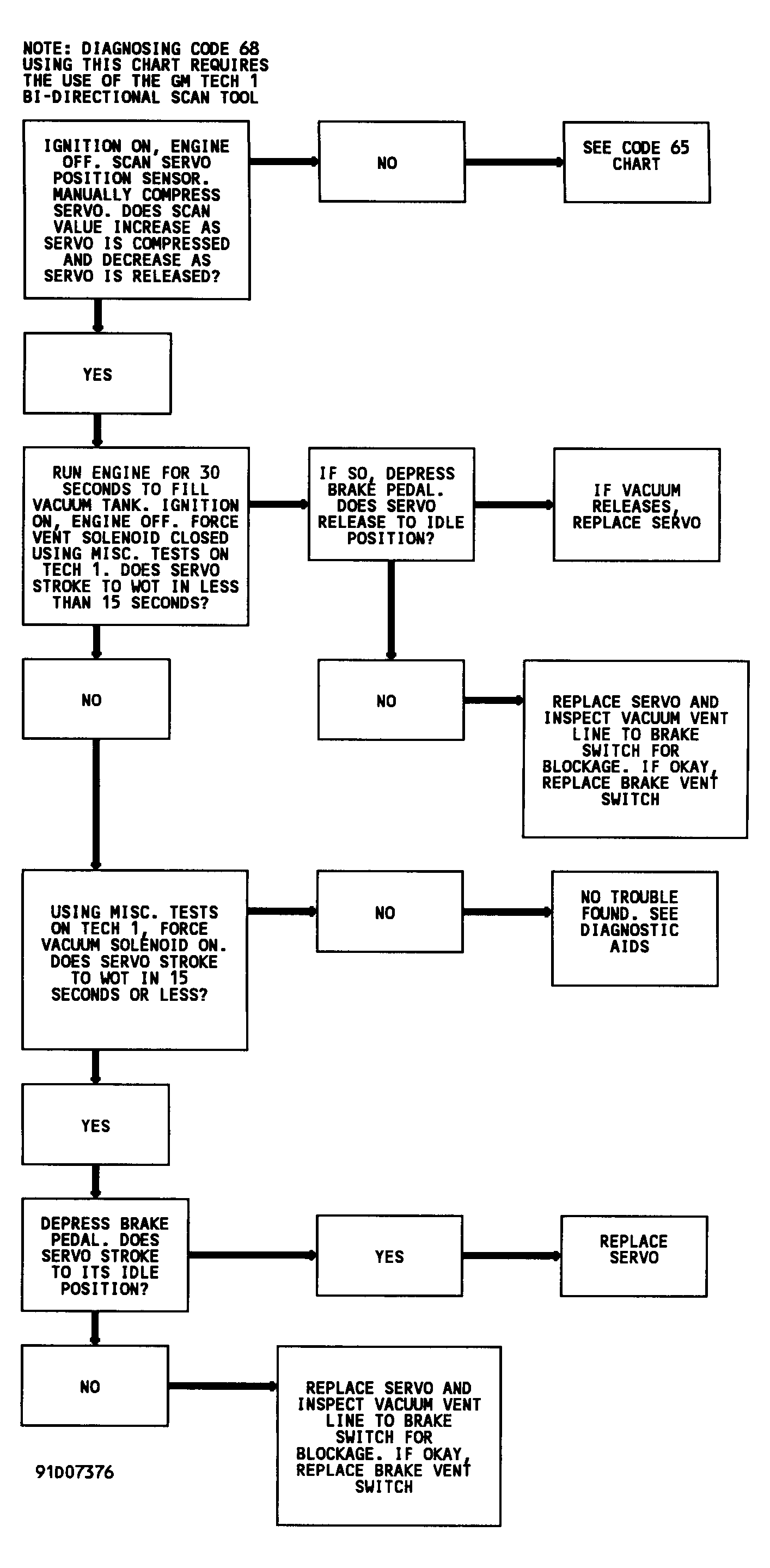

Fig 2: Code EO68, Flow Chart, Cruise System Problem Using Tech 1
G91D07376
