Diagnostic Aids

An intermittent may be caused by a poor connection, rubbed through wire insulation, or a wire broken inside the insulation. Also, check for backed out connector terminals or broken insulation spark reference circuit. If everything checks okay, try wiggling the related wiring harness and connectors while engine is idling. This may help to isolate the location of the malfunction.

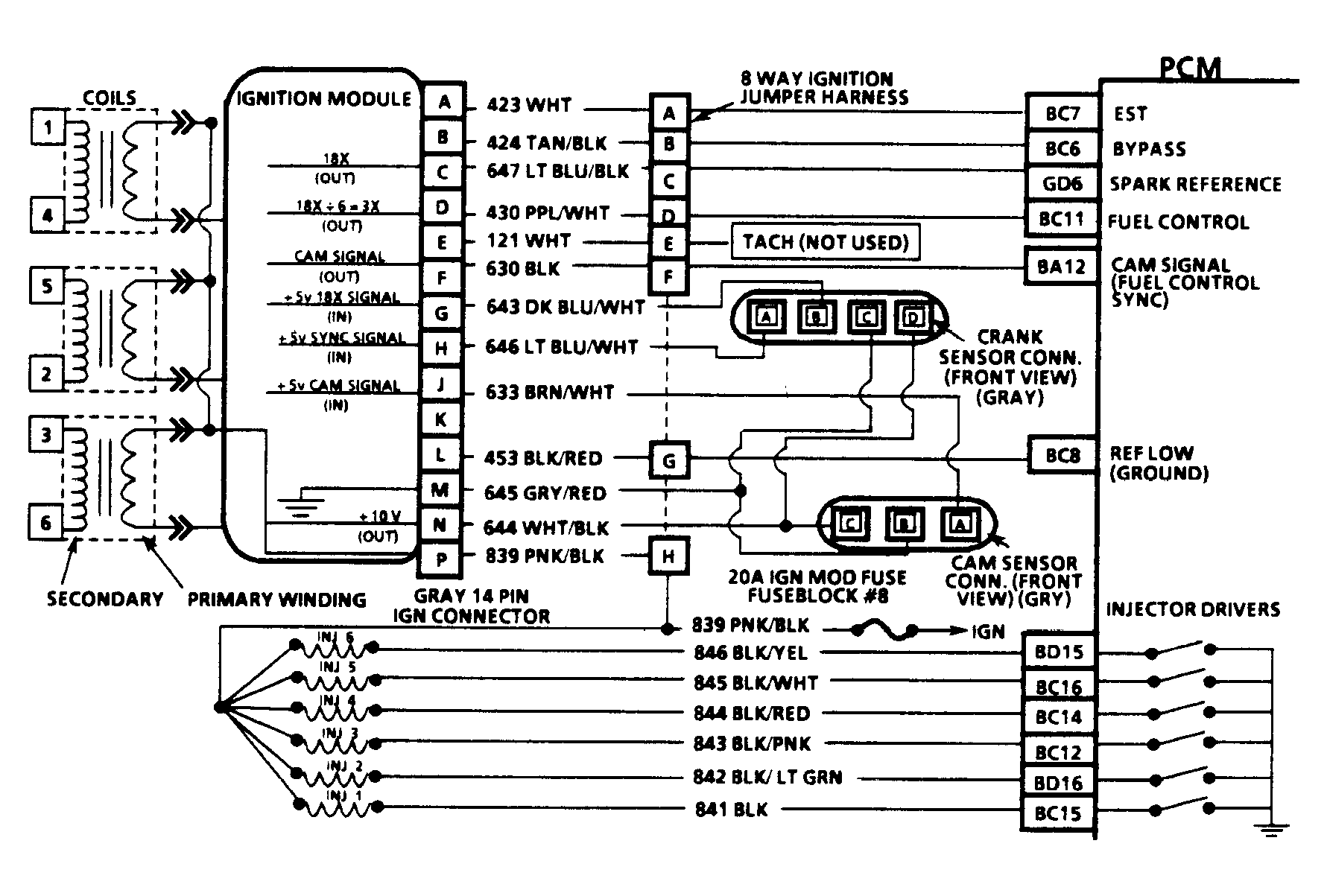

Fig 1: Code EO17, Schematic, RPM Signal Problem
G91G07491

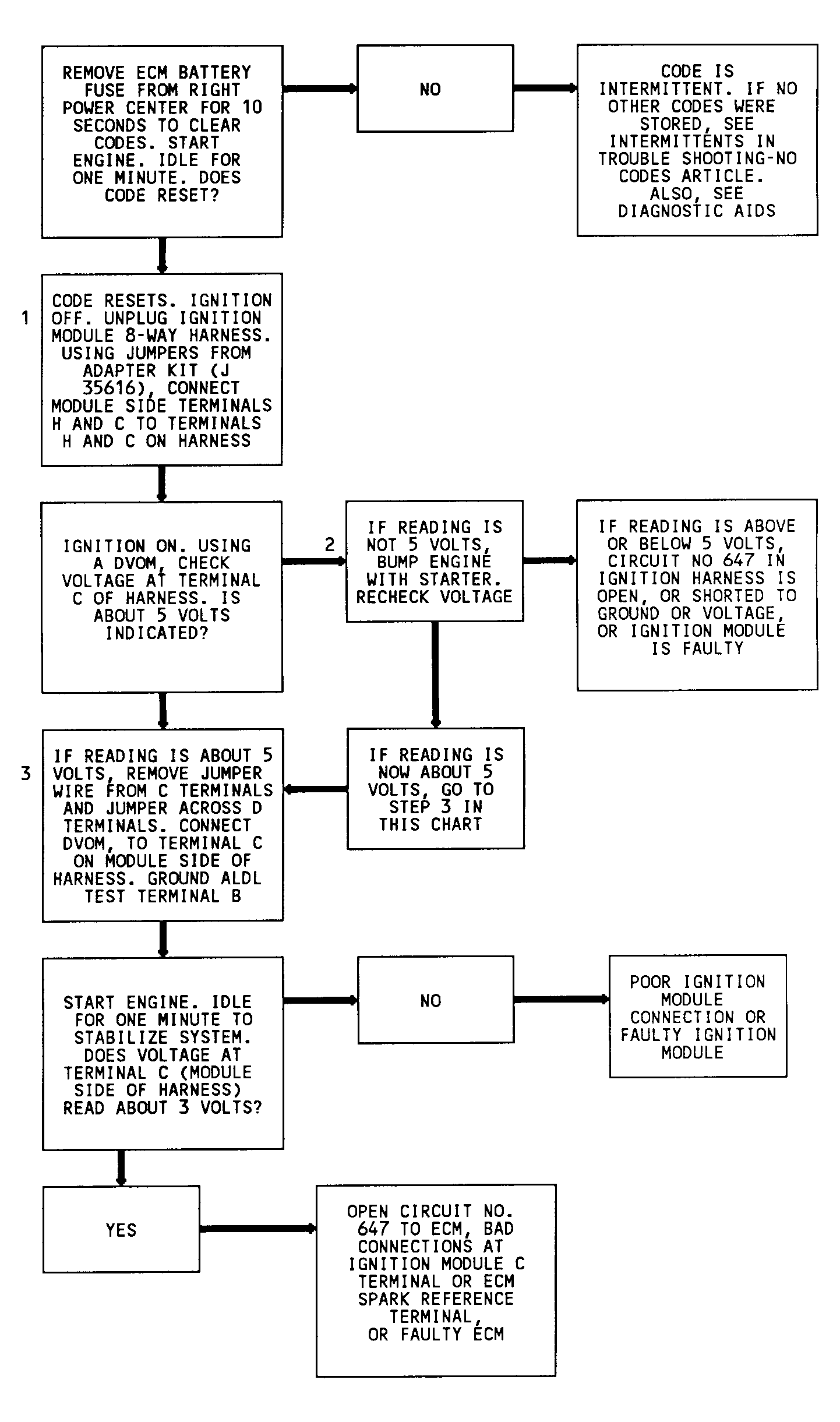

Fig 2: Code EO17, Flow Chart, RPM Signal Problem
G91C07286
