Note On Intermittents

Check connections at CRT/DID monitor and CRT controller. If both connections are clean and tight, either CRT/DID monitor or CRT controller could be at fault.

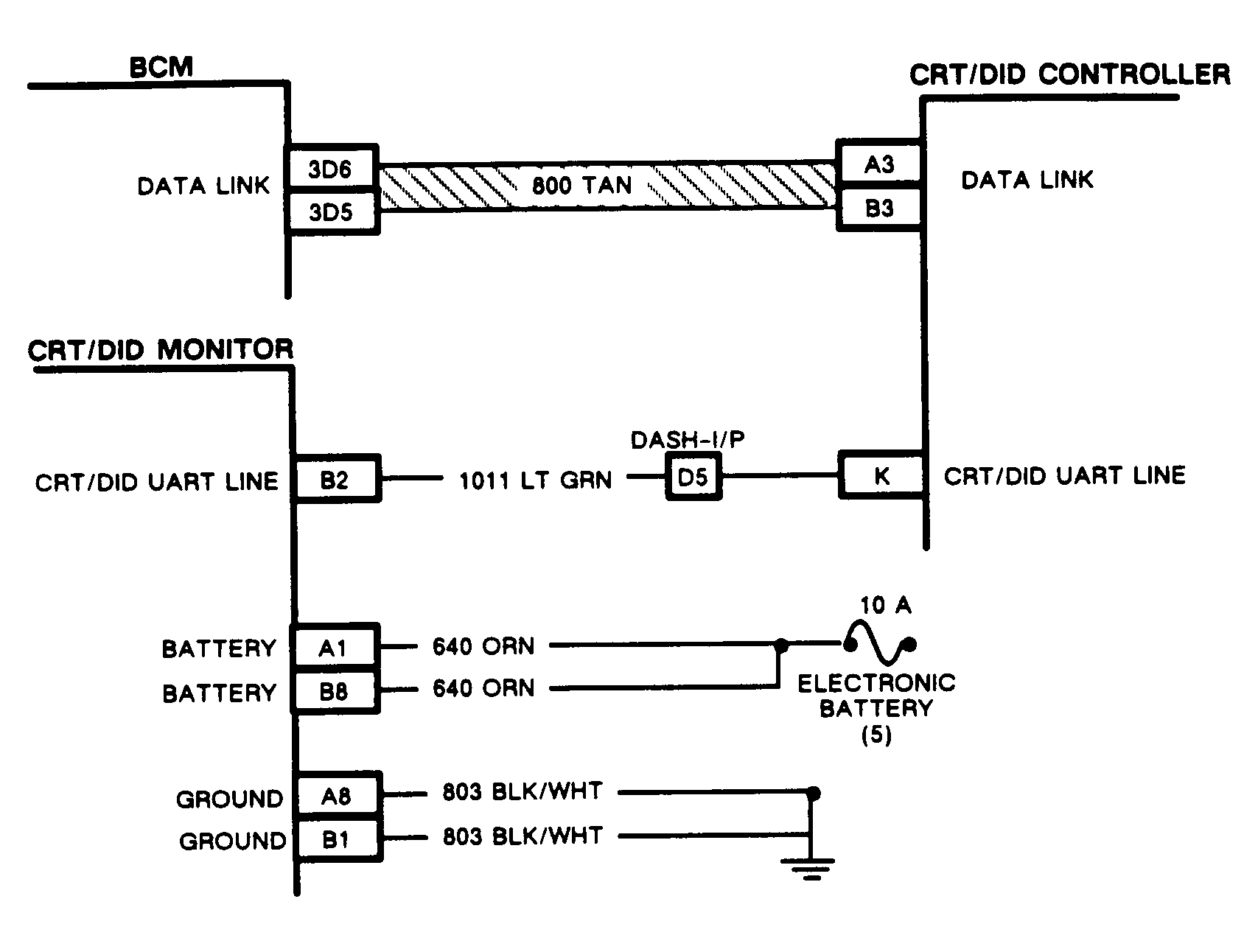

Fig 1: Code C710, Schematic, CRTC Switching Circuit Problem
G91B11933

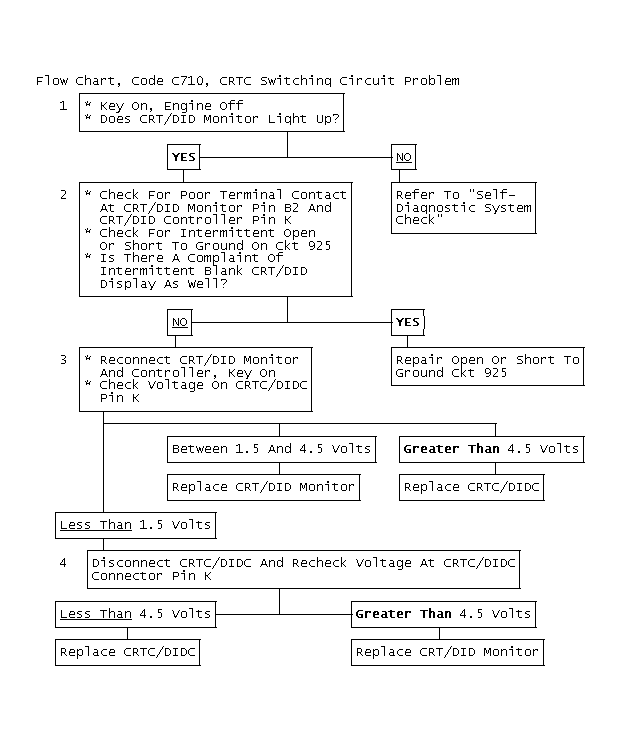

Fig 2: Flow Chart, Code C710, CRTC Switching Circuit Problem
GB0022703
