Test B: Master Switch Assembly Test

For testing procedure, see Fig 1 .

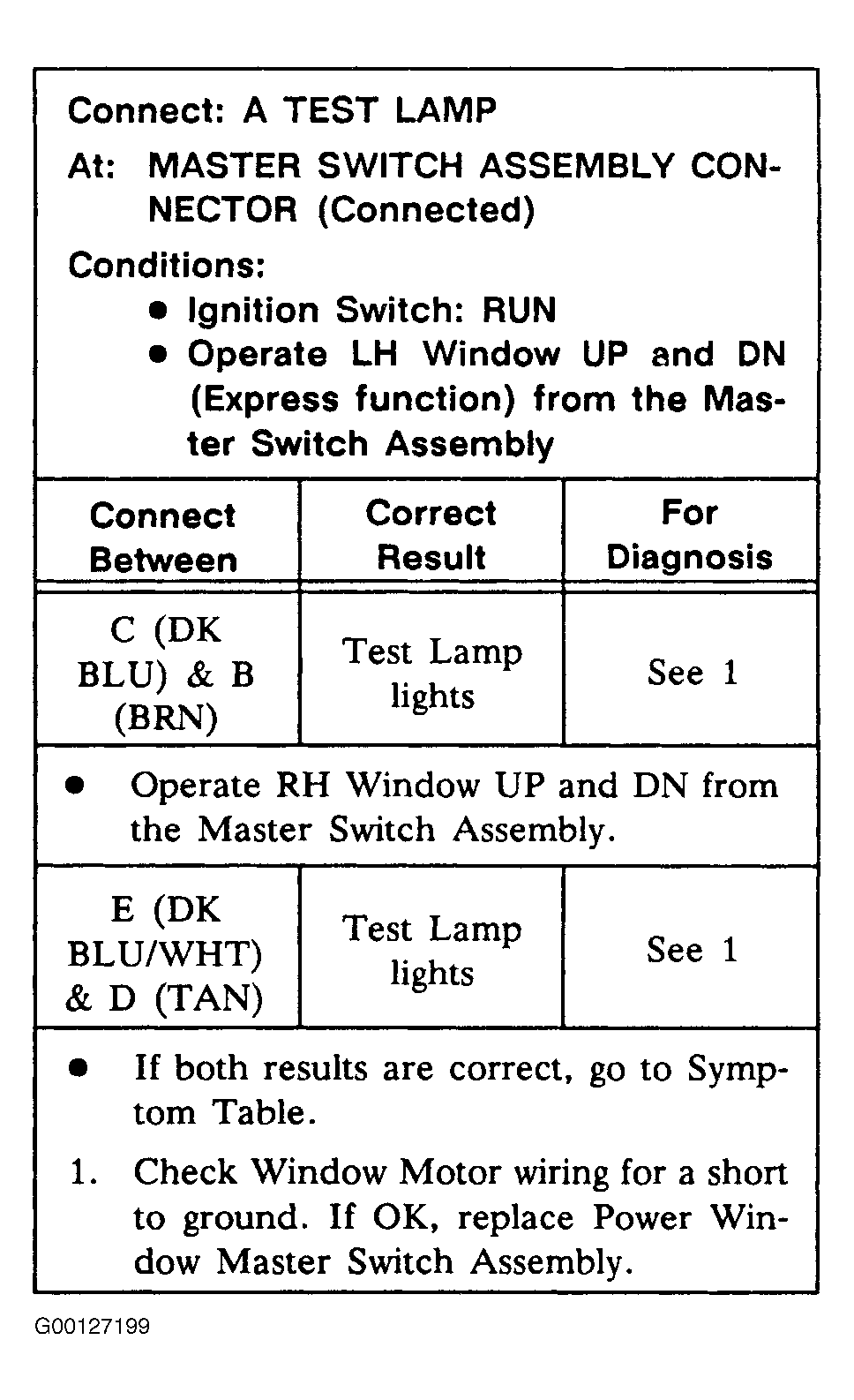

Fig 1: Test B: Master Switch Assembly Test

G00127199

Courtesy of GENERAL MOTORS CORP.
