Test E: Seat Control Assembly Input Test

To perform Test E, see Fig 1 .

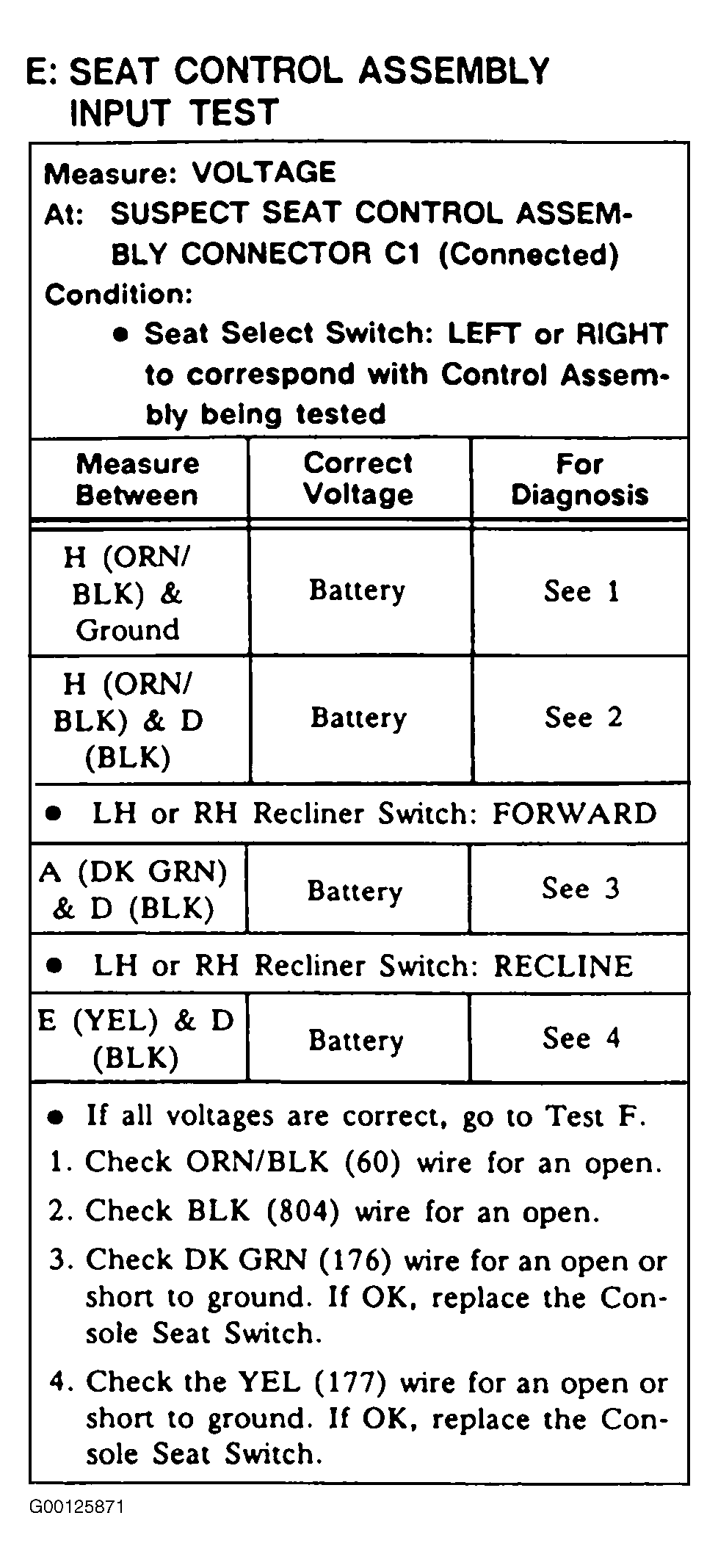

Fig 1: Test E: Seat Control Assembly Input Test
G00125871Courtesy of GENERAL MOTORS CORP.
