Test C: Seat Control Module Test

To perform Test C, see Fig 1 .

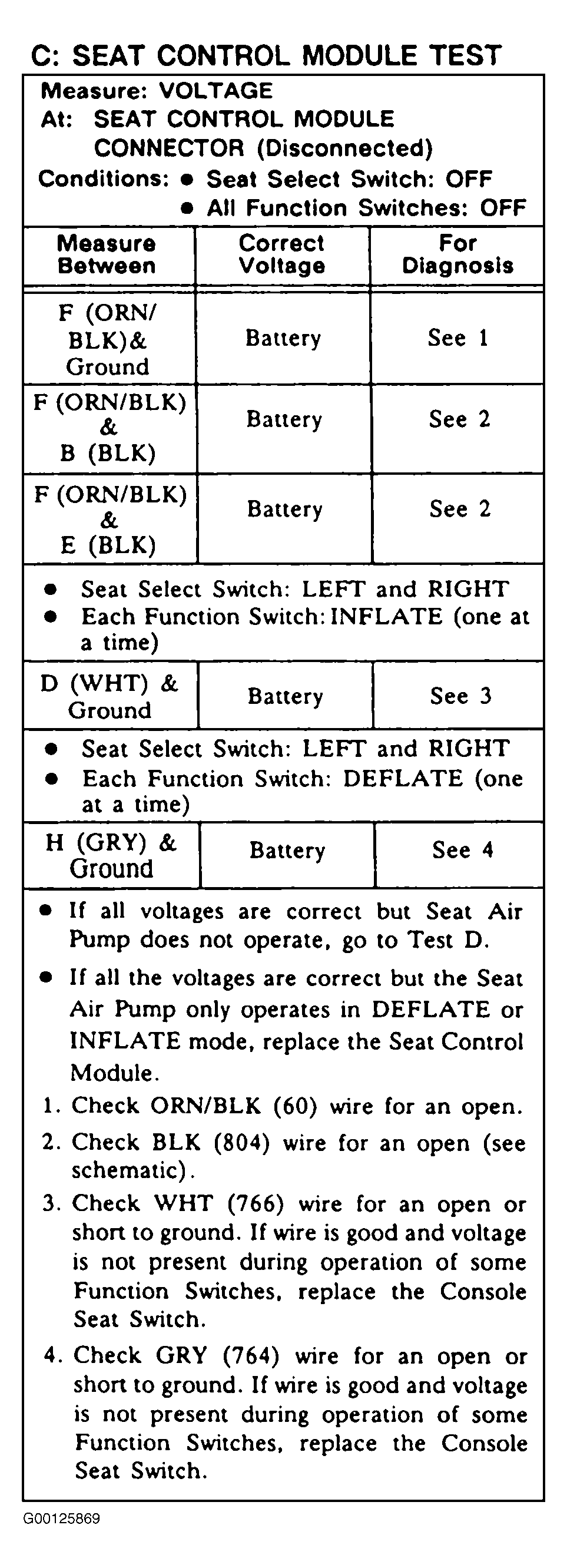

Fig 1: Test C: Seat Control Module Test

G00125869

Courtesy of GENERAL MOTORS CORP.
