Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Engine Compartment Fuse/Relay Blocks | On Firewall. See Fig 1 . |
| Heated Seat Control Module | Under Respective Front Seat |
| Instrument Panel Fuse Block | Behind Left Side Of Instrument Panel, Behind Trim Panel. See Fig 3 . |
| Relay Center | Behind Right Side Of Instrument Panel, Top Of Right Shroud. See Fig 2 . |
| Right Underhood Fuse Block | Center Rear Of Engine Compartment |
| Seat Air Pump Assembly | Front Of Center Console |
| Seat Control Module | Front Of Center Console |
| Seat Recliner Capacitor | Under Respective Front Seat |
| Seat Recliner Motor | Under Respective Front Seat |
| Seat Solenoid Valve Assembly | Under Respective Front Seat |
| C287 (10 Cavities) | Middle Of Right Shroud, Taped To Composite Harness |
| C300 (2 Cavities) | Below Left Front Seat |
| C301 (10 Cavities) | Below Center Console |
| C302 (2 Cavities) | Below Right Front Seat |
| C312 (6 Cavities) | Under Left Front Seat |
| C314 (6 Cavities) | Under Right Front Seat |
| C324 (6 Cavities) | Below Left Front Seat |
| C326 (6 Cavities) | Below Right Front Seat |

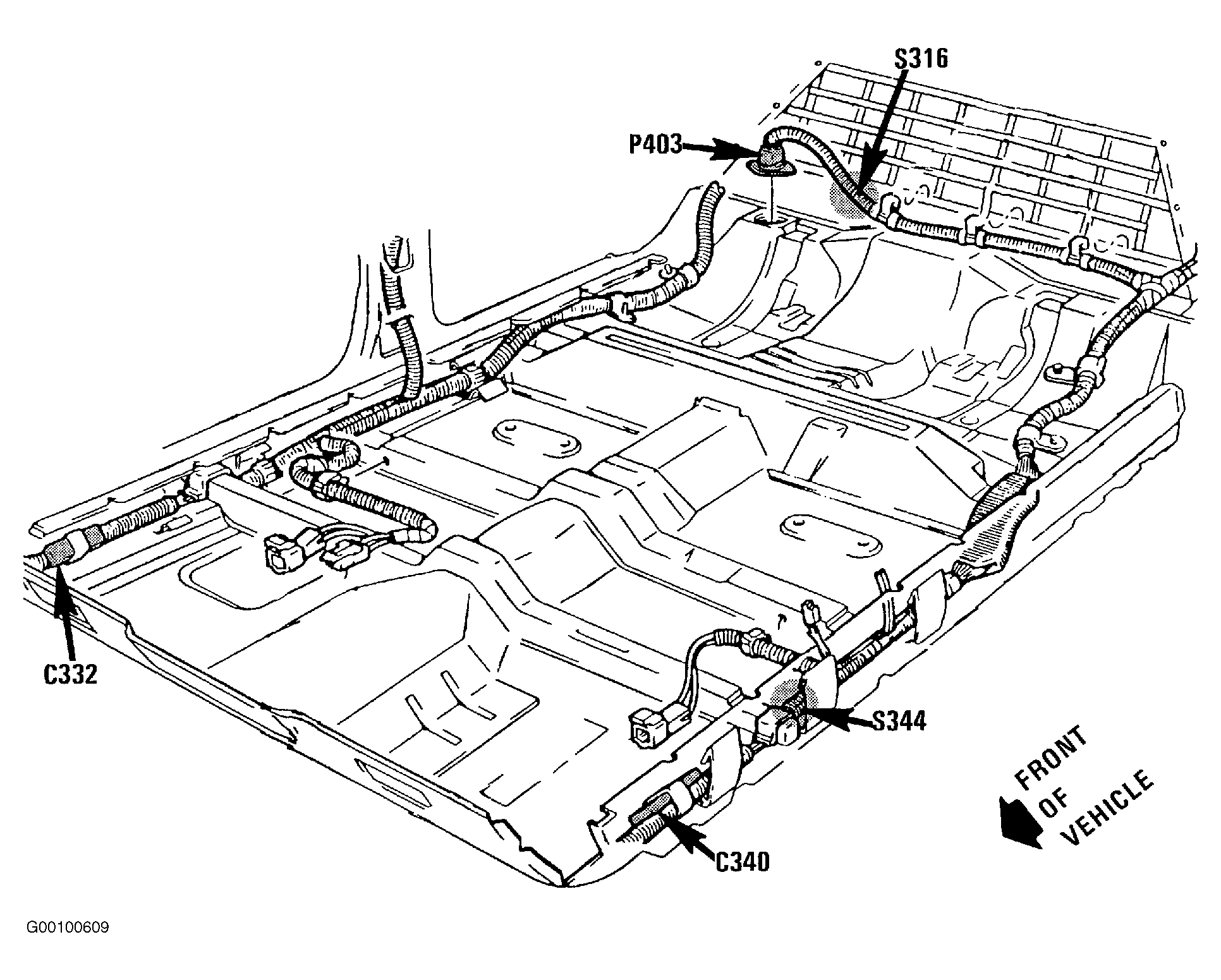

| C332 (10 Cavities) | Right Front Door Sill, Taped To Composite Harness. See Fig 6 . |
| C340 (10 Cavities) | Left Front Door Sill, Taped To Composite Harness. See Fig 6 . |
| G202 | Middle Of Left Shroud. See Fig 8 . |
| G203 | Middle Of Right Shroud. See Fig 7 . |

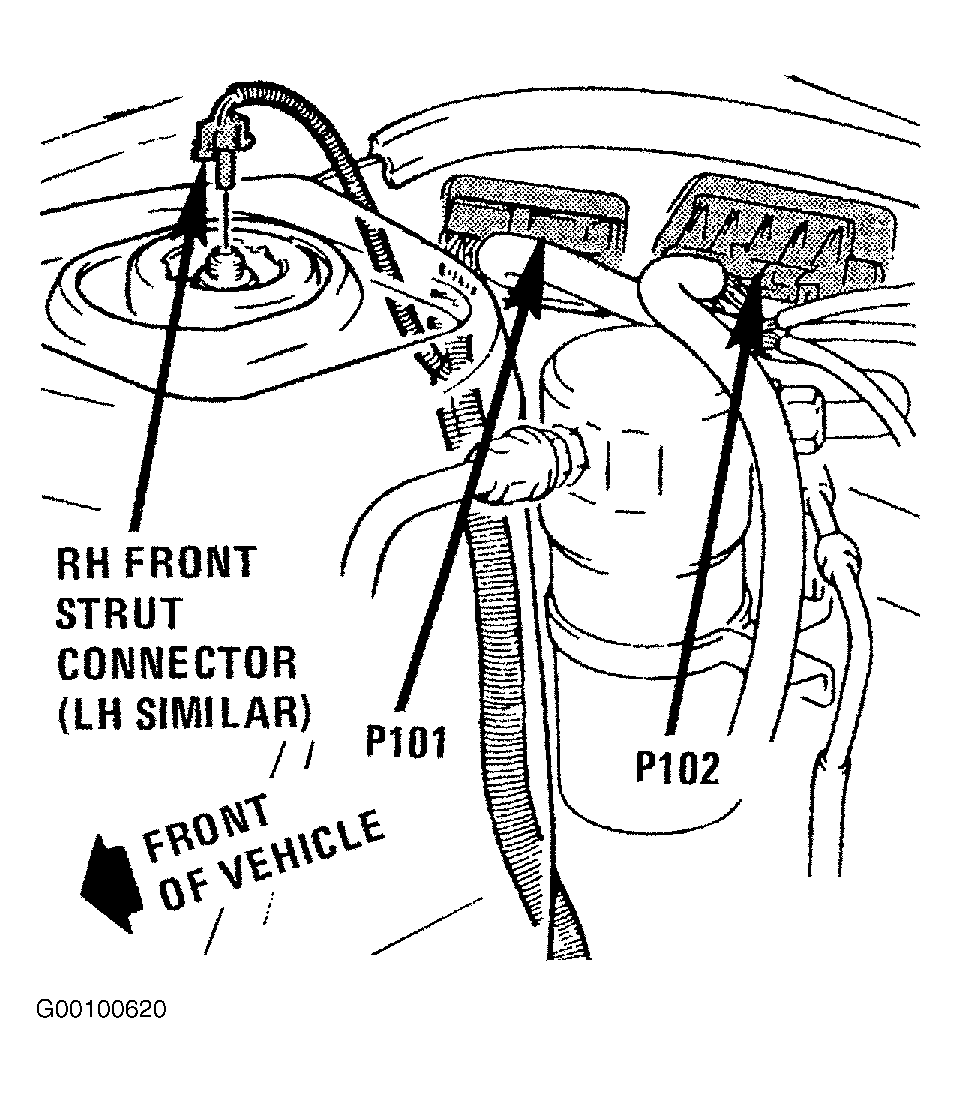

| P101 | Right Rear Of Engine Compartment, Behind Strut Tower. See Fig 5 . |
| P500 | Front Of Left Front Door |
| P600 | Front Of Right Front Door |
| S218 | Composite Harness, Top Of Right Shroud. See Fig 7 . |
| S225 | Composite Harness, Bottom Of Left Shroud. See Fig 8 . |
| S227 | Composite Harness, Top Of Right Shroud. See Fig 7 . |
| S251 | Composite Harness, Bottom Of Right Shroud. See Fig 7 . |
| S253 (IDC) | Composite Harness, Behind Left Side Of Instrument Panel, Behind Instrument Panel Fuse Block. See Fig 3 . |
| S282 | Composite Harness, Top Of Right Windshield Pillar |
| S288 | Composite Harness, Bottom Of Left Shroud. See Fig 8 . |
| S300 | Seat Solenoid Jumper Harness, Below Left Front Seat |
| S301 | Seat Solenoid Jumper Harness, Below Right Front Seat |
| S304 | Composite Harness, Below Center Console |
| S380 | Recliner Seat Harness, Under Left Front Seat |
| S381 | Recliner Seat Harness, Under Right Front Seat |
