Test A: Power Windows Do Not Operate
Test A: Power Windows Do Not Operate
If power windows do not operate, see
Fig 1
.

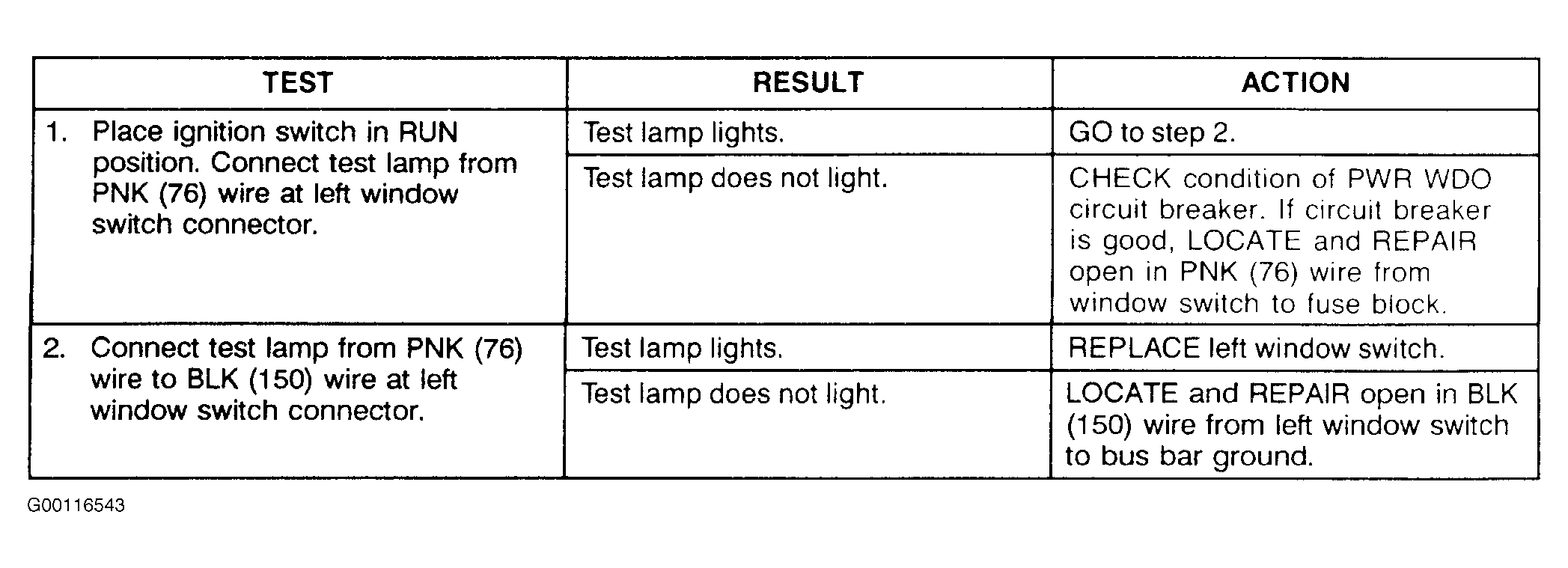

Fig 1: Test A: Power Windows Do Not Operate
Courtesy of GENERAL MOTORS CORP.
