Test A: Power Mirrors Do Not Operate

For test procedure, refer to illustration. See Fig 1 .

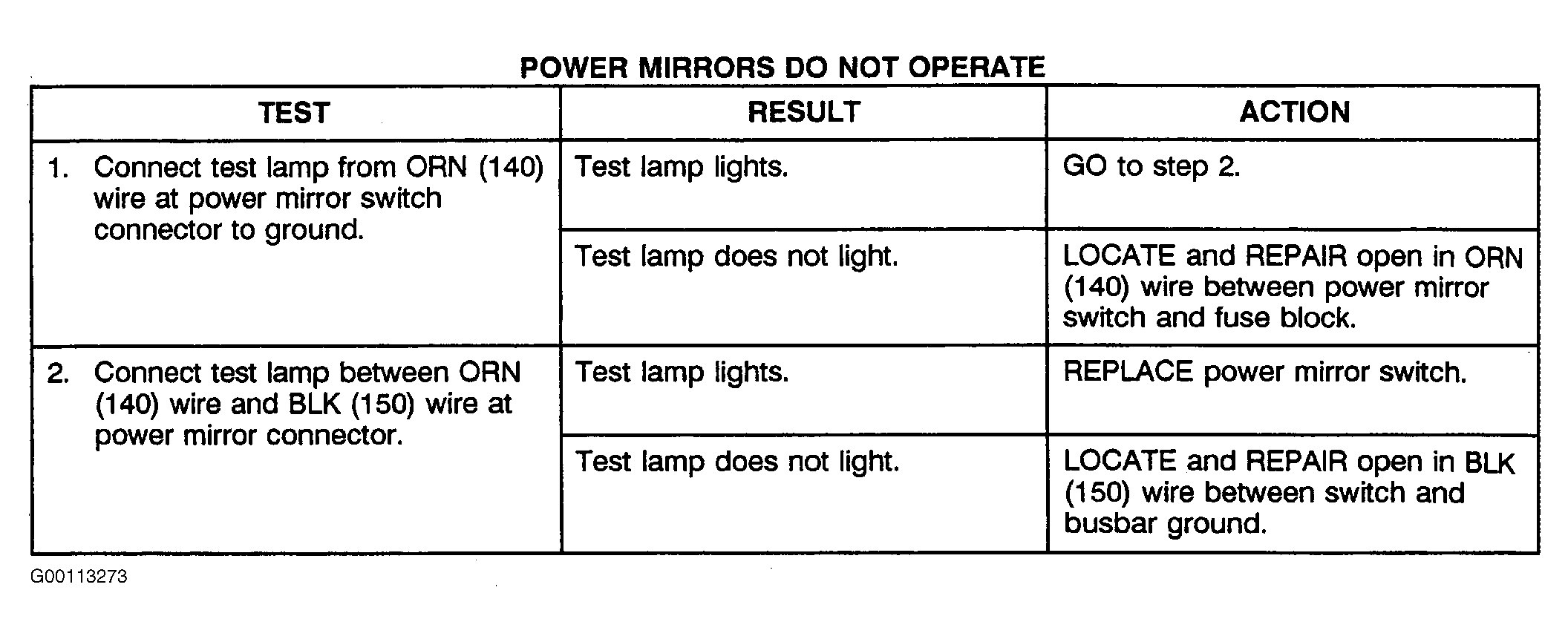

Fig 1: Test A: Power Mirrors Do Not Operate
G00113273Courtesy of GENERAL MOTORS CORP.
