Component Locations

COMPONENT LOCATIONS

Component

Location

Busbar Ground

Left Hand Side Of Instrument Panel. See Fig 1

Fuse Block

Left Hand Side Of Instrument Panel. See Fig 2

Power Mirror

In Respective Door

Power Mirror Switch

Lower Right Hand Side Of Instrument Cluster. See Fig 3

C305

Behind Center Of Instrument Panel. See Fig 3

C310

Right Hand Cowl Side Panel. See Fig 4

C312

Right Hand Cowl Side Panel. See Fig 4

P300

Right Hand Cowl Side Panel. See Fig 4

P301

Right Hand Cowl Side Panel. See Fig 4

P500

Right Hand Cowl Side Panel. See Fig 4

P600

Right Hand Cowl Side Panel. See Fig 4

S306

⁽¹⁾ Behind Center Of Instrument Panel

S312 (1991)

Behind Left Hand Side Of Instrument Panel

S313

⁽¹⁾ Behind Right Hand Side Of Instrument Panel

S314

⁽¹⁾ Behind Left Hand Side Of Instrument Panel

⁽¹⁾	Illustration not available from manufacturer.

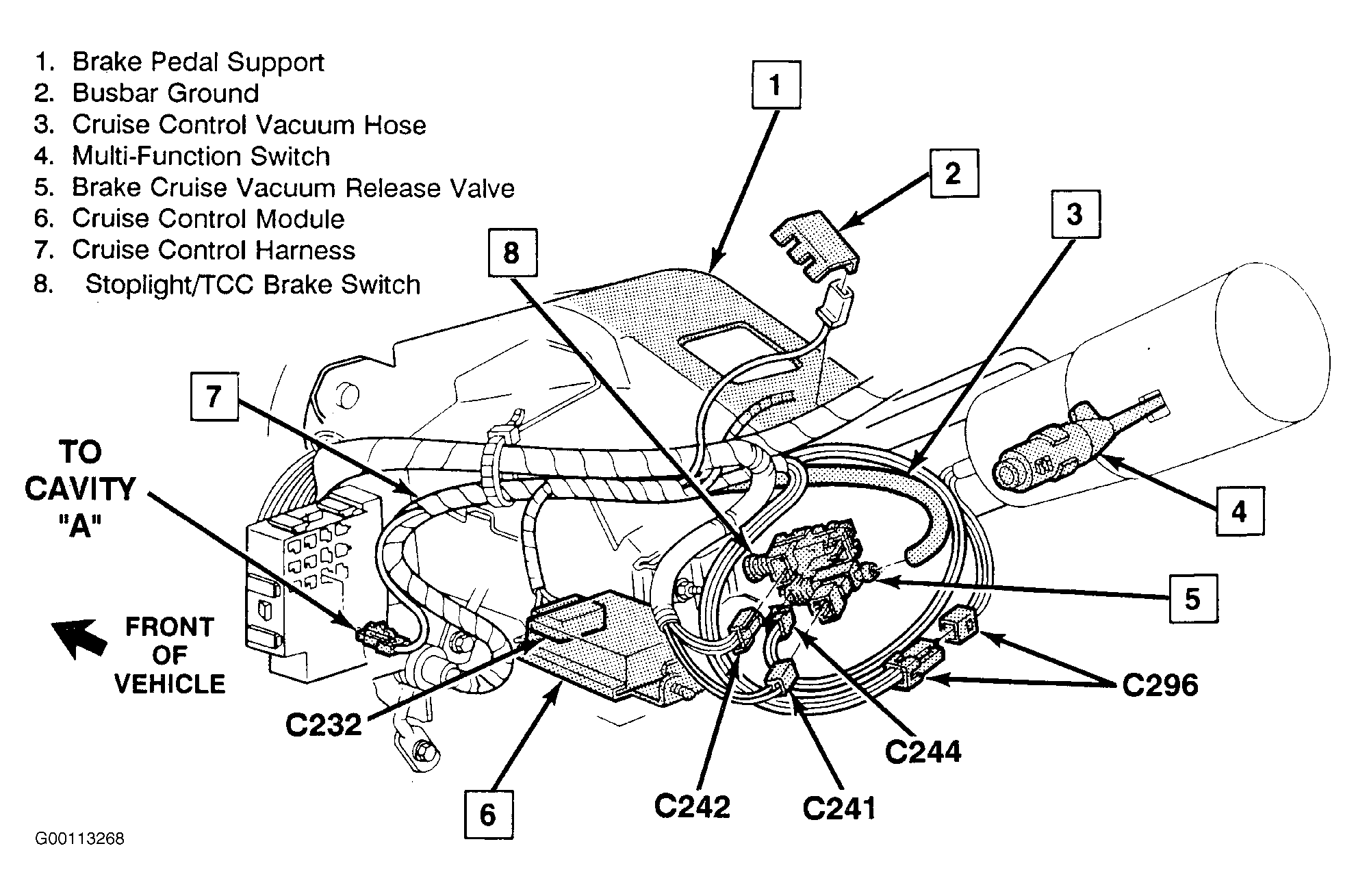

Fig 1: Locating Busbar Ground

G00113268

Courtesy of GENERAL MOTORS CORP.

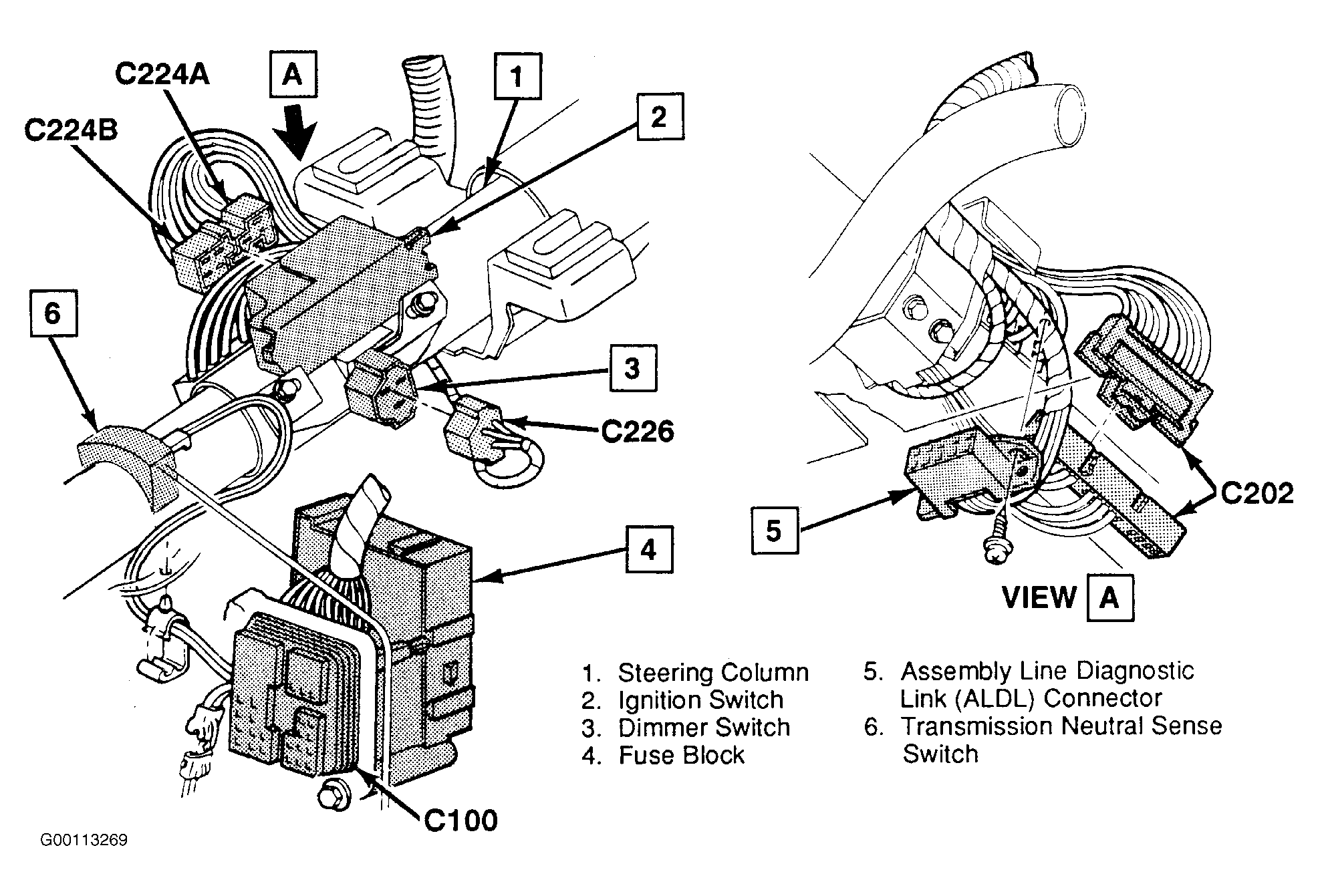

Fig 2: Locating Fuse Block

G00113269

Courtesy of GENERAL MOTORS CORP.

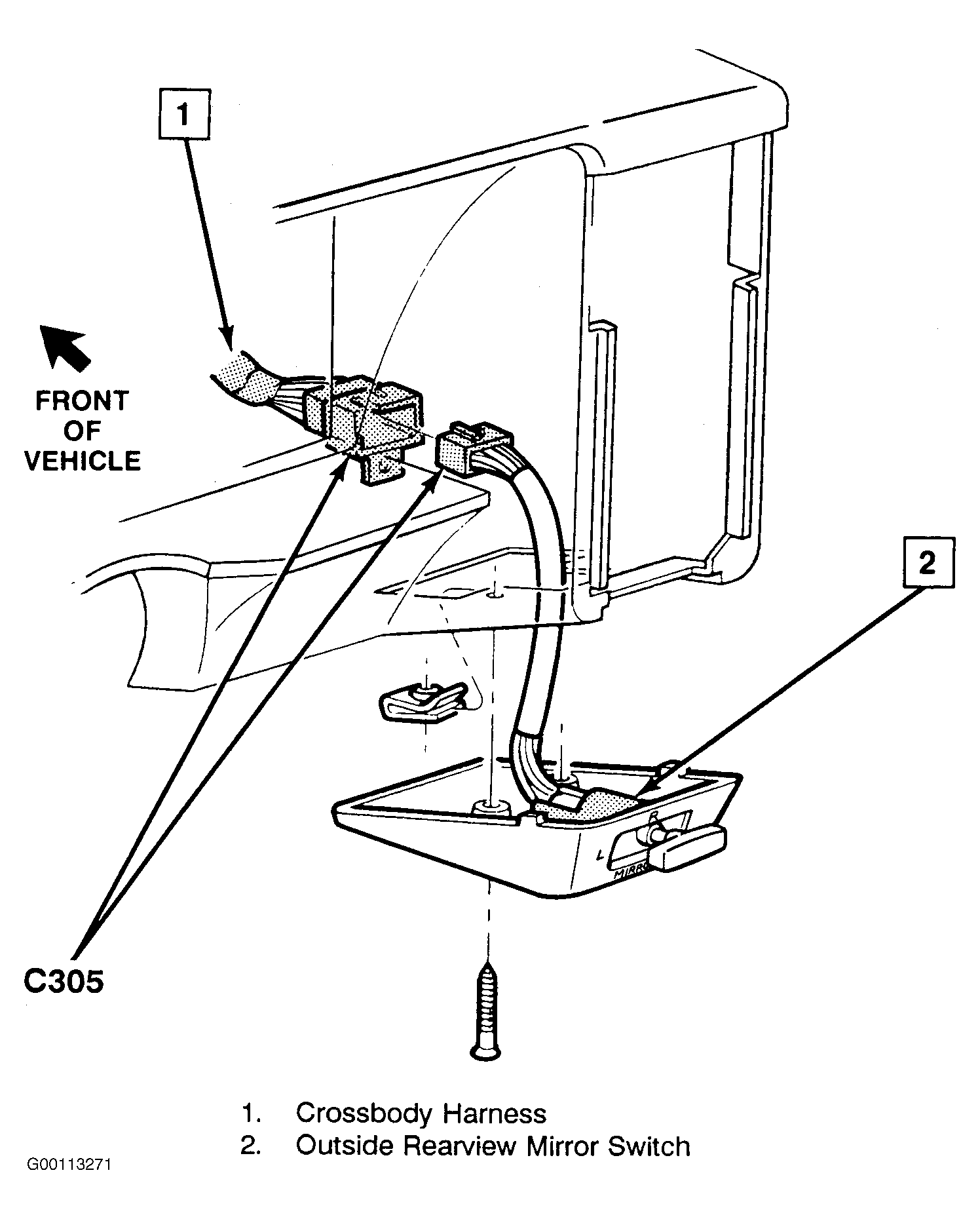

Fig 3: Identifying Outside Rearview Mirror Switch Wiring

G00113271

Courtesy of GENERAL MOTORS CORP.

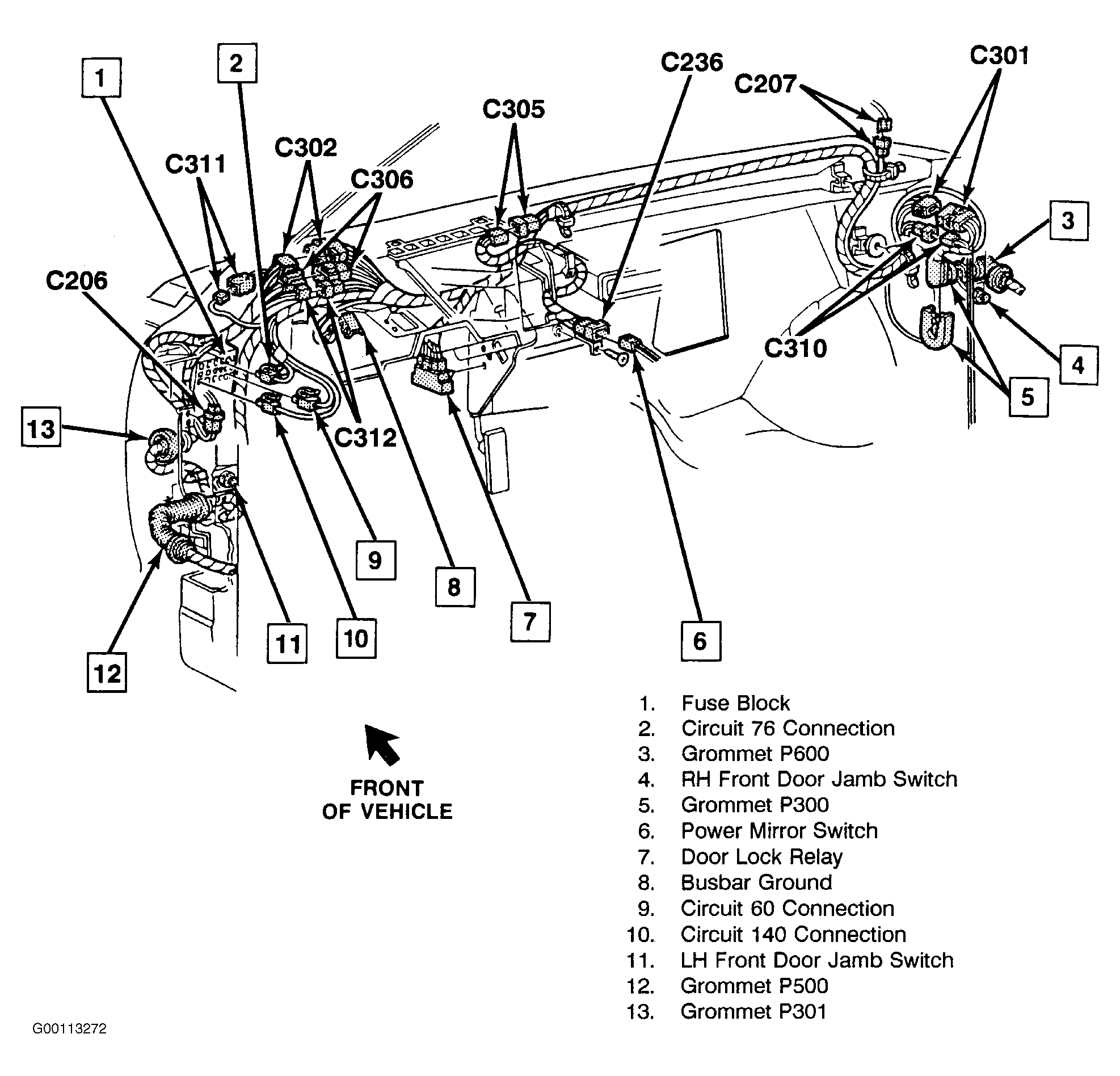

Fig 4: Identifying Body Wiring

G00113272

Courtesy of GENERAL MOTORS CORP.
