Oldsmobile
>>
1990
>>
Toronado Trofeo, 4T60/ME9
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - BCM
>>
BCM Trouble Code Charts
>>
Serial Data Circuit Multiple Intermittent Data Codes
Serial Data Circuit Multiple Intermittent Data Codes

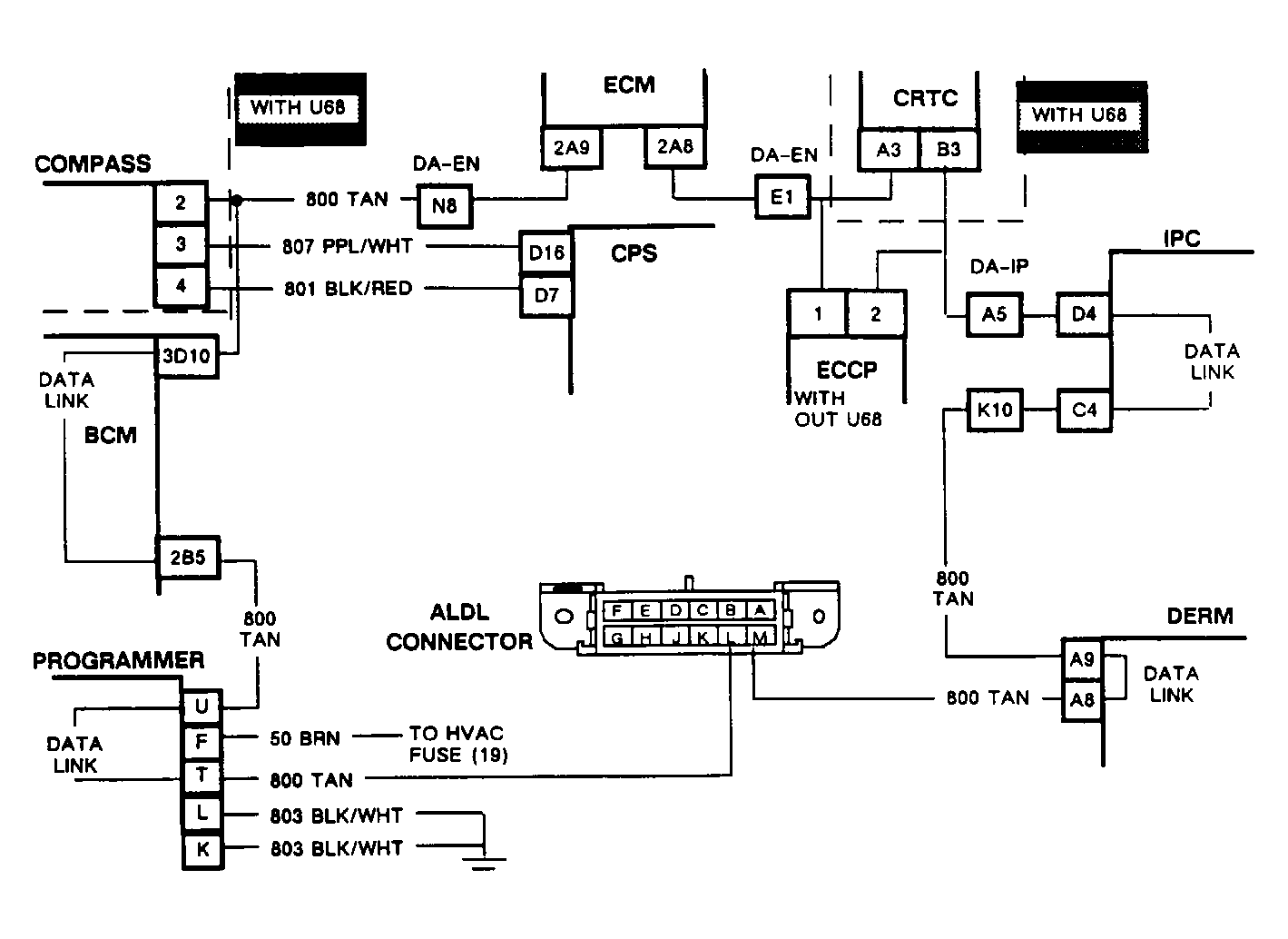

Fig 1: Circuit Diagram Serial Data Circuit Multiple Intermittent Data Codes

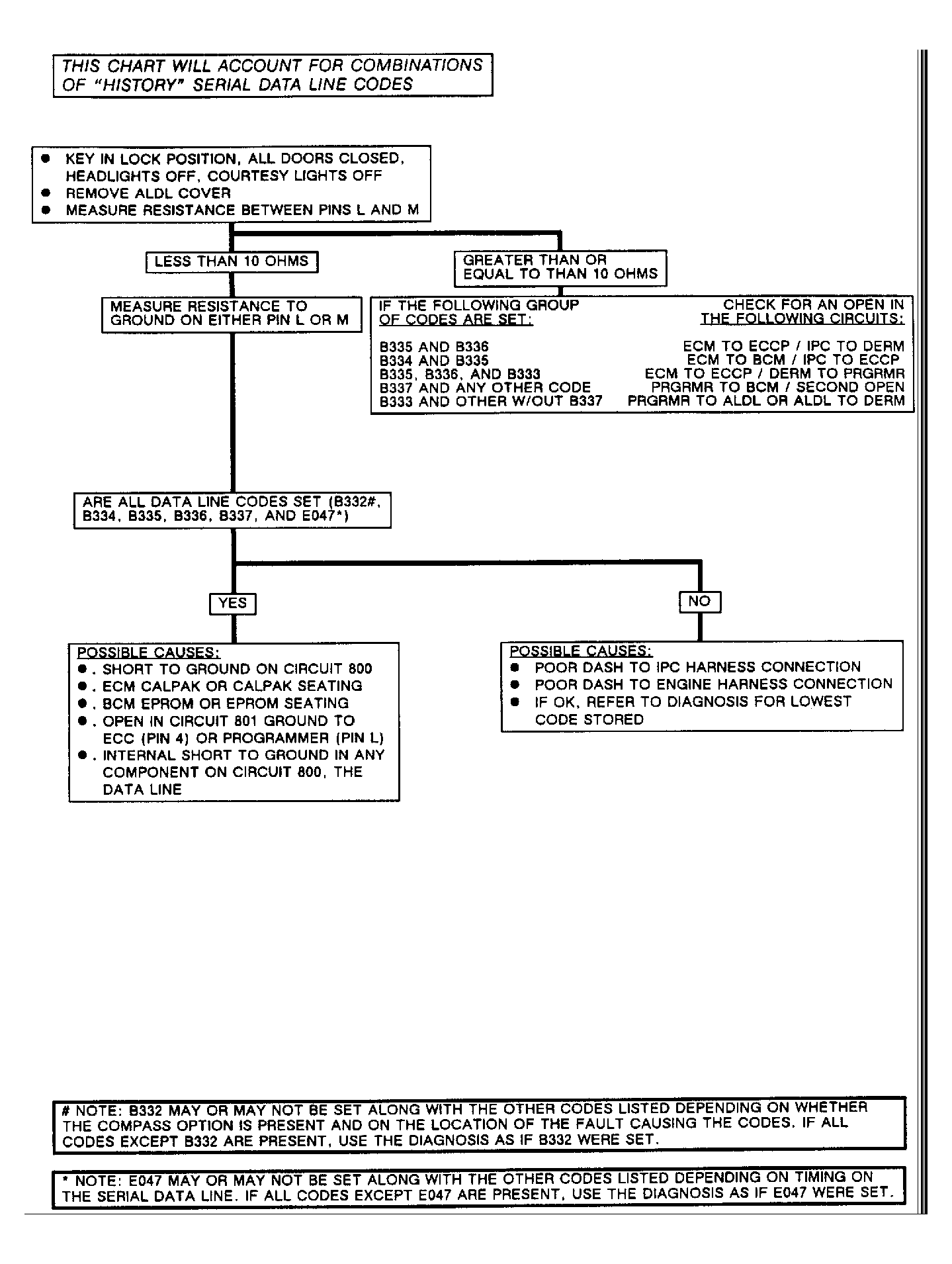

Fig 2: Flow Chart Serial Data Circuit, Multiple Intermittent Data Codes
