Code E48: EGR System Fault (2 Of 2)

WARNING: This page is about a different car, the 1990 Cadillac Fleetwood and 1990 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Test Number 1)  With engine at idle, EGR solenoid should be energized. Test light across EGR solenoid terminals should be lit.

Test Number 2)  Check ECM's ability to turn solenoid off.

Fig 1: Code E48: Circuit Diagram
G90E17263

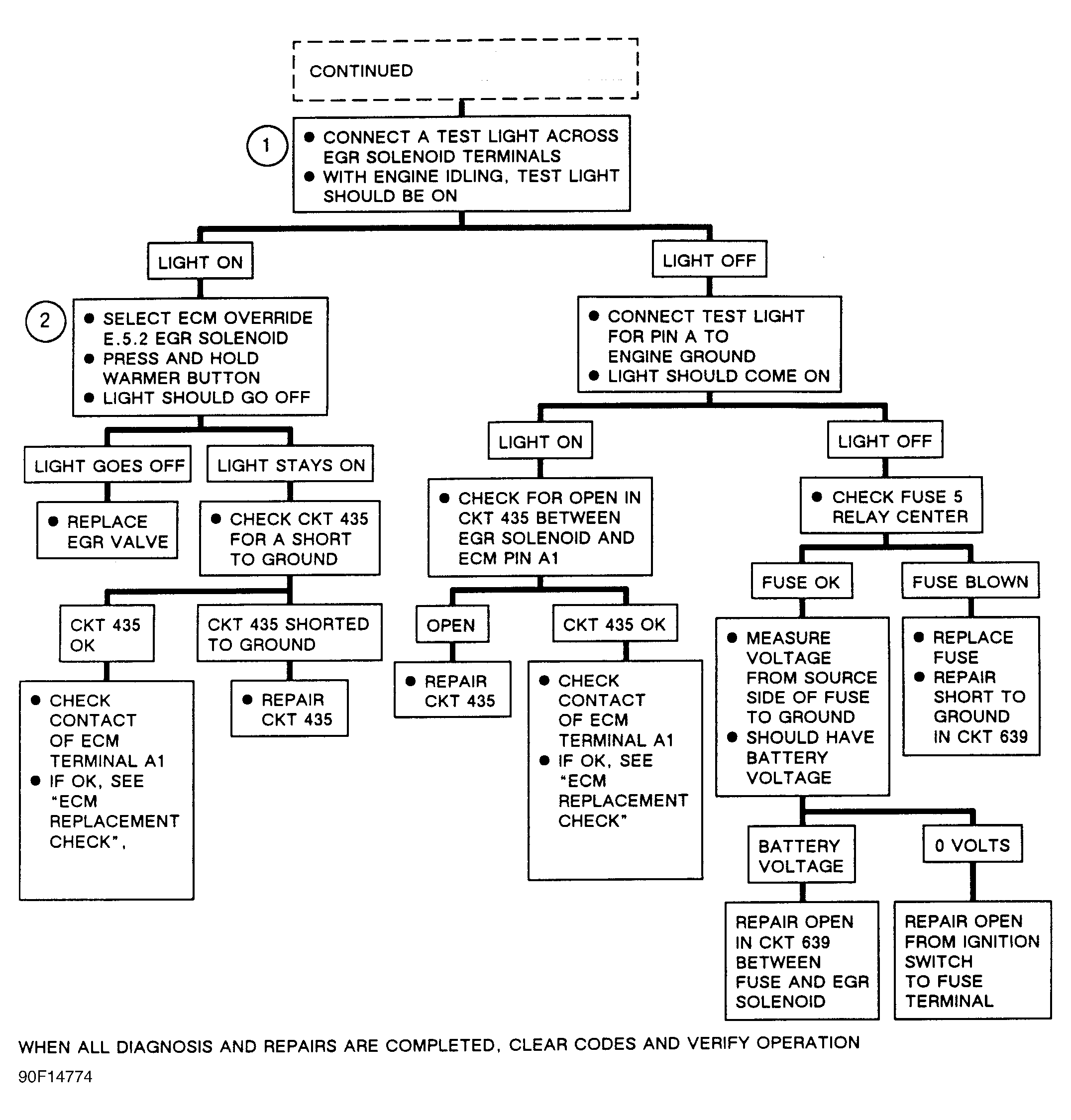

Fig 2: Code E48: Flow Chart (2 of 2)
G90F14774
